Product Specifications
| Prod Model: |
MAISO-3038 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
370*340*1570mm (L*W*H) |
| Weight: |
90 Kg |
| Water Inlet Pressure: |
5~30 |
| Flow Range: |
15~340ml/Min ;20~460ml/Min |
| Blood Level Detector: |
Ultrasonic Sensor |

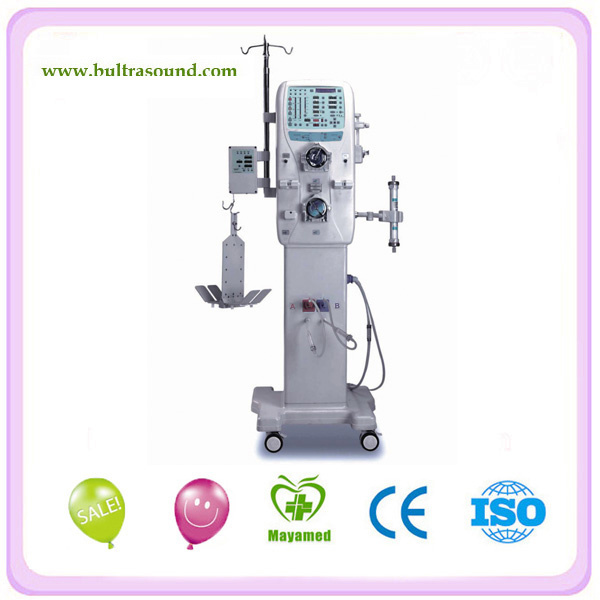

Product Description
Product Features:
· Press-key control panel with liquid crystal numberal tube display.
· Automation: Self-test, rinse, disinfection, hot disinfection, ISO UF, shutdown, etc.
Automatically start treatment once blood flow sensed. "
· Use with dialysis fluid of various formulas (acetate & bicarbonate).
· Single & Double needle dialysis.
· Double pumps: Blood pump and double-hose pump, providing more treatment options;
Compatible with blood lines of different diameters. "
· Dialyzate flux linearity adjustable (300~800mL/min).
· Support bedside treatment.
Safety Guaranteed:
Audible & visible alarm with warning messages & troubleshooting.
· Blood flow monitoring.
· Arterial and Venous pressure monitoring.
· Transmembrane pressure(TMP) monitoring.
· Air Monitoring:
Air bubble detector using infrared sensor; Blood level detector using ultrasonic sensor. "
· Blood leak monitoring.
· Water way entirely aparts from electric way.
· Dialyzate temperature is selectable between 35 and 39
· Conductivity is controllable.
· Heparin pump timing for safety and convenience.
General Data
· Dimensions: 370X340X1570mm (LxWxH)
· Weight: 90 Kg
· Water inlet pressure: 0~0.6MPa
· Water inlet temperature: 5~30
· Ambient temperature: 10~30
· Relative Humidity ≤ 70%
· Electric balance range: 0~9Kg(± 5%)
Extracorporeal Circuit
· Arterial pressure monitoring:
Display range: -300~+300mmHg (± 10mmHg)
· Venous pressure monitoring:
Display range: -50~+300mmHg (± 10mmHg)
· TMP range: -100~+600mmHg (± 20mmHg)
· Blood pump:
" Flow range: 15~340mL/min (φ 6mm)
20~460mL/min (φ 8mm)"
· Double-hose pump flow: 20~150mL/min
· Blood level detector: Ultrasonic sensor.
· Air bubble detector: Infrared sensor.
Threshold of reaction: Single air bubble of 200 μ I
Exists when blood flux is 200mL/min"
· Heparin pump:
Delivery range: 0~10mL/hr (± 5%) Accuracy: 0.1mL/hr
Injector size: 10/20/30mL, 20/30/50mL (optional)"
