Product Specifications
| Prod Model: |
B03 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

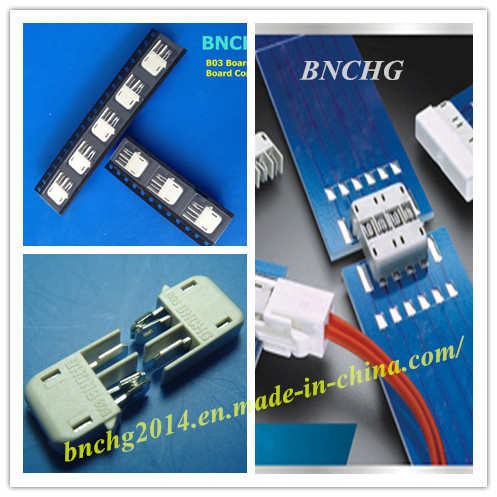

B03 Hermaphroditic Board to board SMT quick disconnect tyco connectors
Quick Details
Place of Origin: Zhejiang China (Mainland)
Brand Name: BNCHG Model Number: B03
Application: PCB, board-to-board applications.
Gender: Female Pin Number: 2P/4P/6P
Rated Voltage: 125V Rated Current: 6A
Operating Temperature Range: -40° C to +105 ° C
QualityControlSystem: ISO9001: 2008
Certificates: VDE, CE, S, CQC, RoHS
Feature: Can be articulated from 90 to 180 degree
Packaging & Delivery
Packaging Detail: By standard export carton
Delivery Detail: 5-10days after receiving payment
Specifications
Hermaphroditic Board to board SMT quick disconnect tyco connectors
1. CQC, , S,
2. Pack in reel
3.100% test before delivery
Product Introduction
1. It can be used to support 18-22AWG ( 0.3 to 0.9 mm ) strands of wire diameter, material using press-fit type tin copper terminal and has a 94V-0 flame retardant thermoplastic shell value.
2. The plug connector and the plate seat connector used and can provide active locking function, ensures a secure connection.
3. With the LED lighting application continuously high speed develops, manufacturers committed to the development of installation and maintenance cost lower lighting system solutions. The introduction of non polar plug and socket connector increases the lines on the board function, to provide customers with a complete set of connectivity solutions, which can quickly, flexibly connected lighting module.
Application
The Hermaphroditic Blade and Receptacle connector is a new SMT connector and is intended for use with in-line board-to-board applications.
LED lighting modules
Incandescent lighting strips
Channel lettering
MT Poke-In Lighting Connector push in wire connectors
Key Feature
Available in 2, 4, and 6 positions
Connector mates to itself
Single part to be stocked andplaced onto PCB per position
Connector mates and unmates horizontally and vertically
Connector can be articulated from 90° To 180°
Tape and reel packed for high speed SMT processes
Low profile flat surface is compatible with SMT and reflow processing
Rounded corners to minimize shadowing
Redundant SMT pads
Solder pad footprint
