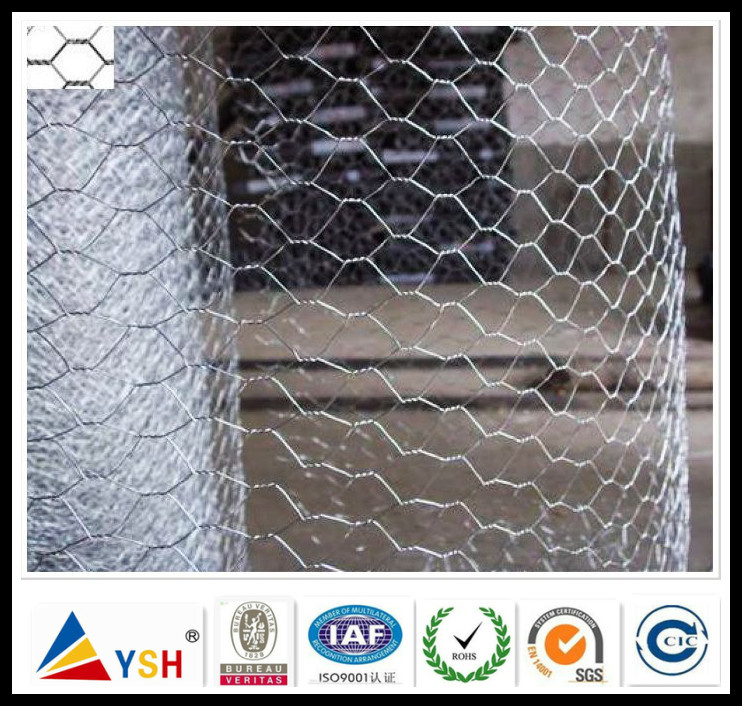

Hexagonal Wire Netting Fence

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Diameter:	0.5-4mm
Width:	0.5-1.8m
Mesh:	1/4''-3''
Surface Treatment:	Galvanized
Material:	Galvanized Iron Wire
Application:	Window Curtain
Weave Method:	Positive and Negative Twist
Weave Technique:	Twill Weave

Product Description

Hexagonal Wire Netting, Chicken Netting, Bird Netting, Animal Netting

A. Company profile
Hebei Anping Yong Sheng Wire And Netting Making Co., Ltd was established in 1996, We are located in anping county, Hebei Province, close to Beijing city and Tianjin port. Have more than 100 workers, approved by ISO9001: 2008. We specialize in designing, manufacturing and exporting of metal mesh fence, woven mesh, welded mesh, perforated metal sheet, razor barbed wire, galvanized wire as well as other metal products, export about 120containers / month.

B. Product brief introduction
Galvanized hexagonal wire netting / Pvc coated hexagonal wire netting
Material: Low carbon steel wire, galvanized wire, 304 304L 316 316L stainless steel wire, copper wire, etc.
Wire diameter: 0.4 mm to 2.1 mm
Mesh size: 3/8" (10mm) to 4" (100mm)
Roll height: 500mm to 2000mm
Roll length: 10m, 30m, 50m, 100m, 1000m
Finish: Pvc coated, galvanized.

C. Supply capability
Output/month: 20, 000 rolls
MOQ: 200 rolls
Delivery time: 20 days for 1x20ft container.

D. Packing:
1) shrink film+ label (customer's logo is ok )
2) water-proof paper+ shrink film+ label
3) water-proof paper+ shrink film+label, then incardboard carton
4) water-proof paper+ shrink film+label, then in pallet.

Galvanized hexagonal wire netting
mesh			Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16

Note: 1.) The above tolerance comply with standard EN10223-2:1997;  2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M
We also offer other specifications you need
