Hexagonal Wire Netting / Stone Netting
Product Specifications
| Prod Model: |
XL-FY853 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh Size: |
60*80, 80*100, 100*120mm |
| Wire Diameter: |
2.0-4.0mm |
| Hole Shape: |
Hexagonal |
| Application: |
Construction Wire Mesh |
| Material: |
Iron Wire |
| Surface Treatment: |
Galvanized |
Product Description

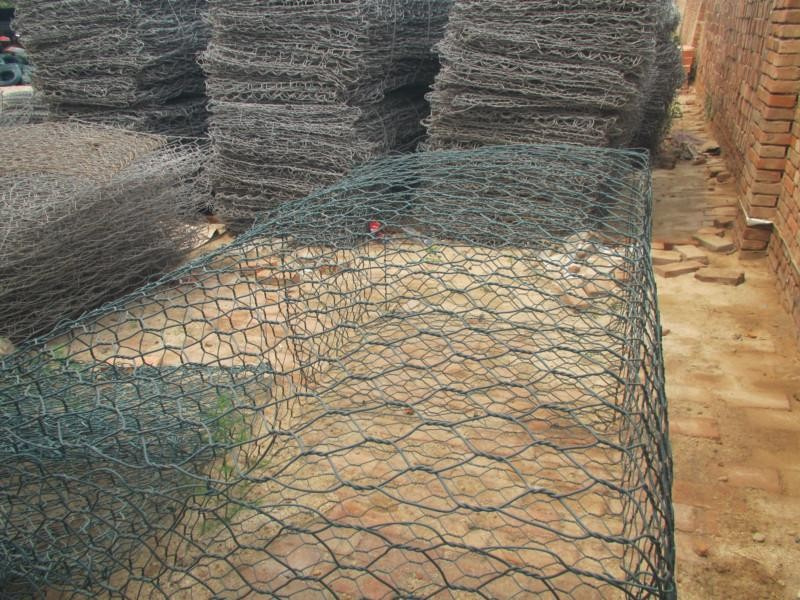

Hexagonal Wire Mesh
Materials: High quality low carbon steel wire. Stainless steel wire.
Weaving and characteristics: Reverse twisted. Galvanizing after weaving or galvanizing before weaving, it is divided to electroplate galvanized. Hot-dipped. Plastic-coating. Stainless steel. PVC coating, etc. It has the characteristics of corrosion-resisting and oxidation-resisting.
Uses: Widely used in building. Oil. Chemical industry. Bread, plant protection. Food processing's reinforce. Guard and heat-keeping, for example, make net cast, stone cage. Insulated net wall. Boiler cover. Poultry fence. Etc.
We can produce according to the customer's request.
|
Gabion Size(m) |
Mesh Model |
|
|
8x10 |
6x8 |
|
Length |
Width |
Height |
Gal. or PVC coated |
Gal. or PVC coated |
|
|
Mesh wire diameter |
Gal. weight |
Mesh wire diameter |
Gal. weight |
|
2m |
1m |
1m |
2.7mm |
>245g/m 2 |
2.0mm |
>215g/m2 |
|
3m |
1m |
1m |
Selvedge wire diameter |
Gal. weight |
Selvedge wire diameter |
Gal. weight |
|
4m |
1m |
1m |
3.4mm |
>265g/m2 |
2.7mm |
>245g/m2 |
|
6m |
1m |
1m |
Lacing wire2.7mm |
Lacing wire2.0mm |
Opening
(mm) |
Wire Diameter
(mm) |
Wire Diameter(PVC Coated)
Inner/outside(mm) |
Strands |
|
60x80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
3 |
|
80x100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
3 |
|
80x120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
3 |
|
100x120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
3 |
|
100x150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
3 |
|
120x150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
3 |
Anping County Xinlu Wire Mesh Products Co., Ltd, . Is located in Anping county which well known of "The hometown of wire mesh in China", emerged from Anping mine screen mesh factory in 1994 with a founding of 1.5 million RMB. It has a comparatively long history, a large scale production rate, and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.
Our company produce and sell as following: Johnson specialty screens, Water well screen, Wedge wire screen, Wedge wire slot tube, Wire wrap screens, Strainer pipe, Spiral screen tube, Rod based continuous slot screen pipe, Wire-wrap screen pipe, Mine screen mesh, Screen cylinders, Oil screen tube, Drilling well screen, Reverse rolled screen tube, V-ee wire screen, screen cylinders, sand control well screen, water filter, screen nozzle, water & gas strainer, filter element, stainless steel screen, low carbon steel screens, welded wedge wire screens, screen filter, rotary filter, various kinds of ore screen meshes, sieve bend, arc screen, wire wrapped panel, flat wedge wire panel, vibrating sieve screen plate, wire wrapped liner, johnson scren plate, continuous slot screens, Gabions, chain link fence, fence netting, welded wire mesh, stainless stell wire mesh, Galvanized wire, Galvanized wire mesh, crimped wire mesh and wire mesh, Mesh belt conveyor, Window Screening Series, Metal jewelry products and so on. The products are used in drilling well / pump, the trades, such as ore choosing, petroleum, chemical industry, electron, transportation, plastics, food, architecture, traffic, Musical Instruments, safety, etc. Our products can be seen everywhere in China, as well as African countries, Middle East and the regions of Southeast Asia.
