Jiangsu JinFangYuan CNC Machine Co., Ltd. >> HFC CNC Laser Cutting Machine (HFC-3015 HFC-4020 HFC-6020)

HFC CNC Laser Cutting Machine (HFC-3015 HFC-4020 HFC-6020)

Name: HFC CNC Laser Cutting Machine (HFC-3015 HFC-4020 HFC-6020)
Brand: China-Manufacturer-Directory.com
SKU: 620196524
Availability: InStock
Rating: 4.9 (95 reviews)

Supplier:	Jiangsu JinFangYuan CNC Machine Co., Ltd.
Price:	US $ 250000.0000/Set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HFC-3015 HFC-4020 HFC-6020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1500*3000:	1kw 2kw Ipg Laser Source
Application:	Machinery & Hardware
Type For Cutting Machine:	CNC Cutting Machine
Automation:	Automatic

Product Description

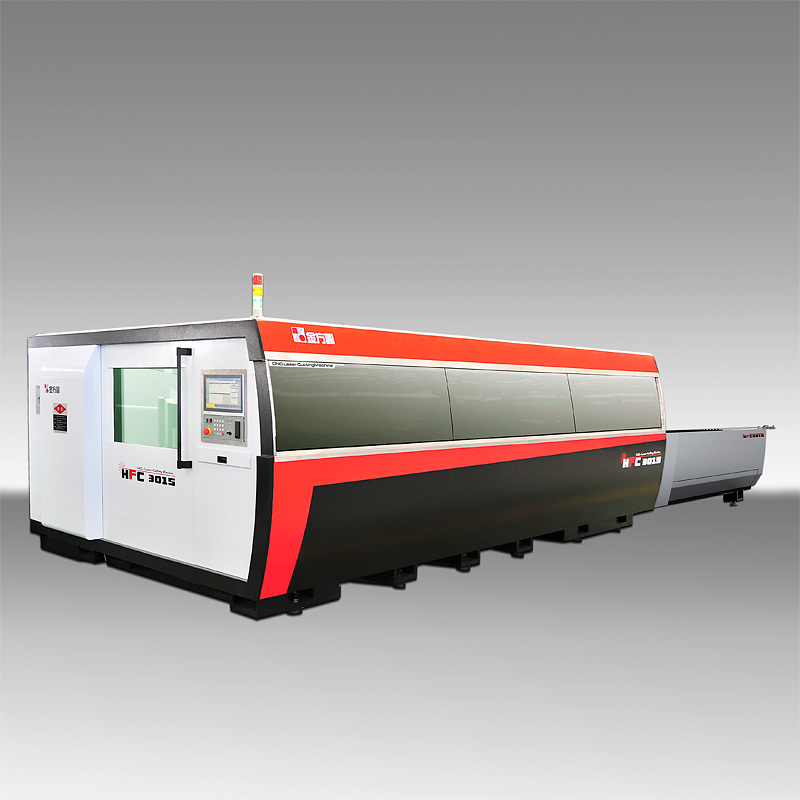

HFC3015 Series CNC Fiber Laser Cutting Machine
Consists of:
1)    IPG 2000W fiber laser generator
2)    Shuttle worktable
3)    Beckhoff CNC system
4)    Water cooler for laser generator
5)    Imported high pressure laser cutting head for fiber laser cutting
6)    Capacitance cutting head height seneoring system
7)    Imported auto-program software specialized for laser cutting machine
8)    Dust collector
9)    Gas source precise filter system
10)   High pressure cutting pipeline
11)   Three cutting assist gas auto-shift system

	Item	Specification	Unit
1	Max. Cutting Size	3000×1500	mm
2	Stroke of X Axis	3050	mm
3	Stroke of Y Axis	1550	mm
4	Stroke of Z Axis	120	mm
5	Max. Feeding Speed (Resultant Speed)	140	m/min
6	Cutting Accuracy	±0.1	mm/m
7	Rated Worktable Loading Weight	900	kg
8	Rated Laser Generator Power	2000	W
9	Cutting Thickness	Carbon Steel: 0.5-14	mm
9	Cutting Thickness	Stainless Steel: 0.5-8	mm
10	Input Power	60	kVA

Jiangsu Jinfangyuan CNC Machine Co., Ltd., as the national high-tech enterprise, is the national technology progress example and torch & sparking program implement key company; Meanwhile, it is awarded the AAA credit enterprise certificated by Jiangsu Commercial Bank, it is also the biggest base for falicity manufacturing base for processing metal sheet domestically. The company has obtained both ISO9001 quality assurance system certificate and CE certificate. The products have awarded the title of "China Top Brand". In the year of 2008, our products awarded th tiltle of "China Famous Brand".

Main products: HRT, MT, VT and ET Series of CNC Punch Machine, LC Series CNC Laser Cutting Machine, MCZ Series Machine for Bus, PL Series CNC Laser-Punch Combined Machine and APSS CNC Punch-Shearing Combined FMS and AMCP-120 CNC Automobile Carling FMS.

All the domestic and international guests are warmly welcomed to our company for mutual understanding, friendship enhancing and business cooperating.
