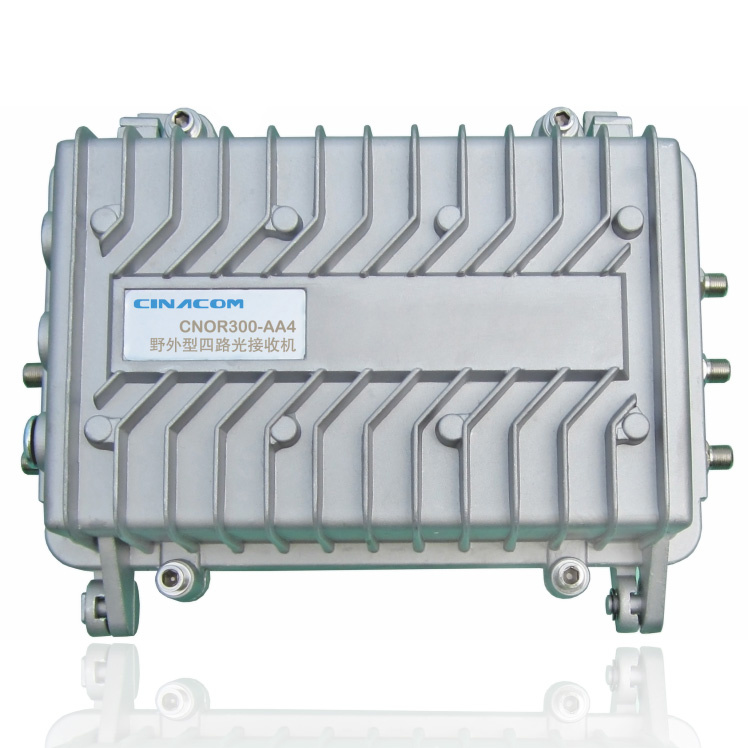

CINACOM (Shanghai) Communication Technology Co., Ltd. >> Hfc Network Optical Node for Cable Television

Hfc Network Optical Node for Cable Television

Name: Hfc Network Optical Node for Cable Television
Brand: China-Manufacturer-Directory.com
SKU: 758630525
Availability: InStock
Rating: 4.5 (127 reviews)

Supplier:	CINACOM (Shanghai) Communication Technology Co., Ltd.
Price:	US $ 60-130/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CNOR300-A4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Wavelength:	1290~1570 Nm
Receiving Power:	-7~+2 dBm
Flatness:	±0.75 Db
Output Level:	104 Dbuv
Certification:	RoHS
Condition:	New
Type:	TV & Broadcasting Device

Product Description

CNOR300 - AA4 outdoor optical receiver products, 4-way output level, are adapted to HFC transmission network. The Pproducts adopt luxury and beautiful housing design with surface passivation treatment and good heat dissipation performance. The unique surge suppression circuit improves the reliability of the machine. CNOR300 - AA4 output level is 104 dbuv.

Product Feature
1. 1 GHZ mainboard design, sharing platform, easy to upgrade
2. High level, low distortion, low power consumption
3. Potassium arsenide (GaAs) synthesis technology.
4. Wide range of power receiving - 7 ~ + 2 DBM
5. Flexible configuration combinations ( photoelectric module/PIN+IC+Amplifier Module)
6. Unique anti surge circuits and good lightning protection electric circuit with high reliability
7. Unique output combination(optional branch or distribution)(2, 3, 4 ports can be combined)

Superior switching power supply

Technical Index

Item	Unit	Performance Index
input wavelength	nm	1290~1570
receiving power	dBm	-7~+2
return loss	dB	≥45
flatness	dB	±0.75
optical adapter		SC/APC or FC/APC
power consumption	W	26
the maximum current pass	A	12
impulse withstand voltage	KV	5
output level	dBuV	104 (-1dBm receiving)
work temperature	ºC	-25~+55
storage temperature	ºC	-40~+65
supply voltage	V	AC60V/50Hz,AC220V/50Hz
size	mm	280×213×115
weight	Kg	2.3

Shanghai Cina Communication Technology Co., Ltd is established by Taiwan Cina Investment Management Cooperation; Technology originated from Japan' S Morita Electronic Industry Co., Ltd.

Our experienced team at Cina Communication has a deep understanding of the communication industry trend in China. We have also combined the best of quality control methods from Japan, Taiwan' S management style and China' S innovation, which reduce the cost of products.

CINACOM upholds the value of offering its clients the most sincere service. We innovate to seize more market opportunities, and absorb talents to ensure our quick expansion.

CINACOM specializes in the development and manufacturing of high performance CATV HFC network optical receivers with competitive price. The company strictly adheres to the requirements of international standards, and holds the certification of ISO9001systems, Network Access for Broadcast Equipment, State Administration Of Radio, Film &TV, P. R. China. It also owns some patented technology and intellectual property.
