Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Universal |
Product Description
Introduction

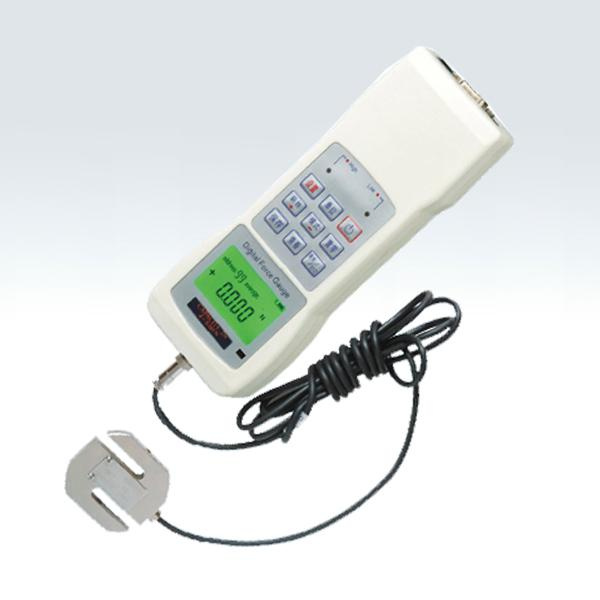

HG series digital force gauge is a common and handy testing apparatus, testing push and pull load. It is small, light, easy to take, multi-function, high precision. Applicable for all products doing push and pull load test, insert and pull out force test, destroy test, etc. It also can be combined with the machine and clamp to make up a small tester for different purposes.
Product Feature
High accuracy, High resolution and High stability.
Setup the difference between upper and limit freely, Indicator light and buzzer alarm automatically and Level signal output.
Display test direction(Pull +, Push -).
Memorize 99 groups of datas: Max/min value and calculate the average value Automatically.
Convert three units N, Kgf, Ibf automatically.
Can set the value of acceleration of gravity
Holding and removing the peak value automatically(0-10 sec. Can be set).
Power off automatically without any operation(0-99 min, time can be set freely).
Adopt external intelligent charger, charge safely and prolong battery life.
Pin output(baudrate 9600), it can print test datas, man/min value and average Value.
Connect to PC, read, print, delete and analysis the datas.
|
Model |
HG-2 |
HG-5 |
HG-10 |
HG-20 |
HG-50 |
HG-100 |
HG-200 |
HG-500 |
HG-1000 |
|
Max load |
2N
0.2kg
0.44lb |
5N
0.5kg
1.11lb |
10N
1kg
2.2lb |
20N
2kg
4.4lb |
50N
5kg
11lb |
100N
10kg
22lb |
200N
20kg
44lb |
500N
50kg
110lb |
1000N100kg
220lb |
|
Load graduation value |
0.001N
0.1g
0.0002lb |
0.001N
0.1g
0.0002lb |
0.005N
0.5g
0.0001lb |
0.01N
0.001kg
0.002lb |
0.01N
0.001kg
0.002lb |
0.05N
0.005kg
0.01lb |
0.1N
0.01kg
0.02lb |
0.1N
0.01kg
0.02lb |
0.5N
0.05kg
0.1lb |
|
Model |
HG-2000 |
HG-5000 |
HG-10K |
HG-20K |
HG-50K |
HG-100K |
HG-200K |
HG-500K |
HG-1000K |
|
Max load |
2000N
200kg
440lb |
5000N
500kg
1100lb |
10KN
1000kg
2200lb |
20KN
2000kg
4400lb |
50KN
5000kg
11000lb |
100KN
10000kg
22000lb |
200KN
20000kg
44000lb |
500KN
50000kg
110000lb |
1000KN
100000kg
220000lb |
|
Load graduation value |
1N
0.1kg
0.2lb |
1N
0.1g
0.2lb |
0.005kN
0.5kg
1lb |
0.01kN
1kg
2lb |
0.01kN
1kg
2lb |
0.05kN
5kg
10lb |
0.1kN
10kg
20lb |
0.1kN
10kg
20lb |
0.5kN
50kg
100lb |
Dongguan Kejian Instrument Co., Ltd. is a professional manufacturer which concentrates on all kinds of materials in testing industry. The production base is located in the national manufacturing center - Dongguan. In order to serve our customers better, we reduce costs and offer early delivery. In 2005, we set up an agency in Kunshan, Jiangsu Province. The agency is responsible for marketing and servicing of Eastern China. In this basis, our international marketing network and after-sales services system are continuously developed, and have been praised by our customers.
Most of the main components of our products are from Taiwanese and overseas famous companies. Our company has advanced production equipment and strong technical ability. At the same time, we have established long-term relationship with Beijing and Shanghai R&D departments. We have introduced some of their high technology and we develop new products continually.
We have passed ISO9001: 2008 international quality management system certification. Our series of tensile testing machines have passed the evaluation of 0.5 level accuracy sent out by Guangdong Provincial Institute of Metrology. Our company will continue to develop, innovate and keep faith. We combine international testing standards with the specific demands of customers and may establish a new banner in Chinese testing industry.
