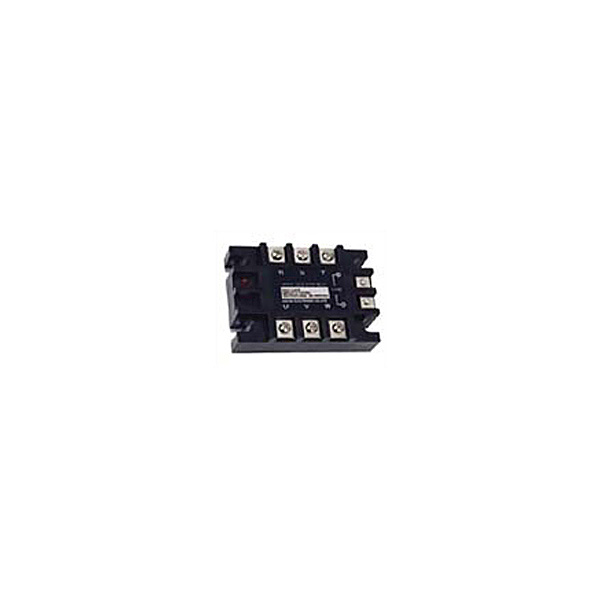

Hgc Series Three Phase Solid State Relay
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
FEATURES :- TRIAC output, zero current turn-off
- INput and output 4000V optically isolated
- LED indicator
- Internal varistor (MOV) and RC snubber dua l surge absorb protec t
- Performance than price high, high reliability
- 100% tested at rated current ,CE compliant..
HGC series three phase solid state relays, adapting ignition-proof engineering plastic cover, filled with EPOXY, screw thread connection, have the features of hard structure,vibration-proof capability high, input driving current small convenient to interface with terminals of computer and various digital tele-control circuit. This series are widely used in the fields of petrochemical equipment, foodstuff-producing machines, packaging machines, textile and plastic mechanisms, tool numerical control, gymnasium equip. Specialities be the same with canker, aquosity request prevent explode scurvines circumstance, and often switch of occasion. |
|
Iutput parameters (Ta:25ºC) : |
|
|
| | Input type | D:DC Control | A:AC Control | | Control voltage range | 3-32 VDC | 90-280 Vrms (50-60Hz) | | Turn-on voltage(Max.) | 3.0 VDC | 90 Vrms | | Turn-off voltage(Min.) | 1.0 VDC | 10 Vrms | | Nominal input impedance | 1500 Ohms | 60k Ohms | | Typical input current | 10mA@5 VDC 22mA@ 24 VDC | 5mA@220 VAC 2.2mA@110 VAC | | Max.Reverse voltage | -32 VDC | _ |
Output parameters (Ta:25ºC) : |
| Output current type | 10 | 15 | 25 | 40 |
|---|
| Operating voltage range | 2:28 280VAC 3:48 480VAC |
|---|
| Max. Load current | 10A | 15A | 25A | 40A |
|---|
| Max. Surge current-Non repetitive (10ms) | 120Apk | 160Apk | 250Apk | 300Apk |
|---|
| Max. I t for fusing(10ms) | 72 A2s | 128 A2s | 312 5 A2s | 450 A2s |
|---|
| Thermal resistance junction to case(Rjc) | 2.5ºC /W | 2.3 ºC/W | 1.1ºC /W | 0.9 ºC/W |
|---|
| Min. Off-state dv/dt | 250V/usec | 500V/usec | 250V/usec | 250V/usec |
|---|
| Max. Over-zero voltage | ±35VAC |
|---|
| Min. Load current | 100mA |
|---|
| Max. On-state voltage drop | 1.5VAC@rated current |
|---|
| Max. Off-state leakage current | 5mA,1mA /no RC @rated voltage |
|---|
| Transient over voltage | 2:800Vpk 3:1000Vpk |
|---|
| Operating frequency range | 47 63Hz |
|---|
| Dielectric strength 50Hz 1Min( ) | 4000VAC input-output 2500VAC input/output-base |
|---|
| Insulation resistance | 1000M 500VDC Voltage Test |
|---|
| Vibration resistance Destructive Functional | 117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm 117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm |
|---|
| Destructive FunctionalShock resistance | Min.980m/s2(100G)(5 times each for X,Y,Z axis) Min.980m/s2(100G)(4 times each for X,Y,Z axis) |
|---|
| Max. Capacitance | 8pF input-output |
|---|
| Max. Turn-on time | Zero voltage turn-on | (1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input) |
|---|
| Random turn-on | 1msec | | Max. Turn-off time | (1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input) |
|---|
| Ambient operating temperature | -30ºC to 80 ºC |
|---|
| Ambient storage temperature | -30ºC to 120 ºC |
|---|
| Ambient humidity relative | 45% to 85% |
|---|
| Weight typical | ≤85g |
|---|
|
|
