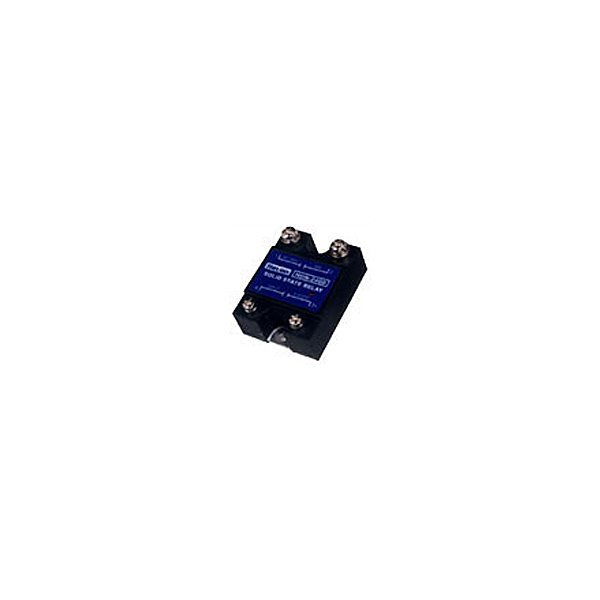

Hgn Series AC Solid State Relay
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
FEATURES :- TRIAC output, zero current turn-off
- INput and output 4000V optically isolated
- LED indicator
- INternal RC snubber.
- Zero voltage and random turn-on switching.
- Performance than price high,hith reliability.
- 100% tested at rated current ,CE compliant..
HGN Series AC Solid State Relays, adapting ignition-proof engineering plastic cover, filled with EPOXY, screw thread connection, have the features of hard structure, vibration-proof capability high, input current small convenient to interface with terminals of computer and various digital tele-control circuit. This series products are widely used in the fields of petrochemical equipment, foodstuff producing mechanism, textile and plastic mechanisms, packaging machines, tool numerical control, gymnasium equip. Speciality be the same with canker, aquosity request prevent explode scurvines circumstance, and often switch of occasion . |
|
|
|
| | Input type | D:DC Control | A:AC Control | | Control voltage range | 3-32 VDC | 90-280 Vrms (50-60Hz) | | Turn-on voltage(Max.) | 3.0 VDC | 90 Vrms | | Turn-off voltage(Min.) | 1.0 VDC | 10 Vrms | | Nominal input impedance | 500 Ohms | 60 Ohms | | Typical input current | 10mA@5 VDC 22mA@ 24 VDC | 5mA@220 VAC 2.2mA@110 VAC | | Max.Reverse voltage | -32 VDC | _ |
| Output current type | 10 | 15 | 25 | 40 |
|---|
| Operating voltage range | 2:28 280VAC 3:48 480VAC |
|---|
| Max. Load current | 10A | 15A | 25A | 40A |
|---|
| Max. Surge current-Non repetitive (10ms) | 120Apk | 160Apk | 250Apk | 300Apk |
|---|
| 2Max. I t for fusing(10ms) | 272A s | 128 2As | 312 5 sA2 | 450 2As |
|---|
| Thermal resistance junction to case(Rjc) | 2.5 /W | 2.3 /W | 1.1 /W | 0.9 /W |
|---|
| Min. Off-state dv/dt | 250V/usec | 500V/usec | 250V/usec | 250V/usec |
|---|
| Max. Over-zero voltage | 35VAC |
|---|
| Min. Load current | 100mA |
|---|
| Max. On-state voltage drop | 1.5VAC@rated current |
|---|
| Max. Off-state leakage current | 5mA,1mA /no RC @rated voltage |
|---|
| Transient over voltage | 2:800Vpk 3:1000Vpk |
|---|
| Operating frequency range | 47 63Hz |
|---|
| Dielectric strength 50Hz 1Min( ) | 4000VAC input-output 2500VAC input/output-base |
|---|
| Insulation resistance | 1000M 500VDC Voltage Test |
|---|
| Vibration resistance DestructiveFunctional | 117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm 117.6mm/s2(12G),10-55 Hz double Amplitude of 2 mm |
|---|
| Destructive FunctionalShock resistance | Min.980m/s2(100G)(5 times each for X,Y,Z axis) Min.980m/s2(100G)(4 times each for X,Y,Z axis) |
|---|
| Max. Capacitance | 8pF input-output |
|---|
| Max. Turn-on time | Zero voltage turn-on | (1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input) |
|---|
| Random turn-on | 1msec | | Max. Turn-off time | (1/2 cycle of load power)+1msec(DC input) (3/2 cycle of load power)+1msec(AC input) |
|---|
| Ambient operating temperature | -30 to 80 |
|---|
| Ambient storage temperature | -30 to 120 |
|---|
| Ambient humidity relative | 45% to 85% |
|---|
| Weight typical | 85g |
|---|
|
|
