Hh53p Protective Relay Electric Relay 12 Volt Relay

Name: Hh53p Protective Relay Electric Relay 12 Volt Relay
Brand: China-Manufacturer-Directory.com
SKU: 765154965
Availability: InStock
Rating: 4.6 (144 reviews)

Supplier:	Xinchi Electric Co., Ltd.
Price:	US $ 5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	HH53P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE / RoHS
Model:	Complete
Shape Size:	Miniature
Grade:	a, B
Price:	Competitive
Quality:	Stable and Reliable
Quality Assurance:	2 Years
Professional Manufacture:	10years
Brand:	Suntree/ OEM/ ODM

Product Description

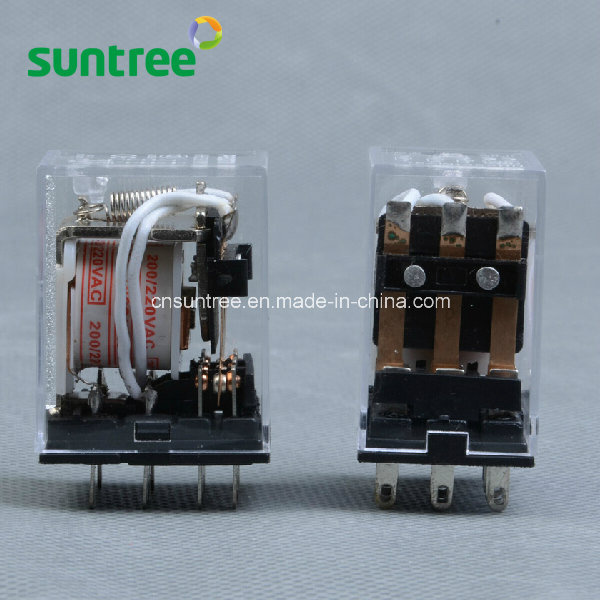

HH53P protective relay electric relay 12 volt relay

Part NO.			HH52P(MY2),HH53P(MY3),HH54P(MY4)
Dimension			272135
Contact Feature	Form		2A,2B,2C	3A,3B,3C	4A,4B,4C
	Rated load		5A/240VAC 28VDC		3A/240VAC 28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		≥1*105
	Mechanical life		≥1*107
Operate voltage (23ºC)			DC:≤75%*Rated voltage
			AC:≤80%*Rated voltage
Release voltage (23ºC)			DC:≥10%*Rated voltage
			AC:≥30%*Rated voltage
Maximum voltage (23ºC)			110%*Rated voltage
Normal coil voltage		DC	3-220V
		AC	3-380V
Normal coil power		DC	0.9W
		AC	1.2VA
Pick-up time			≤15ms
Release time			≤10ms
Dielectric strength	Between Same-pole contacts		1000VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts		1000VAC/1min(leakage current 1mA)
	Between contacts and coil		1500VAC/1min(leakage current 1mA)
Insulation resistance			≥100mΩ(500VDC)
Ambient temperature			-25ºC ~55ºC
Ambient humidity			45%-75%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			PCB,SOCKET
Packing	Inner box		Paper box(pcs)	20
			Foam box(pcs)	50
	Outer box		Paper box(pcs)	600
			Foam box(pcs)	500
	Dimension of the carton		600PCS CTN	330310345MM
			500PCS CTN	440310345MM
	Weight		1PC	Approximate 35g
			600PCS CTN	G.W:22KG N.W:21KG
			500PCS CTN	G.W:19KG N.W:18KG

Description
The HH52, 53 and 54 are a series of miniature general purpose relays
specially designed for users demanding small size, sturdy construction and
high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof
enclosures and are recommended for a multitude of electrical control applications for their reliability and
compact size.Continuous duty coils, either AC or DC
are available for voltages up to 240V AC or 120V DC.
Contacts can be supplied in 2PDT, 3PDT, 4PDT arrangements.
Continuous current ratings are 3, 5 and 7 Amps. Many terminal types are available for solder,
plug-in or printed circuit board mounting.

Features
3, 5 and 7 Amp. contacts
2PDT, 3PDT and 4PDT
Reliable operation, long service life
High dielectric strength
Solder, PC board, wire wrap and
screw terminal socket
AC or DC coils
Barriered contacts for opposite polarity available
Dust proof enclosures

Features:
Size (mm):20.5×27×33.4
Terminal layout:2Z
Contact capacity:5A 220VAC/5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VAC

Specification:

Product Model		HH52P (MY2NJ)
Outline Dimension(L×W×H) (mm)		27.5×21×35.5(mm)
Contact Form		2Z,2C
Initial Contact Resistance		50mΩ (1A 6VDC)
Coil Voltage		5VDC~110VDC; 6VAC~240VAC
Operate Time (at nomi. Volt)		25ms
Release Time (at nomi. Volt)		25ms
Coil Power(W)		0.9W, AC:1.2VA
Contact Rating		5A 250VAC/30VDC
Insulation Resistance		1000MΩ,500VDC
Dielectric Strengh	Between Open Contact		1000VAC 1min.
	Between Coil and Contact		1500VAC 1min.
Electrical Life		1×105
Mechanical Life		1×107
Max. Switching Voltage		250VAC/30VDC
Max. Switching Current		7A
Max. Switching Power		210W/1750VA
Impact Resistance		Stability 100m/s2 Intensity 1000m/s2
Humidity		98% R.H.+40%
Temperature Range		-55~+70°C
Vibration Resistance		1mm 50~55Hz
Construction		Dust vover

Technical Parameter
Model	Coil		Electrical life	Mechanical life	Opetating temperature	Weight	Mounting methods
	Rated voltage	Rated power
HH52P (MY2)	DC 6 to 220V	DC≤0.9W	105OPS	107OPS	-40°C~70°C	≤32g	Printed-circuit board, Flange, outlet
	AC 6 to 380V	AC≤1.2VA
HH53P (MY3)	DC 6 to 220V	DC≤0.9W	105OPS	107OPS	-40°C~70°C	≤35g
	AC 6 to 380V	AC≤1.2VA
HH54P (MY4)	DC 6 to 220V	DC≤0.9W	105OPS	107OPS	-40°C~70°C	≤35g
	AC 6 to 380V	AC≤1.2VA
