SanShine Electronics (Xiamen) Technology Co., Ltd. >> Hi-Pot Tester with Standing Voltage Tester (2670 Series)

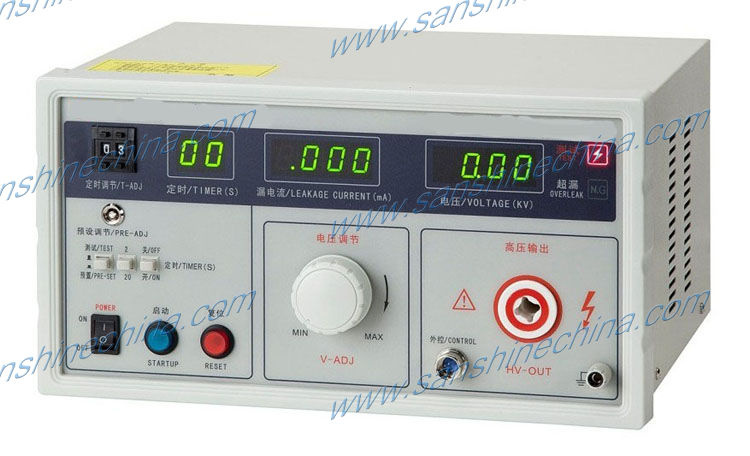

Hi-Pot Tester with Standing Voltage Tester (2670 Series)

Hi-Pot Tester with Standing Voltage Tester (2670 Series)
Supplier: SanShine Electronics (Xiamen) Technology Co., Ltd.
Price: Negotiable/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,EXW,others
contact supplier

Product Specifications

Prod Model: 2670A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Features:
1. Microprocessor control technology
2. Simple operation and reliable performance
3. Programmable test current and time
4. Ideal instrument for product line measurement


Model
 		 2670A
 		 2670B

Output Voltage Range
 		 AC0.5kV-5kV

Voltage Resolution
 		 10V

Voltage Accuracy
 		 ±5%

Max Output Current
 		 20mA

Current High-Limit Setting
 		 0.5mA-20mA

Current Accuracy
 		 ±5%

Transformer Power
 		 500VA

Measurement Time Setting

1s-99s




Display Form
 		 Mirror analog panel meter indication
 		 Digit display

Operation Temperature And Humidity
 		 0 ºC -40 ºC ≤85% RH

Power Requirements
 		 198V ~ 242V AC ,47.5HZ ~ 52.5HZ

Dimension
 		 320×170×250(mm)

Weight
 		 10kg

SanShine has been created in 2000. SanShine is the leading machine, electronic test instrument and tools manufacturer. We offer competitive price and good quality & service for our customers.

Our products service electronics/electric manufacturers(transformer, inductor, PCB, motor, relay, link, cable, socket, capacitor, resistor, toroid coil manufacturers).

1. Transformer Auto. Analyzer, LCZ / LCR analyzer, DCR analyzer, LCR meter, surger tester, Hi-pot tester(high voltage tester), insulation tester, digital oscilloscope, cable / linker Auto. Tester, AC/DC power supplier, UPS supplier, frequency conversion power supplier, optical fiber tester, bobbin coil turns tester, toroid coil turns tester, multimeter.

2. Amorphouse ribbon produce machine, Transformer Auto. Winding machine, toroid coil Auto. Winding machine, toroid coil hook type winding machine, air coil Auto, winding machine, solder tinning pot, Auto. Solder tinning machine, maganetic wire stripping machine, PVC insulation wire hot stripper, glue dispenser machine, wire cutting machine, textile belt cutting machine.

3. Winding nozzle of transformer / inductor / relay / motor Auto. Winding machine, toroid coil winding hook, wire tensioner, ceramics parts for winding machine, testing clip, testing wire, testing jig, testing prob, branding iron, product box / dish, liquid dispenser nozzle and tank.

SanShine makes your T&M quickly and easy!
