High Accuracy Electromagnetic Flow Meter for Liquid

Product Specifications

Prod Model:	TFE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ambient Temperature: Separate-Type:	-10 ... +60 Degrees Celsius
Relevant Humidity:	5% ... 90%
Power Supply:	Single Phase a.C 85 ... 265V, 45 ... 63Hz
Power Consumption:	Equipped with Sensor, Less Than 20 W
Repeatability Error:	1% of Measuring Value
Output:	Two-Way, All Isolated 0 ... 10mA / 4 ... 20mA
Damping Time:	Option of Range in 0 ... 100s (90%)
Accuracy:	?à0.2-0.5%
Main Application:	Corrosive Liquid/Gas
Size:	DN50-100
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles

Product Description

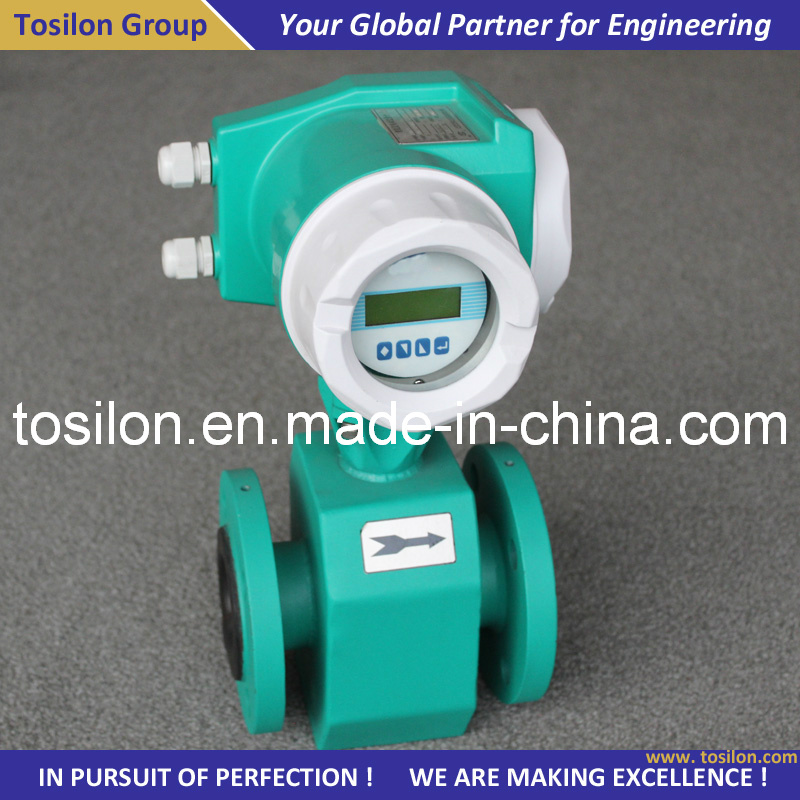

Tosilon High Accuracy Electromagnetic Flow Meter for Liquid (Ex Approved)
Design and Manufacturing according to UL, RoHS Standard

Introduction
TFE-Electromagnetic Flowmeter was developed based on principle of electromagnetic induction, I.E., when conductive liquid flows into measuring tube, the corresponding induction voltage signal, inspected from two electrodes installed on the tube, will be transmitted in transmitter and finally output digital signal.
TFE Electromagnetic Flowmeter is applied to measure the volumetric flow of conductive liquids and slurry in enclosed pipes, such as tap water, polluted water, mud, pulp, various acid/alkali/salt solutions, food slurry, etc.It has a wide range of applicant ambient, including oil interests, chemical industry, power plant, mining and metallurgic plant, water supply and sewerage works, light industry, food products factory, and so on.

Features

·Full stainless steel construction;
·Laser Welding for Diaphragm
·5-digit LCD Display;
·Static or Fluid Media Available;
·Temperature Compensation Available;
·HART PROTOCOL Available;
·Multiple type of Installation
·Diaphragm Safety Cover Available

Technical Specification
Normal Operating Condition

Ambient Temperature
Separate-type -10...+60 oC

Relevant Humidity
5%...90%

Power Supply
Single phase A.C 85...265V, 45...63Hz

Power Consumption
Equipped with sensor, less than 20 W
Reference Performance for test

Ambient Temperature
20 oC ±2 oC

Relevant Humidity
45%...85%

Power Supply
220 ±2%

Frequency
50 Hz ±5%

Content of Harmonic Wave
5%

Preheating Time
30 min

Repeatability Error
±1% of measuring value

Current out
A.Current Output Signal:Two-way, all isolated 0...10mA / 4...20mA
B.Load Resistance:0...10 mA, 0...1.5k Ω;4...20mA, 0...750Ω
C.Basic Error:Based on basic error above mentioned, ±10 μA

Frequency
Frequency output:Forward and reversing flow output, the upper limit of output frequency can be set in the range of 1...5000 Hz.The collector of transistor with optoelectronic isolator:Open circuit two-way output.The external supply should no more than 35 V.In conducting state, the maximum current of collector should be 250mA.

Pulse Output
Pulse Output
Forward/reversing flow output, the output upper limit can reach 5000 cp/s.

Pulse equivalence:
0.0001...1.0 m3/cp.Pulse is automatically set 20ms or square wave.

The collector of transistor with optoelectronic isolator
Open circuit two-way output.The external supply should no more than 35 V.In conducting state, the maximum current of collector should be 250mA.

Indication Output of Flow Direction
This flowmeter can measure flow of forward/reversing fluid and judge the flowing direction.It specifies that it will output +10V high level in forward direction while 0V low level in reversing direction.

Alarm Output
The collector of transistor with optoelectronic isolator:Open circuit alarm output.The external supply should no more than 35 V.In conducting state, the maximum current of collector should be 250mA.Alarm situations:Empty pipe, exciting wire-break, flow over limit.

Serial Telecommunication
Options of RS 232 and RS 485 with lighting-resistant function;

Damping Time
Option of range in 0...100s (90%)

For more information, please contact Tosilon
Your Global Partner for Automation
www.Tosilon.COM

DN(mm)	Max. Flow (m 3 /h)
15	0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0
20	0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0
25	1.0,1.2,1.6,2.02.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,16.0
32	1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12,16,20,25
40	2.5,3.0,4.0,5.0,6.0,8.0,10.0,12,16,20,25,30,40
50	4.0,5.0,6.0,8.0,10.0,12,16,20,25,,30,40,50,60
65	6.0,8.0,10.0,12,16,20,25,30,40,50,60,80,100,120
80	10.0,12,16,20,25,30,40,50,60,80,100,120,160
100	16,20,25,30,40,50,60,80,100,120,160,200,250
125	25,30,40,50,60,80,100,120,160,200,250,300,400
150	40,50,60,80,100,120,160,200,250,300,400,500,600
200	60,80,100,120,160,200,250,300,400,500,600,800,1000
250	100,120,160,200,250,300,400,500,600,800,1000,1200,1600
300	160,200,250,300,400,500,600,800,1000,1200,1600,2000,2500
350	200,250,300,400,500,600,800,1000,1200,1600,2000,2500,3000
400	250,300,400,500,600,800,1000,1200,1600,2000,2500,3000,4000
500	400,500,600,800,1000,1200,1600,2000,2500,3000,4000,5000,6000
600	600,800,1000,1200,1600,2000,2500,3000,4000,5000,6000,8000,10000
700	800,1000,1200,1600,2000,2500,3000,4000,5000,6000,8000,10000,12000
800	1000,1200,1600,2000,2500,3000,4000,5000,6000,8000,10000,12000,16000
900	1200,1600,2000,2500,3000,4000,5000,6000,8000,10000,12000,16000,20000
1000	1600,2000,2500,3000,4000,5000,6000,8000,10000,12000,16000,20000,25000
1200	2500,3000,4000,5000,6000,8000,10000,12000,16000,20000,25000,30000
1400	3000,4000,5000,6000,8000,10000,12000,16000,20000,25000,30000,40000,50000
1600	3000,4000,5000,6000,8000,10000,12000,16000,20000,25000,30000,40000,50000,60000
1800	5000,6000,8000,10000,12000,16000,20000,25000,30000,40000,50000,60000
2000	6000,8000,10000,12000,16000,20000,25000,30000,40000,50000,60000,80000,100000
