Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Sensor: |
Plug-in |
| Type: |
Electromagnetic Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
| Accuracy: |
0.5% |
| Size: |
Dn15-2000 |
Product Description
Precision: Caliber10-250, +/-0.5% +/-1.0%
Caliber300-2000, +/-1.0%
Medium Conductance: More than 5 microsecond/cm(water more than 20 microsecond/cm)
Output signal: 4-20mA DC; 0-10mA DC
Max temperature: Caliber10-200 for 80, 120, 150 centigrade degree; Caliber250-1200 for less than 80 centigrade degree
Max pressure: Caliber10-50 for 4.0MPa; Caliber65-125 for 1.6MPa; Caliber150-1000 for 1.0MPa; Caliber 1200-2000 for 0.6MPa
Enclosure Grade: IP65, IP67 and IP68 for water proof
Power supply: 220V, 50Hz
Flange connection: JB/T 81-94, GB9119-88 or made per user's requirements.
Technical spec
Display : reaches 8element liquid crystal display, current clock to indicate flow data. two kinds of units to choose:m3 or L.
Structure : inserted style, compact type or separate type
Measuring medium :liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2
Range: 0.05m/s~12m/s
Accuracy : range between 0.1m/s~10m/s can be 0.5%
DN(mm) :6mm~2000 mm
PN :PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional
Output signal:4~20mA or frequency
Communication :RS485,support MODBUS protocol (not standard), support HART (option)
Connection :DN6~DN2000 flange connection
Connection standard suits for all kinds of flange standard(eg:BS EN1092-1)
Standard :accuracy apply to EN1434- 1:2003 standard
CE certificate : apply to LVD 2006/95/EC and EMC 2004/108/EC
EN 61326-1:2006 radiation standard (express apply to BS EN50081-1)
EN 61326-1:2006 anti-jamming standard (express apply to BS EN50082-1)
EN 61010-1:2001
Protection grade :compact type for IP65,separately type for IP67or IP68(optional)
Power supply :AC86~220V or DC24V(optional)
Ambient temperature :5~55°C
Ambient huminity: <85 % r.h (noncondensation)

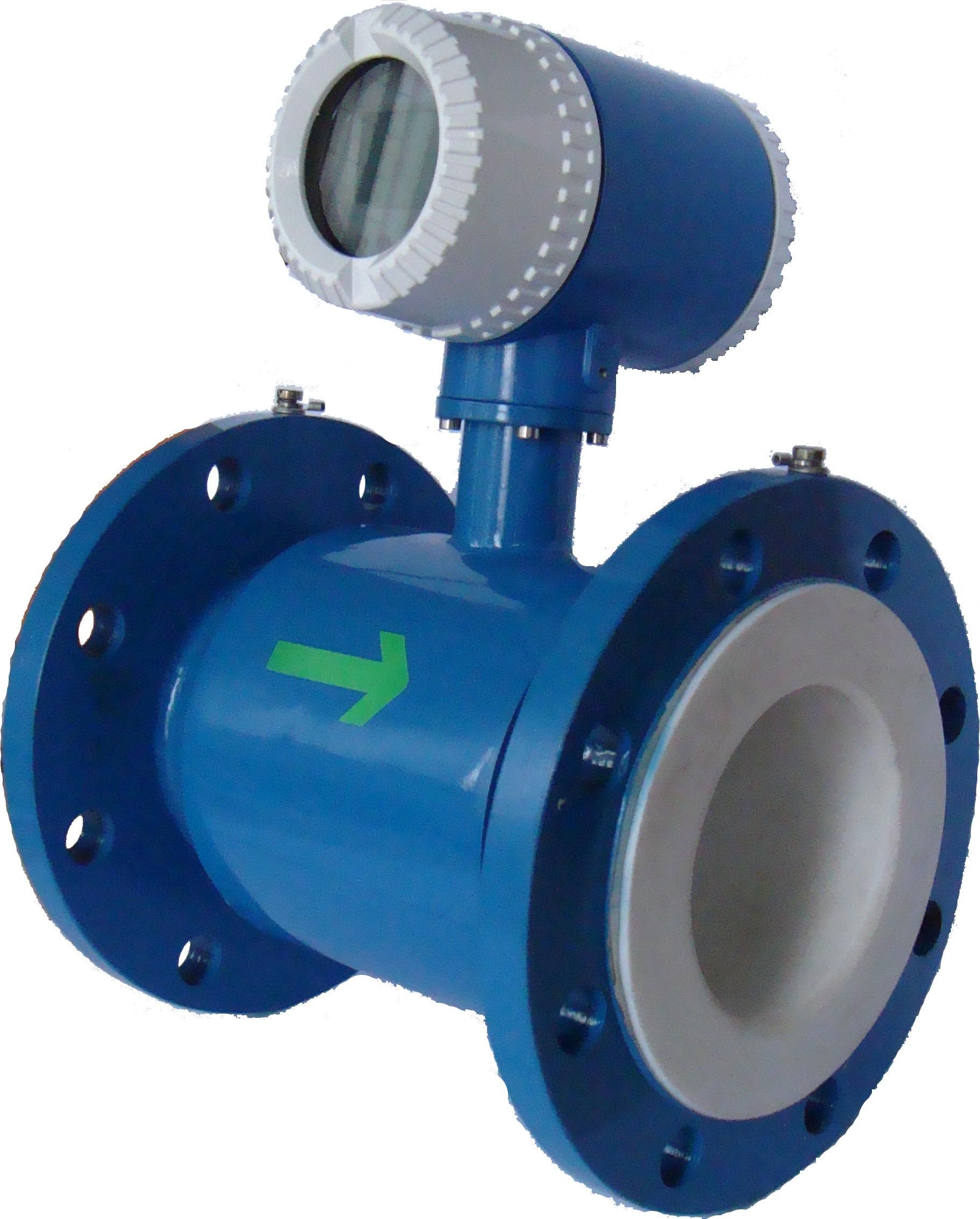

Electromagnetic flow sensor
Sensor's shell is sealed with carbon steel, only electrode and lining contact with medium.
Flow sensor technical spec
Application area:conductivity fluid such as cold and warm water, pure water and corrosive material etc.
DN(mm) :6mm~~2000mm
PN :PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420
Electrode material :316L
Lining material :PTFE or customize
Medium tem :0~70°C,max is 180°C
Shell material:carbon steel
Protection grade : IP65,IP67 and IP6
Connection all applys(eg:BS EN1092-1)
| DN | 6mm~~2000mm |
| PN | PN6 , PN10 , PN16 , PN25 , PN40 , PN63 , PN100 , PN160 , PN250 , PN420 |
| Electrode material | 316L |
| Lining material | PTFE or customize |
| Medium tem | 0~70°C , max is 180°C |
| Shell material | carbon steel |
| Protection grade | IP65 , IP67 and IP6 |
| Connection | all applys( eg : BS EN1092-1 ) |
Converter technical data
| Current output | 4~20Ma |
| Frequency output | No resource pulse :
High level=external power supply-1V
External volts≤30 V
Low level ≤ 0.5V
Load current ≤ 50 mA
Max.frequency output :5KHz .
Frequency of pulse output: 0~5Hz . |
| Display | With 8digit LCD display |
| Display unit | Instantaneous flow units : m 3 /h , m 3 /m , m 3 /s , L/h , L/m , L/s , G/h , G/m , G/s . Total flow units: m 3 , L , G . |
| Communication | MODBUS protocol ( optional ) or HART ( optional ) |
| Protection grade | IP65 |
| Power supply | 220 V AC +20/-60% , 50/60 Hz , 24 V DC +50/- 25% , max.10VA |
| EMC radiation standard | EN 61326-1 : 2006 (BS EN50081-1) |
| EMC anti-jimming standard | EN 61326-1: 2006 (BS EN50082-1) |
| CE security | EN 61010-1 : 2001 |
| Ambient temp. | 5~55°C |
| Ambient humi d ity | <85 % r.h. (non co n densation) |
