Wenzhou Yingxing Import&Export Co., Ltd. >> High Accuracy High Speed Desktop Semi-Automatic Printer

High Accuracy High Speed Desktop Semi-Automatic Printer

Name: High Accuracy High Speed Desktop Semi-Automatic Printer
Brand: China-Manufacturer-Directory.com
SKU: 752625665
Availability: InStock
Rating: 4.9 (131 reviews)

Supplier:	Wenzhou Yingxing Import&Export Co., Ltd.
Price:	US $ 1800-1900/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	YX2030
Markets:	North America,South America,Eastern Europe,Mid East,Western Europe
Table Size:	500 X 300mm
Stock:	Yes
Manufactory:	Yes
Color & Page:	Single Color
Voltage:	110V/220V
Max. Printing Height:	150mm
Max.Printing Size:	200X270mm
Worktable Size:	240X400mm
Right/Left Stroke:	300mm
Precision:	High Precision
Heating System:	Electric
Demoulding:	Automatic
Function:	Anti-Corrosion
Warranty:	12 Months
Customized:	Customized
Condition:	New
Automatic Grade:	Automatic
Certification:	ISO
Mould Life:	>1,000,000 shots

Product Description

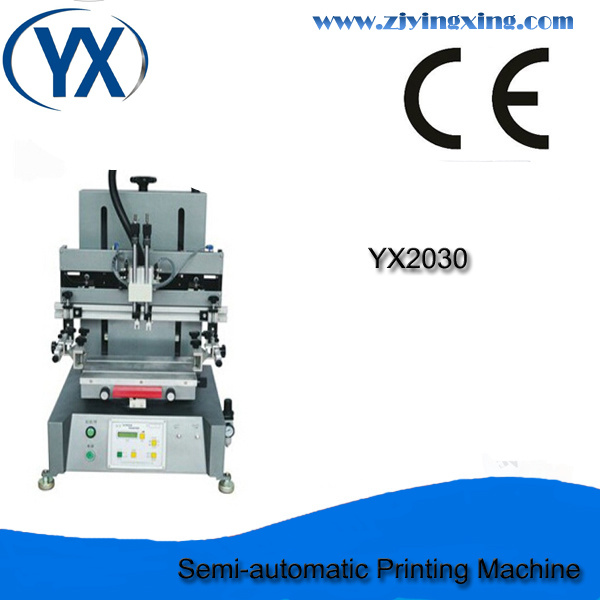

Desktop Semi-automatic Printing Machine(YX2030)

Vedio please clcik: http://www.tudou.com/home/_427845878

Pneumatic Plane Stencil Printer
Microprocessor control ,low noise ,high speed ,stable performance .

Details :

Plate Type:	Screen Printer	Condition:	New	Place of Origin:	ZheJiang China (Mainland)
Brand Name:	YX	Model Number:	YX2030	Usage:	Paper Printer,Label Printer,Tube Printer
Automatic Grade:	Automatic	Color & Page:	Single Color	Voltage:	110V/220V
Gross Power:	40W	Dimensions(LWH):	540x800x1400mm	Weight:	130kg
Certification:	ISO9001/CE	Warranty:	1	After-sales Service Provided:	Engineers available to service machinery overseas
Name:	Pneumatic Plane Stencil Printer	Mode:	Automatic/Semi-automatic	Start:	Control panel / Foot pedal
Squeegee Pressure Control:	Regulator	Max. Printing Height:	150mm	Worktable Size:	240x400mm
Max.Printing size:	200x270mm	Up/Down Stroke:	150mm	Right/Left Stroke:	300mm

Specifications:

Mode	Automatic / Semi-automatic
Start	Control panel / foot pedal
Squeegee Pressure Control	Regulator
Max. Print Height	150mm
Worktable Size	240x400mm
Max. Printing Size	200x270mm
Up/Down Stroke	150mm
Right/Left Stroke	300mm
Max. Printing Speed	1500pcs/hour
Accuracy	<0.04mm
Air Requirement	6Bar
Voltage	110V/220V 50Hz
Machine Size	540x800x1400mm
Net Weight	130kg

Function and characteristics :

1. Microprocessor control , easy and simple operate , high accuracy .
2. Four number auto-counter .
3. Adjustable of printing stroke sand speed , meet different print needs .
4.Independent control of left and right move , with precision minute adjustable of
stroke and speed .
5. Independent work table XYR adjustment .
6. Long stroke of up and down design , more convenient for printing .
7. Using pneumatic parts , ensure the machine in high quality .
8. High efficiency , stable and low noise .
9. Suitable for flat surface printing , widely applied in many industries including stationery , toys , goft industry , electrical appliances , cosmetic , containers , etc .

Our Services:
1.Payment term:T/T,Western Union,Paypal
2.Delivery time:Goods in stock,after received payment
3.Warranty:One year

Wenzhou Yingxing Technology Co., Ltd was established in 2009, which is a domestic R & D and manufacture of high-end SMT high-tech enterprise, is committed to developing technology-intensive automation equipment. To solve the problem of quality reduction and high cost from labor-intensive industry and develop to become a highly efficient and stable technology-intensive industry.

We focus on the placement machines, the main products are generic SMT placement machine, professional LED automatic placement machine, automatic 6 SMT machines, visual placement machine and other products. The efficiency had achieved 3000-35000 components / hour. Our mission is efficient service to small and medium sized e-business in China and developing with them together.

Also, we focus on the electronics manufacturing industry, photovoltaic and LED industries, R & D and production automatic placement machine to provide the excellent and reliable service to enterprises. Today, there are more than two thousand customers are doing business with us, 98% of provinces and autonomous regions all over the country. Some of the equipments has been exported to Brazil, Germany, USA, Italy, India, Singapore, Vietnam and other countries.

Yingxing Technology is coming the domestic placement machine leader. Welcome to join us.
