Product Specifications
| Prod Model: |
S-75-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
S-75-25 |
| Output Type: |
Triple |
| Warranty: |
1 Year |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
Product Description

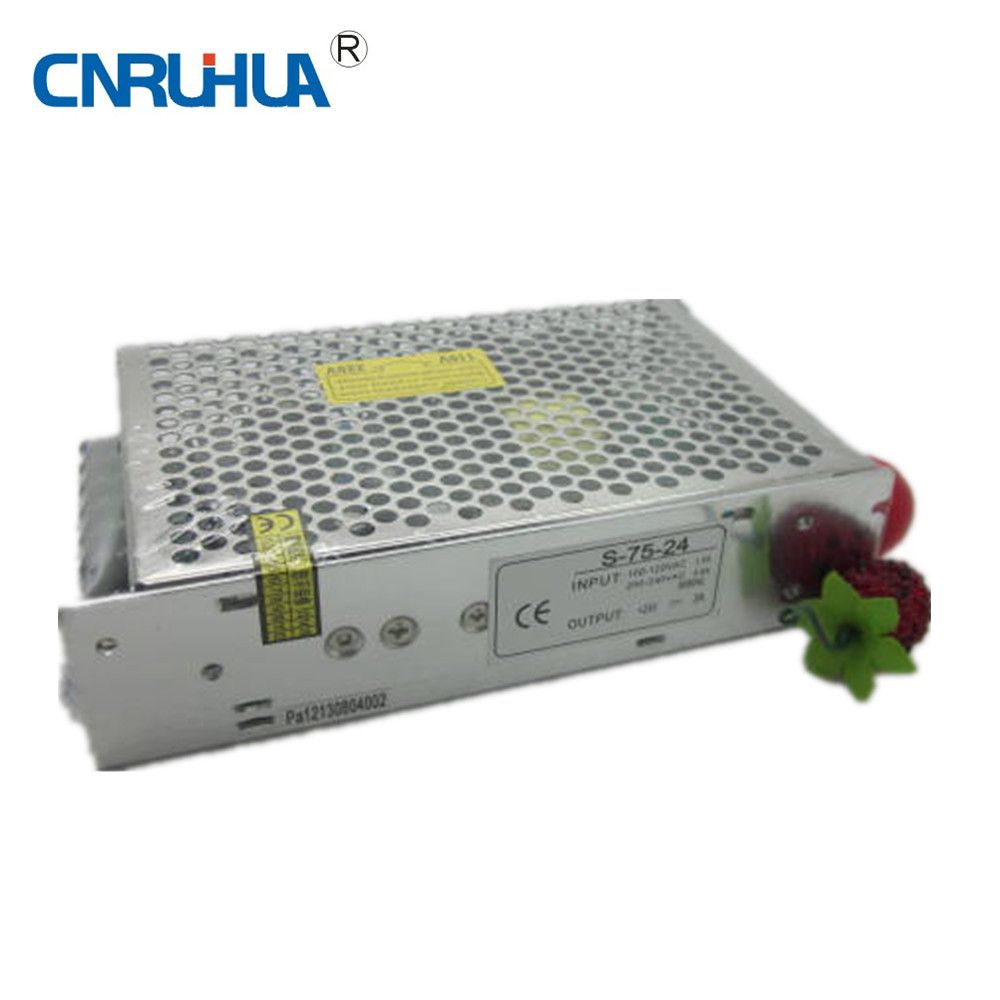

High accuracy Output Switching Power Supply S-75
Protections: Short circuit/ Overload
? Cooling by free air convection
? 100% full load burn-in test
? Low cost, high reliability
? 1 year warranty |
case::901 159X97X38mm
AC input voltage range ........... 85~264VAC; 120~370VDC
AC inrush current ................... Cold start, 20A at 115VAC, 40A at 230VAC
DC adjustment range ............. 10% rated output voltage
Overload protection ............... 105%~150% hiccup mode, auto-recovery
Over voltage protection ......... 115%~135% rated output voltage
Setup, rise, hold up time ........ 300ms, 50ms, 90ms at full load and 230VAC
Withstand voltage .................. I/P-O/P:3.0KVAC, I/P-FG:1.5KVAC, 1 minute
Working temperature ............. 0~45OC@100%, -10OC@80%, 60OC@60% load
Safety standards ................... UL1012, UL60950-1, TUV EN60950-1 approved
EMC standards ..................... EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, ENV50204
Connection ............................ 5P/ 9.5mm pitch terminal block
Packing ................................. 0.51 kg ; 24pcs / 13.1 kg / 0.70CUFT
| Stock No. | Model No. | Output | Tol. | R&N | Effi. |
| 50061 | S-75-5 | 5V,0~15A | ±2% | 80mV | 72% |
| 50062 | S-75-12 | 12V,0~6.3A | ±2% | 80mV | 77% |
| 50063 | S-75-15 | 15V,0~5.0A | ±2% | 80mV | 79% |
| 50064 | S-75-24 | 24V,0~3.2A | ±1% | 100mV | 80% |
