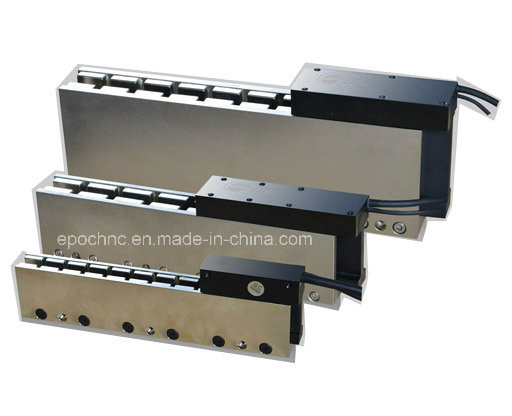

High Accuracy U-Type Ironless Linear Motor
| Price: |
US $ 830-3260/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
Brief Instruction
Epochnc Ironless Linear Motor and Iron-core Linear Motor are direct-drive. The coil and the magnet track are non-contacting. With this configuration, all mechanical transmissions, such as ball/lead screws, rack & pinions, belts/pulleys, and gearboxes are eliminated. This in turn eliminates backlash and compliance and other problems associated with these mechanical transmissions.
Prominent Performances
Measured by Optical Scale
High Stability, High reliability and High Dynamic
High accuracy, High acceleration and High moving Speed
No contact between forcer and stator.
No Backlash
Smooth running, No Wear, Low maintenance, Long operating life
Can be Customized
Advantage of the Linear Motor
Position accuracy to +/-0.5um
Max. velocity 5m/s
Simple structure, direct drive, no transmission part, simple assembly
High rigidity, no backlash
Steady and quiet movement U-Type Ironless linear motor| Mode No | Fc(N) | Fp(N) | Ic( Arms) | Ip(Arms) | Ke(Vpeak/m/s L-L)) | Kf(N/Arms) | Mc(kg) |
| EPN06-015 | 21 | 60 | 2.5 | 7.2 | 6.9 | 8.4 | 0.23 |
| EPN06-030 | 38 | 120 | 2.3 | 7.1 | 13.7 | 16.8 | 0.27 |
| EPN06-050 | 61 | 200 | 2.1 | 7 | 23.3 | 28.5 | 0.32 |
| EPN06-075 | 87 | 300 | 2 | 7 | 34.9 | 42.8 | 0.38 |
| EPN06-100 | 113 | 400 | 2 | 7 | 46.5 | 57 | 0.45 |
| EPN12-015 | 41 | 120 | 2.4 | 7.1 | 13.7 | 16.8 | 0.35 |
| EPN12-030 | 76 | 240 | 2.3 | 7.1 | 27.5 | 33.7 | 0.42 |
| EPN12-050 | 122 | 400 | 2.1 | 7 | 46.5 | 57 | 0.52 |
| EPN12-075 | 174 | 600 | 2 | 7 | 69.8 | 85.5 | 0.65 |
| EPN12-100 | 226 | 800 | 4 | 14 | 46.5 | 57 | 0.77 |
| EPN18-015 | 62 | 180 | 2.4 | 7.1 | 20.7 | 25.3 | 0.46 |
| EPN18-030 | 114 | 360 | 2.3 | 7.1 | 41.2 | 50.5 | 0.57 |
| EPN18-050 | 184 | 600 | 2.2 | 7 | 69.8 | 85.5 | 0.72 |
| EPN18-075 | 260 | 900 | 2 | 7 | 105 | 128 | 0.91 |
| EPN18-100 | 338 | 1200 | 2 | 7 | 140 | 171 | 1.1 |
| EPN24-015 | 83 | 240 | 2.4 | 7.1 | 27.5 | 33.7 | 0.57 |
| EPN24-030 | 152 | 480 | 2.3 | 7.1 | 55 | 67.4 | 0.72 |
| EPN24-050 | 245 | 800 | 2.1 | 7 | 93.1 | 114 | 0.92 |
| EPN24-075 | 348 | 1200 | 2 | 7 | 140 | 171 | 1.17 |
| EPN24-100 | 450 | 1600 | 2 | 7 | 186 | 228 | 1.42 |
| Prod Model: |
EPN Series: 06-12-18-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size:52.5~148.5mm*24.5~34mm: |
Weight:0.23kg~1.42kg |
| FC:22n~427n: |
Fp: 88n~1709n |
| Positioning Precision:0.001mm: |
Max. Speed: 5m/Min |
| Task: |
Program |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Certification: |
ISO: 9001, SGS |
| Condition: |
New |
| Customized: |
Customized |
| Function: |
Automatic Control |
