Hangzhou Meacon Automation Technology Co., Ltd. >> High Accuracy Vortex Flow-Meter Liquid Gas Steam Flow-Meter

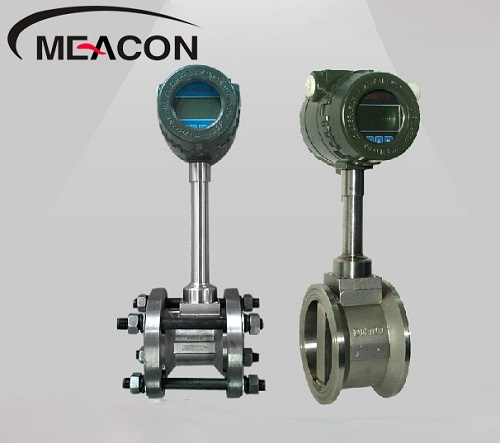

High Accuracy Vortex Flow-Meter Liquid Gas Steam Flow-Meter

High Accuracy Vortex Flow-Meter Liquid Gas Steam Flow-Meter
Supplier: Hangzhou Meacon Automation Technology Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: MIK
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Vortex Flow Meter
Sensor: Tube/Flange
Measuring Media: Liquid, Gas, Steam
Size: Customizable
Main Application: Liquid, Gas, Steam

Product Description

Product introduction
Vortex Flow-meter is suitable for oil,chemical industry,metallurgy,heating power,spinning,papermaking ,etc. Be use of control: over-heating vapor, saturation vapor, compressed air, ordinary air(oxygen, nitrogen, hydrogen, natural gas, coal gas ,etc),water and liquid (water, petrol , alcohol, benzene ,etc.)
Product specification
inside nominal diameter (mm)15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)
nominal pressure (MPa)DN25-DN200 4.0(>4.0 order by agreement),DN250-DN300 1.6(>1.6 order by agreement)
medium temperature (ºC)-40-250ºC(order by agreement)
noumenon1Cr18Ni9Ti,(order by agreement if need other material)
vibrating accelerationpiezoelectric type:0.2g     capacitance:1.0~2.0g
range±1%R,±1.5%R,±1FS;plug-in:±2.5%R,±2.5%FS
service voltage+24V DC; battery supply feed:3.6V battery
Protection gradeordinary type IP65
mediumgas,liquid,vapor
transmission rangethree-wire system flow sensor:≤300m,electric sign of two-wire system transmitter (4~20mA):load resistance≤750Ω

Hangzhou Meacon Automation Technology Co., Ltd. is located in hangzhou economic and technological development zone, is a professional in automation product development, manufacturing and services for the integration of high-tech enterprises.

The company has collected the country a number of outstanding automation, electronics, machinery and computer on fields of technical experts, launched the MX series high precision process verification tester for CX explosion-proof type circuit, appearance, RX series without paper recorder, HX series high-speed recorder and a series of products. At present has become the leading supplier of one of automation industry. Series products have been widely used in petroleum, electric power, chemical industry, metallurgy, building materials, food, light industry, environmental protection, aerospace, municipal and other industries. Customers are all over the nation, the partial products have been exported to southeast Asia, etc. The company is in Beijing, Shanghai, guangzhou, kunming has sales service center.

We continue to focus on for new and old customers with professional and comprehensive automation solutions and products, in return for every one of the care and the support of our customers.
