Shenzhen Vteam Co., Ltd. >> High Brightness Mobile Indoor Digital LED Video Display

High Brightness Mobile Indoor Digital LED Video Display

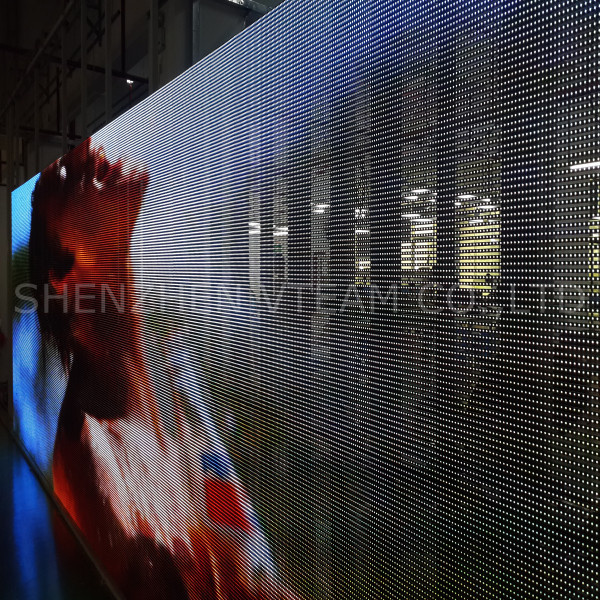

Name: High Brightness Mobile Indoor Digital LED Video Display
Brand: China-Manufacturer-Directory.com
SKU: 736593025
Availability: InStock
Rating: 4.9 (72 reviews)

Supplier:	Shenzhen Vteam Co., Ltd.
Price:	US $ 800-950piece
Min Order:	1piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Pixel Pitch:	3.9/4.8/5.2/6.9mm
Pixel Configuration:	RGB3in1 SMD2121/3528
Viewing Angle:	140°/120°
Refresh Rate:	>1920Hz
Gray Scale:	>14 Bits
Protection Level:	IP43
Power Supply:	AC 110-220V,50/60Hz
Working Environment:	Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time:	>50,000 Hours(>70% Luminous Output)
Export Markets:	Global
Tube Chip Color:	Full Color
Display Function:	Video Display
Application:	Shopping Guide
Pixel Configuration:	1R,1G,1B
IP Rating:	IP43
Certification:	RoHS
System Operating Platform:	WIN XP
Pixel Pitch:	10mm/12mm
Pixel Density:	6400-10000 Dots/M²

Product Description

Cn10/12 is a light, thin and transparent products that very suitable for lighting rental and large square application. Cn10/12 with the performance of light, thin and transparent are very suitable for application on entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. Cn10/12 is the best choice for creative designing company to produce large square image. Product Features 1. Light-weight. Saving shipping & labor cost. 2. Nice appearance, good solutions for the overall aesthetic feeling. 3. Jointed correctly, easy to install and dismount. No tool installation. 4. High transparency. Light, air and frost could easily cross through it. 5. Humanized operating interface with breakdown indicator lights. 6. High debugging brightness as 500-1500nit and no damage to gray scale, achieving the debugging technology with wonderful video show.

Item Name	Cn10	Cn10A	Cn12	Cn12A
Pixel Pitch	10.4166mm	10.4166mm	12.5mm	12.5mm
LED Type	SMD3528	SMD3535	SMD3528	SMD3535
Pixel Matrix/ panel	96x48	96x48	80x40	80x40
Brightness	900-1500 Nit	4500 Nit	900-1500 Nit	4500 Nit
Driving Mode	1/6 scan	1/3 scan	1/5 scan	1/2scan
Best Viewing Distance	≥10m	≥10m	≥12m	≥12m
Weight/panel	8kg	10kg	7.5 kg	9.5 kg
Max. Power Consumption	200W/panel	300W/panel	150W/panel	300W/panel
Ave. Power Consumption	80W/ panel	100W/ panel	60W/ panel	100W/ panel
Protection Level	IP43	IP65	IP43	IP65
Application	INDOOR	OUTDOOR	INDOOR	OUTDOOR
Transparency	50%	50%	55%	55%
Panel Size	500x1000x60mm
Pixel Configuration	RGB 3in1
LED Lamp/Chip	Silar or Epistar
Viewing angle	140°/140°
Gray Scale	≥14bit
Refresh Rate	≥1920Hz
Color Space	687 billion
Input Signal	DVI,VGA,HD-SDI,S-video,Composite,YUV,etc
Input Voltage	AC 220V±10%, 50/60Hz
Power Supply	Meanwell or G-energy with UL certificate
Display Media	Video,graphic,animation,signage,cartoon,text,etc
Control System	YDEA(showbox),Nova,PC based dynamic capture & mapping.
System Operating Platform	WINDOW98/2000/XP/7/8
Working Environment	Temperature: -10ºC~+50ºC, humidity: 10-90%RH
Warranty	Two years
Lifetime	> 50,000 hours(to>70% luminous output)
Certificate	CE&RoHs

SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.

VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.

As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!

VTEAM Mission: To create value and profit for customers!

VTEAM Vision: Being creative concept pioneer!
