High capacity mineral processing 6-S Double deck shaking table for gold ore separation
Double-deck mineral processing shaking table description
There is a trouble for user that the traditional 6-s single-deck shaking table is large area occupied, low capacity and expensive.And haven't been solved effectively for a long time.Since the double-deck shaking table come out,the problem was solved.
Application of mineral processing shaking table
Double-deck shaking table widely used in separating tungsten, tin, tantalum, niobium, gold and other rare metals and precious metal.Can be used for roughing, selection, sweep and other different jobs .Selection Coarse sand (2-0.5mm), fine sand (0.5-0.074mm), sludge (-0.074) and other different size fractions.Can also be used to choose iron, manganese ore and coal.When dealing with tungsten and tin ore, the efficiency size range is 0.02mm to 2mm.
How to choose the right model of mineral processing shaking table
To Choosing the shaking table model according to the Max feeding size, the feeding amount and plant area.
1.Max feeding size <2mm, coarse sand deck shaking table
2.Max feeding size <0.5mm, fine sand deck shaking table
3.Max feeding size <0.1mm, slime deck shaking table
the smaller the feeding size is, the less feeding amount will be.
if the plant area is not enough, we can use double-decked shaking table.
Feature of 6-S Double deck mineral processing shaking table

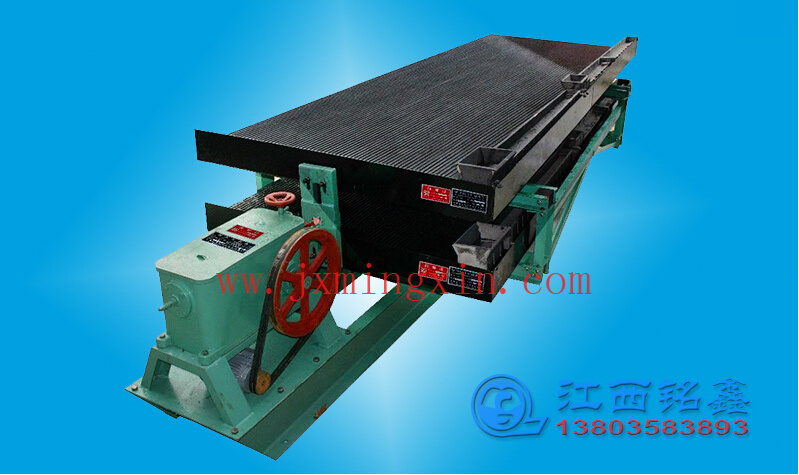

Double-deck shaking table is a innovative products base on Single-deck shaking table ,with the feature
1.covers an area of small,
2.large capacity,
3.energy saving,
4.equipment costs are relatively low,
5.with high-grade ore ratio,
6.high sorting efficiency,
7.easy to management, easy to adjust stroke, time of stroke etc.
8.when changing the cross slope and stroke still maintain running balance. spring is placed in the casing, compact structure,and it can obtain a final concentrate and final tailings.
The techincal of MX mineral processing shaking table
Model | 6s-7.6 | 6s-4.08 | 6s-1.95 | 6s-0.5 |
Deck type | Coarse ore deck | Fine sand deck | Slime deck |
|
|
|
Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 |
Deck size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 |
Concentrate end width (mm) | 1546 | 1546 | 1546 | 110 | 850 | 430 |
Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2 Slime-0.1 | Sand -2 Slime-0.074 | Sand -2 Slime-0.074 |
Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h |
Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 |
Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 |
Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 |
Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h |
Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° |
Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- |
Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- |
Motor power(kw) | 1.1 | 0.55 |
Transmission mechanism | Eccentric linkage |
The techincal parameters of double-deck mineral processing shaking table
number | name | Model | stroke | Time of stroke | Feed size | Dimensions (mm) | Capacity (t/h) | Weight (kg) | Power (KW) |
1 | double-deck shaking table | 6-s | 8-36 | 240-380 | 0.02-2 | 5600*2000*1200 | 1.5-2 | 1415 | 1.5 |
