Product Specifications
| Prod Model: |
16110-01010 For TOYOTA GWT-58A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Heat Treatment: |
High-Frequency Quenching or Integral Quenching |
| Grease: |
Shell Alvania R3,Esso Unirex N3,Raremax Super N |
| Rolling Structure: |
Double Row Raceway |
| Seal Material: |
NBR .HNBR .FPM |
| Shaft Type: |
No Shoulder |
| Life: |
80,000 Kilometers |
| Retainer: |
Reinforced PA66+25% Fibre-Glass |
| Bushing Diametre: |
35mm |
| Shaft Max Diametre: |
18mm |
| Shaft Length: |
120mm |
Product Description

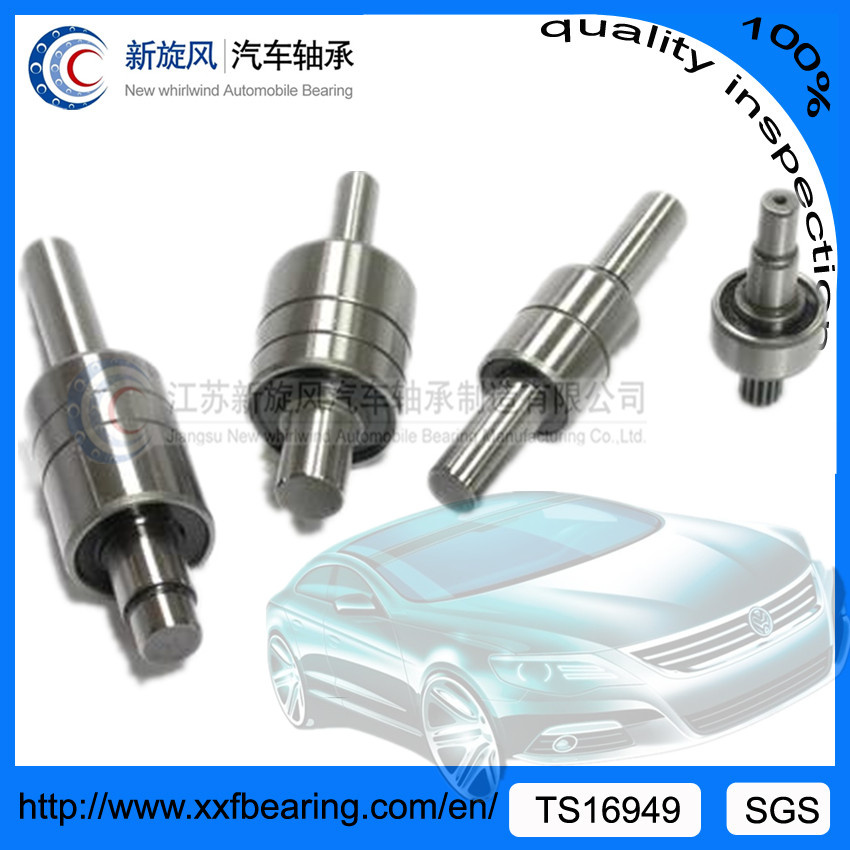

High-Class Steel Material & Strict Superfinishing Process auto part water pump bearing(16110-01010 For TOYOTA GWT-58A)
Water pump bearing is double row bearings and in contrast to conventional double row bearing, it do not have an inner ring but raceways machined directly into the surface of the shaft. As a result, there is more space available for the rolling elements, giving a higher specific load carrying capacity than that of solutions with conventional single bearings. Furthermore, it is possible to achieve economical combinations of ball and roller rows. In a small design envelope, this gives a broad range of load carrying capacities. The use of a common outer ring for two rows of rolling elements prevents misalignment defects, eliminating the risk of undesirable distortion of the bearings.
In water pump bearings, the ends of the shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections are matched to the specific application. This results in a simple, ready-to-fit bearing unit that is primarily used in water pumps for road vehicles.
However, they are not restricted to this application. Due to the advantages described above, they have a wide range of possible applications.
Products Type Of TS16949 OEM Auto Parts Manufacturing Water pump bearing
We present two kinds of double-row ball bearings for water pumps as below:
1. WB type with two rows of balls as the first picture.
2. WR type with one row of balls and one row of rollers as the second picture.
Material Of High-Class Steel Material & Strict Superfinishing Process auto part water pump bearing(16110-01010 For TOYOTA GWT-58A)
1. Shaft is industion hardened steel 100Cr 6 / 16 MnCr5 for special use.
2. The rolling element sets are made of harden steel 100Cr6.
3. Seal rings have three kinds of materials for your choose:
1) NBR which stand for Nitrile Butadiene Rubber.
2) HNBR which stand for Hydrogenated Nitrile Butadiene Rubber.
3) FPM which stand for Fluoro Rubber.
Note: different material of seal ring can be used on the two sides of the bearing.
Application Of High-Class Steel Material & Strict Superfinishing Process auto part water pump bearing(16110-01010 For TOYOTA GWT-58A)
1. Auto engine water pump
2. Fans
3. Tension pulleys
4. Vane pumps
5. Angle grinders
Size Of High-Class Steel Material & Strict Superfinishing Process auto part water pump bearing(16110-01010 For TOYOTA GWT-58A)
(We can do according to your drawings)
Jiangsu New wirlwind Auto bearing Co., Ltd is one of the leading suppliers in the field of Water pump bearings which is also named integral shaft bearing.
Our main products are 1226-3258 series water pump bearings.
Annual production capacity is 350,000 sets.
Contact US
Stephen Gu
Tel.:+86-519-88707820
Fax:+86-519-88781978
Postal code:213102
Add:Hongzhuang Industrial Park,Yaoguan Town,Wujin District,Changzhou City,Jiangsu Province,China.
|
Engine Types |
China Types |
Bushing Diametre
D |
Bushing Heigh
H |
Shaft Length
A |
Assembling Size
AH |
Assembling Size
L |
Assembling Size 1
AH |
Assembling Size 2
AH+H |
Assembling Size 3
L |
Assembling Size 4
L+H |
Shaft Max Diametre
d |
|
4L68 |
WR1835120 |
35 |
42 |
120 |
|
53 |
25 |
67 |
53 |
95 |
18 |
|
YDN485T |
WR1835120-2 |
35 |
46 |
119.5 |
|
50 |
23.5 |
69.5 |
50 |
96 |
18 |
|
YD385T |
WR1835122 |
35 |
46 |
122.5 |
|
52.5 |
24 |
70 |
52.5 |
98.5 |
18 |
XXF Bearing-Jiangsu New Whirlwind Automobile Bearing Manufacturing Co., Ltd is located in Changzhou city and we are one of the leading suppliers in 1226-3258 series integral shaft / water pump bearings and annual production capacity can reach 3, 500, 000 sets. "XXF Bearing"brand water pump bearing (integral shaft bearing) is favored and praised by the automotive engine manufacturers and its supporting water pump manufacturers. We have passed the ISO/TS16949: 2009 and our floor area is over 20, 000 square meters and more than 100 domestic first-class bearing finishing equipments equipped with CNC automatic induction quenching machines and advanced fully automated assembly lines. The total amount of these equipments is more than RMB40, 000, 000. In addition, Its "XXF CNC Machining Center" undertakes all kinds of custom precision hardware metal turning&milling Machining
Quality First is XXF Bearing policy and we have the professional technical support, advanced processing technology, strict testing machines, equipped with professional precision measurement rooms containing sets of roundness measuring equipment, metroscope, contourgraph, metalloscope, microhardness tester to ensure the high quality. XXF Bearing goods are sold to more than 20 provinces and cities, which can be widely used in automobiles lines, machinery and other industries. Besides that, our goods have also been sent to America, Russia, Korea and other countries. We have enjoyed high reputation both at home and abroad. People Oriented and Customers Foremost, sincerely hope XXF Bearing can cooperate with you to conspire the development and create our brilliant.
