High Contrast P2.0 Indoor Full Color LED Display with 400X300mm
Product Specifications
| Prod Model: |
P2.0-400x300mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
400X300mm |
| Cabinet Material: |
Die-Cast Aluminum |
| Lamp: |
Black |
| LED Type: |
SMD1010 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
FCC |
| Pixel Pitch: |
2mm |
| Pixel Density: |
250000dots/Sq.M |
| Scanning Mode: |
1/30scan |
| System Operating Platform: |
Win XP,Win7/8,Nt |
| IP Rating: |
IP31 |
Product Description

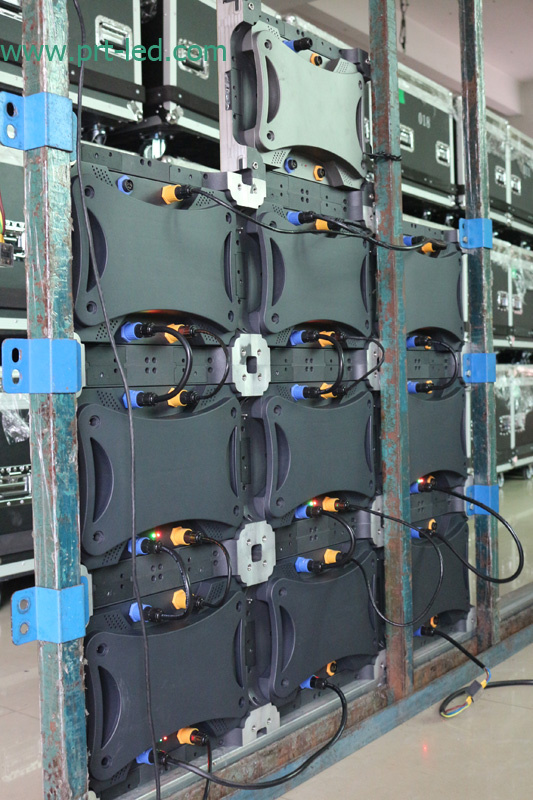

HD P2.0 indoor full color led display with die-casting aluminum cabinet size of 400x300mm,high contrast,high gray scale with MBI5153 driving IC, no strobe and flash
1.SMT led encapsulation ensure the wide view angle and high brightness
2.Combined driving PCB Board confirm the slim module,low power consumption
3.Black body led lamps confirm the high brightness,high contrast rate
4.Die-cast Aluminum material,keep strong configuration and good heat dissipation
5.Small panel size of 400×300mm and with thickness of 60mm only, lighe weight, can be taken by hands
6.Packed with flight case,easy to collect and can move to anywhere
7.With fast locks and aviation plugs,easy to install and dismantle,better for rental
8.Seamless splicing,good performance,smooth surface like a tv screen
This cabinet size also suit to Indoor led display P1.56,P1.66,P1.923,P2.0,P2.5,popular used in meeting room, conference, show ,monitor centre etc.
Indoor P2.0 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 2.0 |
| Pixel Density | Dots/sq.m | 250000 |
| Pixel Configuration |
| Black body SMD1010 |
| Cabinet Resolution | dots | 240×240 |
| Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥1500 |
| Gray Scale | Bit | 16 |
| IP Rating |
| 31 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/500 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 400×300 |
| Cabinet Material |
| Die-casting Aluminum |
| Cabinet Weight | Kg | 6.0 |
| Module Size(W×H) | mm | 200×300 |
| Environment |
| Operation Temperature | ºC | -20~+50 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/30 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
