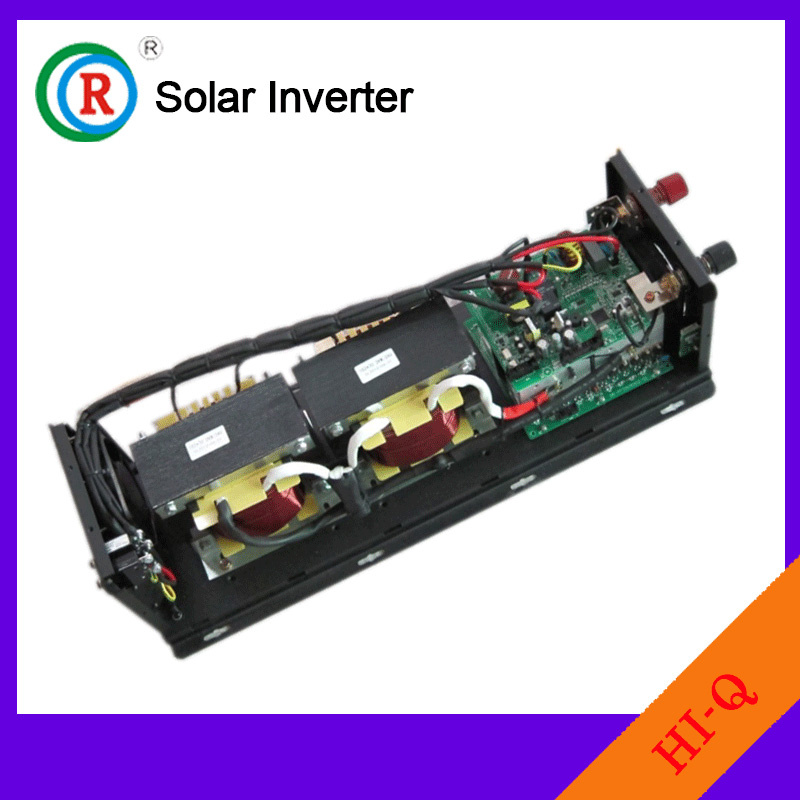

High Conversion Efficiency LCD Power Inverter (Horizontal type) (IVN-H1-4000W)

Product Specifications

Prod Model:	IVN-H1-4000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type:	Horizontal Type
Industry:	Solar Energy
Capacity:	1-4kw
Product Grade:	High -Quality/Intelligent Control
Delivery Time:	1-3 Working Days
Warranty:	1-Year Warranty and Life-Time Service
Export Markets:	Global
Type:	DC/AC Inverters
OEM:	Yes
Customize:	Yes
Application:	Industrial
Specification:	Normal

Product Description

1. The synopsis of Multifunctional Sine Wave Inverter

Multifunctional Inverter is pure sine wave intelligent inverter; Through the inverter power supply, 12V/24V/DC48V DC battery can be converted into 100V/110V/120V/220V/230V/240V AC Alternating Current, Used to power the load; Also, it is a intelligent charger.

Solar power generation system for DC12V or DC24V or DC48V;


2. The core advantage:

CPU intelligent management,
Latest American technical inverter,
Adopted best electronic components, stable quality, long-life,
The high conversion efficiency( 90%~99%),
Low power consumption, 1W~6W under sleep state.


3. Working Mode

This is a pure sine wave inverter with battery charger and UPS function. This is supplied directly by main electricity. When the voltage of the main electricity is too high or too low, the inverter will regulate the main electricity automatically. Then the output AC power is stable enough for the appliances.

When the main electricity cuts off, then the appliances is automatically switch to supplied by batteries.

The inverter will convert the DC power from battery bank to pure sine wave AC power to drive the loads.


4. Usage Instruction

(1) The inverter can be used in large goods vehicles, business vehicles, agricultural vehicles, military car, communication car, outdoor working truck or the ship etc. The DC connections can be connected with batteries in vehicles. The inverter can convert the DC power inverter from batteries to pure AC power. The AC power can supply the AC devices in car or boats.

Users also can fix the extra battery bank and the inverter in car or boat. Generally the inverter can be used to charge the battery bank intelligently. When go out and need the AC power, then users can use the stable pure sine wave AC power.

(2)When used as small power EPS emergency supply: When the AC power(utility) is available, the loads are supplied by AC power firstly. When the voltage of the utility is too high or too low, the inverter will automatically regulate the voltage through internal Step-down or step-up winding; Make the output AC power more stable and at the same time the inverter charge the batteries. When the utility AC power becomes abnormal or cut off, then the loads powered by batteries. The inverter converts the DC power from batteries to pure AC power to power the loads. When the utility becomes normal, it automatically switch to use the utility. All conversions are intelligent and full automatic.


5. The product features of Solar / wind power inverter

Pure sine wave output;

Built-in transfer switch automatically transfers between inverter power and incoming AC power.

CPU management, intelligent control, module design.

LED/LCD display function;

High conversion efficiency (between 90%-98%) low consumption.

Can match with all kinds of batteris, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.

Three-step intelligent charging mode available. It charges all kinds of batteries intelligently. And the maximum charging current is adjustable.

It also can be used as a charger.

This series inverter is also called dynamic inverter according to the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning. 2KW can drive 2P air conditioning, 3KW can drive3P air conditioning etc.

With adopting latest American low frequency circuit design, and new electronic materials, the whole system is more stable, low malfunction rate, long-life. It is no problem to use for more than 8 years under the normal use.

Model		1000W-6000W
DC Input		1KW-3KW: DC12V/DC24V/DC48V(Select one) 4KW-6KW: DC24V/DC48V(Select one)
AC ouput		AC220V/AC110V/AC100V/AC230V/AC240V (Select one)
Nominal Output Frequency (Hz)		50H/60HZ(Automatic selection)
UPS function		Yes  (Can give up the use )
AC charging function		Yes    (Can give up the use )
Utility Model Specifications
			AC220V			AC110V
Efficiency			≥ 98%
Input Wave Type			Pure sine wave (utility or generator)			Pure sine wave (utility or generator)
Input Voltage Range			AC 154V~AC263V			AC 77V~132V
Nominal Input Voltage			220Vac/230Vac/240Vac			110Vac/120Vac/130Vac
Low Voltage shutoff			154Vac± 4%			77Vac± 4%
Low Voltage Recovery			164Vac ± 4%			82Vac ± 4%
Over voltage Shut off			263Vac± 4%			132Vac± 4%
Over Voltage Recovery			253Vac± 4%			127Vac± 4%
Nominal Input Frequency			50Hz/ 60Hz (auto detect)			50Hz/ 60Hz (auto detect)
Output Wave Type			Same as the input wave type			Same as the input wave type
Transfer Time (Ac to Dc)			< 10ms			< 10ms
Transfer Time (Dc to Ac)			< 5ms			< 5ms
Inverter Mode Specification
Power Factor				1 (Sufficient output power)
Rated Output Voltage (V)				220Vac/230Vac/240Vac			110Vac/120Vac/130Vac
Nominal Output Frequency (Hz)				50/60 ± 0.3Hz (auto detect)
Output Voltage Range				± 10% rms
Efficiency				> 88%        (DC12V: > 88%, DC24V: > 90%, DC48V: > 94%)
Over-Load Protection				(110%< load< 125%) ± 10%: Fault (shutdown output) after 15 minutes;
				(125%< load< 150%) ± 10%: Fault (shutdown output) after 10s;
				Load> 150% ± 10%:   Fault (shutdown output) after 20s;
Low Battery Alarm				10.5Vdc ± 0.3Vdc (If  12V Input)
				21.0Vdc ± 0.6Vdc (If  24V Input)
				42.0Vdc ± 0.6Vdc (If  48V Input)
Low DC input voltage automatic shut-down				10.0Vdc ± 0.3Vdc(If  12V Input)
				20.0vdc± 0.6Vdc (If  24V Input)
				40.0vdc± 0.6Vdc (If  48V Input)
High DC input voltage warning & outage				16Vdc ± 0.3Vdc (If  12V Input)
				32Vdc ± 0.6Vdc (If  24V Input)
				64Vdc ± 0.6Vdc (If  48V Input)
High DC input voltage Recover				15.5Vdc ± 0.3Vdc(If  12V Input)
				31.0Vdc ± 0.6Vdc (If  24V Input)
				62.0Vdc ± 0.6Vdc (If  48V Input)
Power-saving mode				< 10W
Power on mode				20W~60W
Safety				CE, EMC, LVD, SGS, ISO9001
Communication port				RS232
Cooling				Cooling-Variable Speed Fan run under ventilation condition.
Operating Temperature Range				0° Cto 60° C
Storage temperature				-15º C~60º C
humidity				5% to 95%
Noise				Max 60dB
Detailed parameters of electrified wire netting to battery charging
Model Specification 1012 1024 2012 2024 3012 3024 3048 4024 4048 5024 5048 6024 6048 Input voltage 110Vac/120Vac/220Vac/230Vac Input voltage range 88-127Vac/165-255Vac Output voltage Depend on the batter type Charge current 35A 20A 65A 35A 75A 45A 30A 35A 35A 35A 40A 75A 50A Charging the inverter for intelligent charging, The size of the charge current is determined by the. The regulation of the inverter. Capacity of the battery at. battery voltage Charge current correction ± 5A Initial Charge Voltage Normal batteryvoltage  9.0- 15.7V  /  18.0 - 31.4V  /  36.0 - 62.8V Charger short-circuit protection Circuit Breaker Circuit breaker 10A 20A 30A 40A Over voltage protection When the battery voltage > 15.7Vdc/31.4Vdc/62.8Vdc, every second sounds 0.5 second, it breaks down after 60 seconds. model Net weight (KG) gross weight (KG) product size (L*W*H)MM package size (L*W*H)MM 1KW 12 13 358*188*168 480*330*285 1.5KW 18 19.2 425*188*168   535*330*285 2KW 19.5 20.9 425*188*168   535*330*285 3KW 24 25.4 425*188*168   535*330*285 4KW 36 37.5 622*188*168   730*330*285 5KW 41 43 622*188*168   730*330*285 6KW 44 46 622*188*168   730*330*285 For reference only, if there is a change without notice If you want to purchase this product, Please make sure the following parameters.
Power rating					1KW, 1.5KW, 2KW, 3KW, 4KW, 5KW, 6KW
DC volts					DC12V. DC24V/DC48V/DC36V
AC volts					AC110V \. AC220V/AC100V/AC120V/AC230V/AC240V
Frequency					50HZ /60HZ
The UPS function					YES /NO
The use of occasions					Solar /Wind/Car/Family expenses/Industrial use/other
AC priority use / DC priority use					AC priority use / DC priority use
If  DC priority use					There are two kinds of  programming: 1, every time it starts, After the batteris is full, and then converted to DC supply. 2, After the batteris is 13.5V/27V/54V, and then converted to DC supply.
AC charging function					YES /NO
Trade Terms					EXW, FOB, FCA, FAS, CIF, CFR, DEQ, and so on
