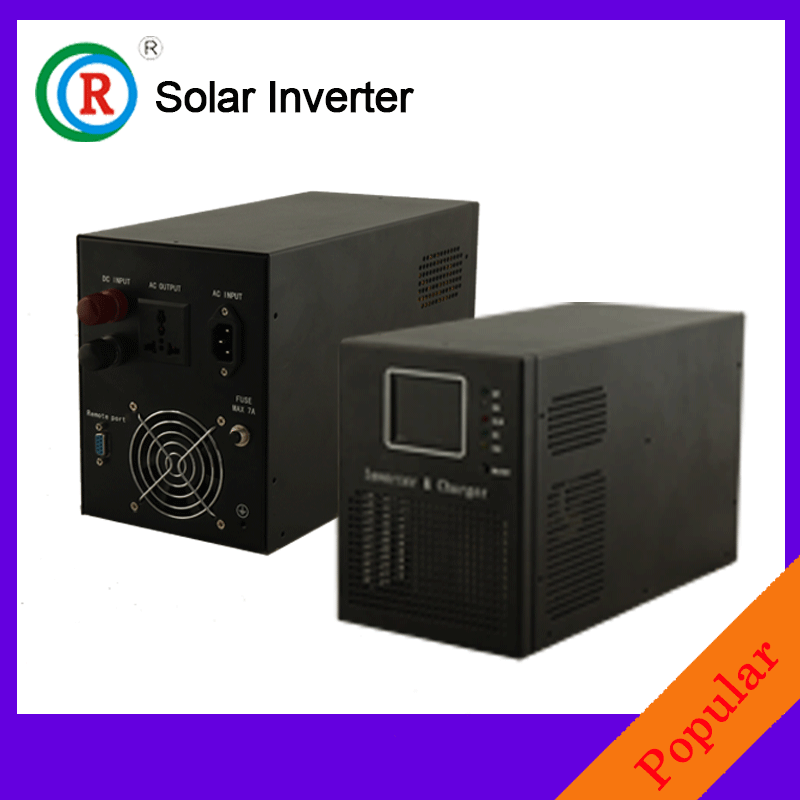

Product Advantage:
1. CPU intelligent management;
2. Latest American technical inverter;
3. Adopted best electronic components, stable quality, long-life;
4. The high conversion efficiency reach to 90%-99%;
5. Low power consumption, when power is in 1W-6W, under sleep state.
Product Feature:
1. DC batteries is converted into AC pure sine wave output;
2. Built-in transfer switch automatically transfers between inverter power and incoming AC power.
3. CPU management, Intelligent control, module design;
4. LED / LCD display function;
5. The inverters' high conversion efficiency can reach to 90%-99%, and it has lower power consumption.
6. It can match with all kinds of batteries, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.
Attention please: If you want inverters to match the lithium batteries, you should tell me the lithium batteries specifications.
7. Three-step intelligent charging mode available. It charges all kinds of batteries intelligently, so can be used as a charger. And the maximum charging current is adjustable.
8. It is also called dynamic inverter that has the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning, and 2KW can drive 2P air conditioning etc.
9. This kind of inverter adopts latest American low frequency circuit design and new electric materials. The whole system is more stable, low malfunction rate, and long-life. There is no problem to use for more than 5 years under the normally using.
10.1-year warranty plus life-time service.
11. Protection function:
(1) High voltage protection
(2) Under-voltage protection
(3) Over-temperature shutdown
(4) Automatic overload protection
(5) Short-circuit protection
|
Utility Model Specifications |
|
|
AC220V |
AC110V |
|
Efficiency |
≥98% |
|
Input Wave Type |
Pure sine wave (utility or generator) |
Pure sine wave (utility or generator) |
|
Input Voltage Range |
AC 184V~AC253V |
AC 75V~135V |
|
Nominal Input Voltage |
220Vac |
110Vac |
|
Low Voltage shutoff |
184Vac±4% |
92Vac±4% |
|
Low Voltage Recovery |
194Vac ±4% |
97Vac ±4% |
|
Over voltage Shut off |
253Vac±4% |
127Vac±4% |
|
Over Voltage Recovery |
243Vac±4% |
122Vac±4% |
|
Nominal Input Frequency |
50Hz/ 60Hz (auto detect) |
50Hz/ 60Hz (auto detect) |
|
Output Wave Type |
Same as the input wave type |
Same as the input wave type |
|
Transfer Time (AC to DC) |
<5ms |
<5ms |
|
Transfer Time (DC to AC) |
<5ms |
<5ms |
|
Inverter Mode Specification |
|
Power Factor |
1 (Sufficient output power) |
|
Rated Output Voltage (V) |
220Vac/230Vac/240Vac |
110Vac/120Vac/130Vac |
|
Nominal Output Frequency (Hz) |
50/60 ± 0.3Hz |
|
Output Voltage Range |
±10% rms |
|
Efficiency |
>90% (DC12V:>90%,DC24V:>92%,DC48V:>94%) |
|
Overload Protection |
(110%
|
|
|
(125%
|
|
|
Load>150% ±10%: Fault (shutdown output) after 20s; |
|
Low Battery Alarm |
10.5Vdc ± 0.3Vdc (12V Input) |
|
|
21.0Vdc ± 0.6Vdc (24V Input) |
|
|
42.0Vdc ± 0.6Vdc (48V Input) |
|
Low DC input voltage automatic shut-down |
10.0Vdc ± 0.3Vdc(12V Input) |
|
|
20.0vdc± 0.6Vdc (24V Input) |
|
|
40.0vdc± 0.6Vdc (48V Input) |
|
High DC input voltage warning,then shut down |
16Vdc ± 0.3Vdc (12V Input) |
|
|
32Vdc ± 0.6Vdc (24V Input) |
|
|
64Vdc ± 0.6Vdc (48V Input) |
|
High DC input voltage Recover |
15.5Vdc ± 0.3Vdc(12V Input) |
|
|
31.0Vdc ± 0.6Vdc (24V Input) |
|
|
62.0Vdc ± 0.6Vdc ( 48V Input) |
|
Power-saving mode |
≤ 10W |
|
Power saving on |
20W~60W |
|
Safety |
CE EMC |
|
Communication port |
RS232 |
|
Cooling |
Cooling-Variable Speed Fan run under ventilation condition. |
|
Operating Temperature Range |
0°C to 60°C |
|
Storage temperature |
-15ºC~60ºC |
|
Humidity |
5% to 95% |
|
Noise |
Max 60dB
|
