Shenzhen Topvision Co., Ltd. >> High Definition 5mm Indoor Rental LED Display for Stage/Event Applications

High Definition 5mm Indoor Rental LED Display for Stage/Event Applications

High Definition 5mm Indoor Rental LED Display for Stage/Event Applications
Supplier: Shenzhen Topvision Co., Ltd.
Price: NegotiableUSD
Min Order: 1/Square Meter
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: TZ5.14
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Guarentee: 2 Years
Refresh Rate: 600Hz
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/8 Scan
Display Function: Video Display
Tube Chip Color: Full Color
System Operating Platform: WIN XP
Certification: RoHS

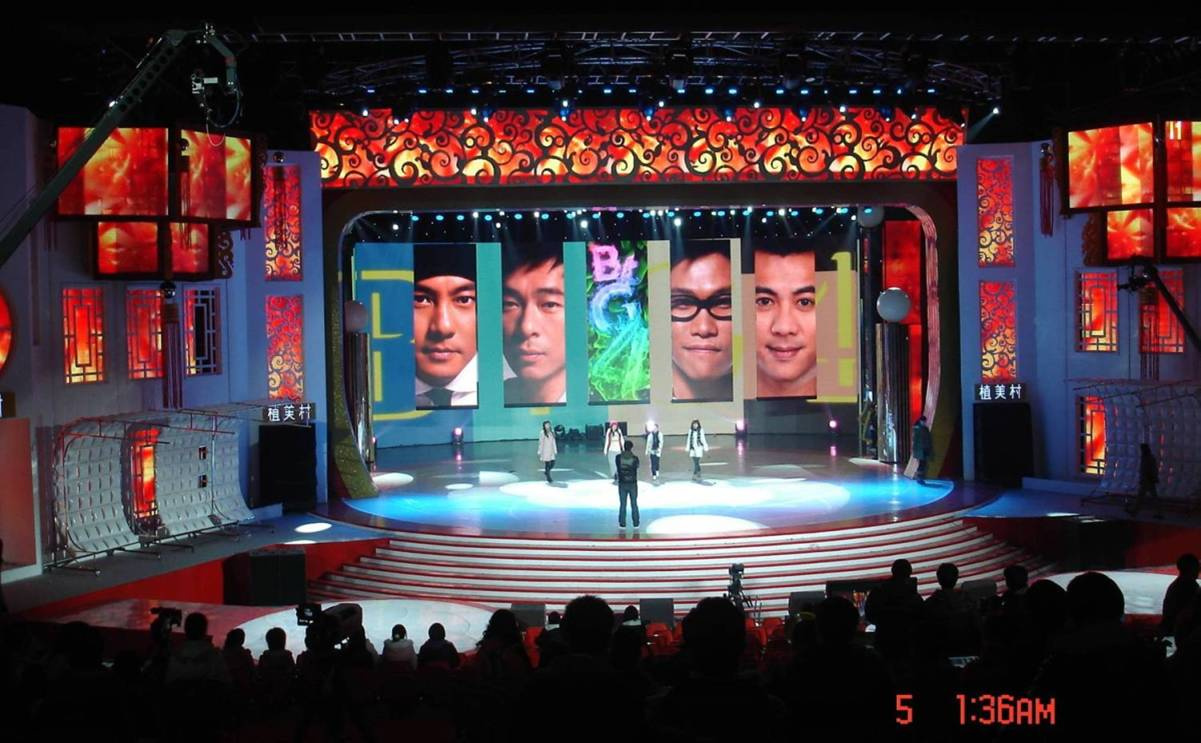

Application: Stage Performance
Pixel Pitch: 5.14mm
Pixel Density: 37,850 Pixel/M2
IP Rating: IP31

Product Description

TZ5.14

The premium 5.14mm die casting LED display system for indoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.

Features:
1. Fast assembly design, save your time in the assembly.
2. Anti-deformation die casting aluminum cabinet, Beautiful appearance
3. The cabinet thickness is less than 115mm, the cabinet weight is only11.5kgds/tile.
4. Unique fast lock system on the cabinet assembly and door opening
5. Adopt the DC cooling fans, less noise for indoor use.
6. Adopt the newly geometric design on the face cover deep black, high contrast
7. Wide viewing angles, the images visible in more than 160 degree viewing angles.
8. Neutrik connectors are adopted, fast assembly, durable.
9. Support hanging and stacking, suitable for both fixed install and rental activities.
Model  Number TZ5.14
Description Die  casting  aluminum  cabinets  with  hanging  function
Application Indoor  use,   advertising  or  rental  use
Pixel  configuration 1R1G1B  SMD  3-in-1  3528  style  LED
Pixel  pitch 5.14mm
Pixel  resolution  per  standard  cabinet 112  x  112  pixel
Standard  cabinet  dimension 576  x  576  x  115  mm
Module  size  288  x  288  mm
Pixel  resolution  per  module 56  x  56  pixel
Pixel  density  per  m2 37, 850  pixel/m2
Minimum  viewing  distance  5  m
Brightness 2, 000  CD/  m2
Grey  scale  4096  steps
Color  Number 68.7194billion
Display  Mode Synchronous  with  video  source
Data  refresh  rate  ≥ 600HZ
Driver  IC MBI5024
LED  drive 1/8  scanning,   constant  current
Control  system  type LINSN
Control  software  name LED  Studio
Viewing  angle Vertical  120°   Horizontal  120°
Temperature  range  -10 centi degrees to  +50 centi degrees
Ambient  humidity 10%-99%
Service  access Rear
Standard  cabinet  weight  11.5  kg
Power  consumption Maximum:   300  W/cabinet,     average: 150  W/cabinet
Protection  level Front:   IP31,     rear:   IP31
Lifetime  to  50%  brightness 75, 000  h
LED  failure  rate < 0, 00001  (LED  display  line  standard  < 0, 0001)
MTBF >   10, 000  h
Founded in Shenzhen, Shenzhen Topvision Co., Ltd.Is a corporation that integrates the design, development, manufacturing and sales of LED displays, and is persistently focusing on the design, manufacturing and services.TopVision brings innovative concepts and creative energy to the LED display industry and builds upon a leading professional enterprise with new LED display solution concepts.

Topvision covers an area of 25, 000 square meters with over 500 employees.Our production capacity has reached 5, 000 square meters per month.After carrying out ISO9001:2008 system and working on ERP system, we have formed a complete set of management system from research, production, installation to final test and qualified shipment.with the development, our products have gradually passed CE, FCC, RoHS certifications and the quality test by China technical supervision departments.

Topvision has promoted a variety of high-quality and environmentally friendly products to the global markets.These achievements have attributed to many joint efforts by hundreds of customers in the United States, Europe, Australia, South Africa, Hong Kong, Taiwan area, Thailand, India, and China (South, North and East China).
