High Definition Intel H61thin Mini-Itx Motherboard

High Definition Intel H61thin Mini-Itx Motherboard
Supplier: Huizhou Dayawan Fox Etech Limited
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,EXW,CIF
contact supplier

Product Specifications

Prod Model: ITX-Q67AM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display: VGA, HDMI, Lvds
Printed Circuit Board: Four Layers
Audio Effects: Not HiFi
SATA Interface: SATA2.0
Main Chipset: Intel
Structure: Mini-ITX
Memory: DDR3
Integrated Graphics: Integrated Graphics
CPU Socket: LGA 1155
Maximum Memory Capacity: 8G
Main Board Structure: Integrated

Product Description

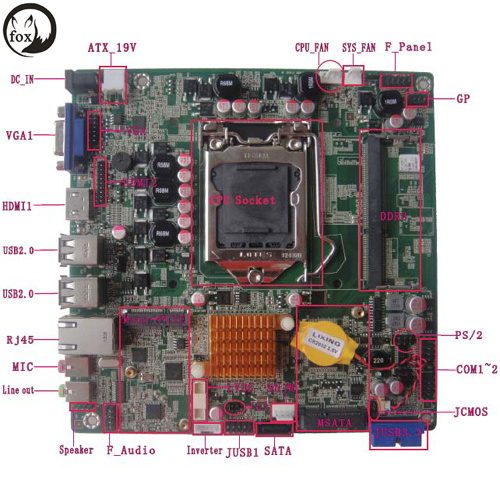

High Definition Intel H61Thin Mini-ITX Motherboard

Features
1. Intel LGA1155 CPU.
2. Support HDMI/HDMI/VGA/LVDS any double screen display.
3. Hard decoding 1080P HD video, support 1920*1200
Resolution ratio.
4.2 standard Mini-PCIE, 1 LAN, 2 COM.
5.17*17*2.2cm.
6.19V DC IN.
Main  CPU Intel CPU with full range of LGA1155 interface
Chipset Intel H61 chipset (Sandy Bridge platform)
Memory SO-DIMM DDR3-800/1066/1333MHz
Up to  8 GB
Bios SPI AMI EFI bios
Support ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
Display IC Intel HD Video (different CPU, different performance)
Port/Header 1 VGA Port, 1 VGA header
1 HDMI Port, 1 HDMI header
1 Dual channel 24bit LVDS
LAN Speed 10/100/1000Mbps auto adapting
Interface 1 RJ45
Audio Interface 1 line-out, 1 MIC
1 standard front audio pin, 1 5w  AMP   speaker  header
USB Speed USB2.0 480Mb/s
Port/Header 4 USB Port,2 USB header
Storage SATA 1 standard SATA2 port
1 Mini-PCIE for SSD MSATA
IO Port/Header 2 COM standard RS232 header
Others PCI 1standard Mini-PCIE port, support 3G
GPIO 1   input and output programming pin
Power-In 1 1*3_K2 2pin VH port, 19v DC input
PCB Spec 170*170*22mm,4layer green
O.S Windows WIN2000/XP/WIN7
Others Unix/Linux
Work  Temp T range - 1 0~ 5 0C
H range 0~85%RH
Huizhou Dayawan Fox Etech Limited build in 2006, specialize in producing and selling Thin Client, Mini PC, All-In-One Computer, Embedded Computer, Industrial Motherboard and etc.

Our company's operating philosophy is "more refined, more powerful. "We always adhere to this quality policy, "the quality get market opportunities, services to win customer satisfaction, innovation promote business progress, a truth-seeking creat companies brilliant. " Pursue the eternal customer principles "credibility first, quality first and service-oriented. "

We insist on Market-oriented, technology- fundamental. In recent years, our companies get big radiation increasing in the domestic business scope, won the praise of customers, with significant achievements in the industry. Building long-term customer relations with many Middle East\European and South American companies. Rely on technological progress, we change the pressure of competition as a driving force, whick make the company's new products, new processes emerge time by time.

With the idea of "quality, service, price, " and the spirit of fighting innovation, FOX Etech LIMITED continuous self- transcendence, our company become bigger and stronger, we will provide quality services to more customers. Your satisfaction is our pursuit! We look forward to working with you to become a long-term win-win partnership!
