Guangzhou Ticode Electronics Technology Ltd. >> High Density Auto Handheld Bar Code Reader (TS2400HAT)

High Density Auto Handheld Bar Code Reader (TS2400HAT)

Name: High Density Auto Handheld Bar Code Reader (TS2400HAT)
Brand: china-manufacturer-directory.com
SKU: 747174245
Availability: InStock
Rating: 4.5 (148 reviews)

Supplier:	Guangzhou Ticode Electronics Technology Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	TS2400HAT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution:	3mil
Scanning Rate:	200scans Per Second
Scan Model:	Handheld/Automatic Scanning
Interface Type:	USB, RS232, PS/2
Scanning Light Source:	Laser
Application:	Commercial/Industrial
Ingress Protection:	IP54
Bit Error Rate:	1/5million
Material:	ABS+PC/TPU
Color:	Yellow/Black
Certification:	FCC
Data Collector Signal Transmission:	Wired
Type:	Barcode Scanner
Data Collector Operating System:	Windows XP/Vista/7/8/8.1/Mac OS X/Android, Linux

Product Description

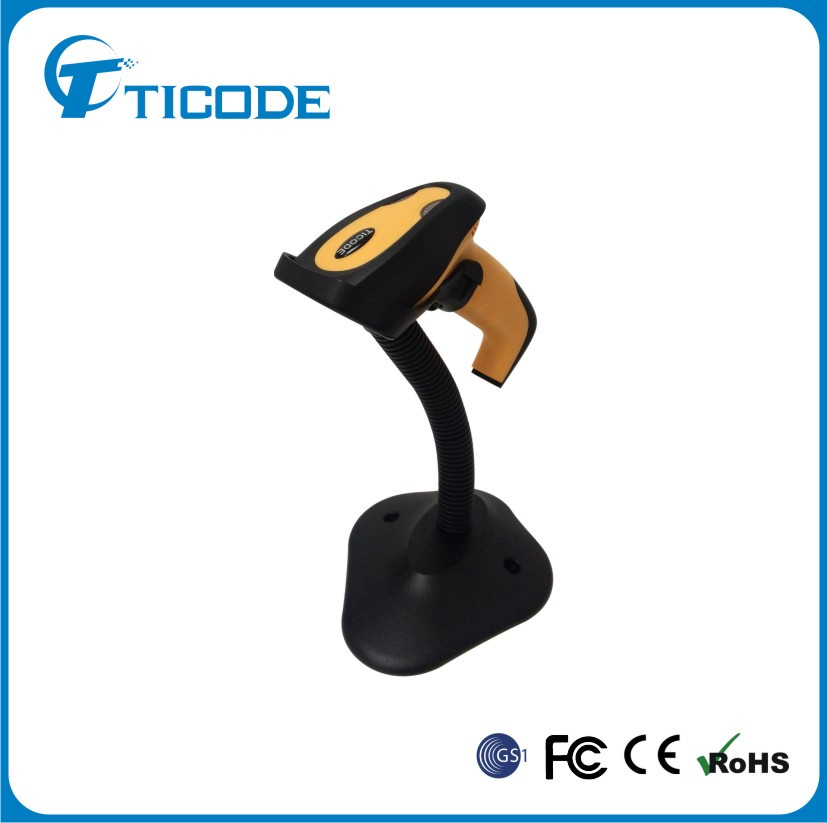

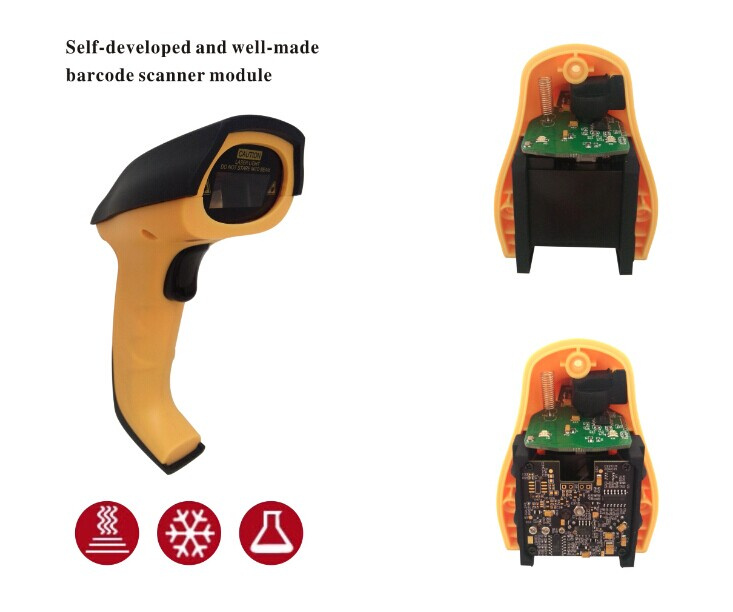

High Density Auto Handheld Bar Code Reader

Features:
1. Stronger decode capability 32 bit: upgrade to 32-bit Decoder, plug-and-play allow novice and advanced users to process items more rapidly and spend less time keying in data.
2. Resistance to 6 ft./ 1.8m drops and IP54: the ability to survive 6 ft./ 1.8m drops to concrete - and IP54 sealing, ensuring reliable operation in spite of everyday spills, drops and bumps.
3. Long range of scanning distance 1.8m: Advanced high-performance laser engine, reliable transmission.

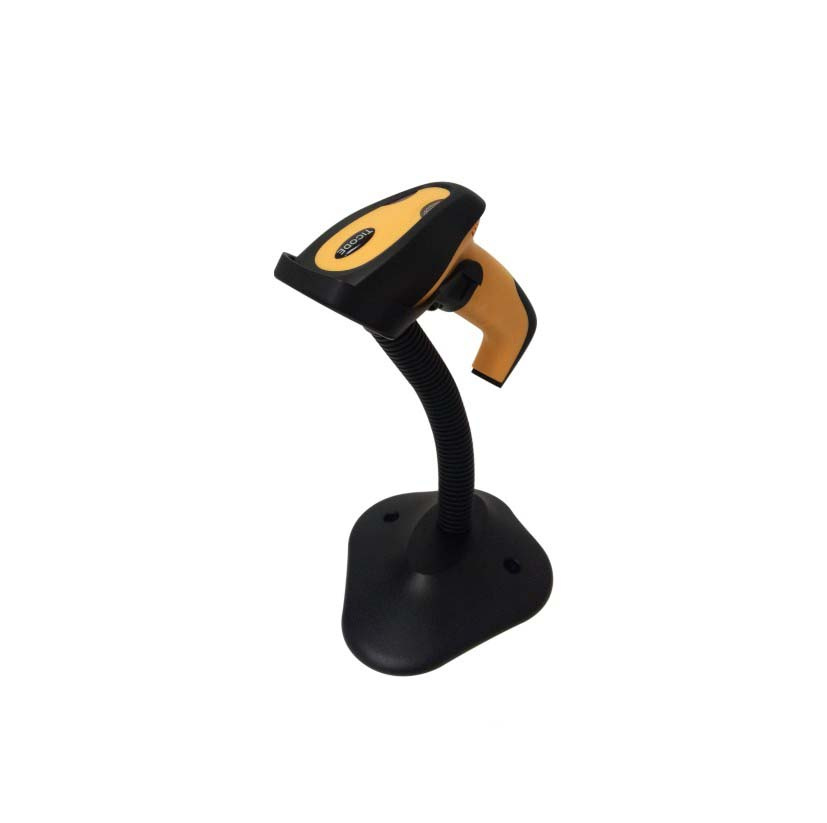

4. Optional stand for hands-free scanning:automatic scanning whether it is used in hands or with the optional hands free stand.
5. Plug and play,support output editor.

Specifications:

1. Model: TS2400HAT

2. Resolution: 3mil

3. IP54 for industrial use

4. Interface: Support USB, PS/2, RS232

5. CPU: 32 bit decoder inside

6. Scanning speed: 200 scans/s, high speed Scanner

7. With dynamic and fuzzy technology: Poorly printed and damaged barcodes can be easily readed.

Package contents:
1 * Laser barcode scanner
1 * Intellistand

1 * USB cable

1 * User manual

Model: TS2400HAT
Functionality Item	Performance Parameter
Sealing	IP54 (water and dust resistant)
Resolution	0.08mm(3mil)
Type of illuminant	650nm laser
Safety performance	Meet the Grade II National Criteria for Laser Safety
Use type	Hand-held or bracket-held installation
Alert Mode	Indicator and Buzzer
Reading speed	200 times/second
Bit error rate (BER)	1/5 million
Barcode types	UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,Codabar, Code 128,Code 93,Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code,GS1 Data Bar (formerly RSS) etc.

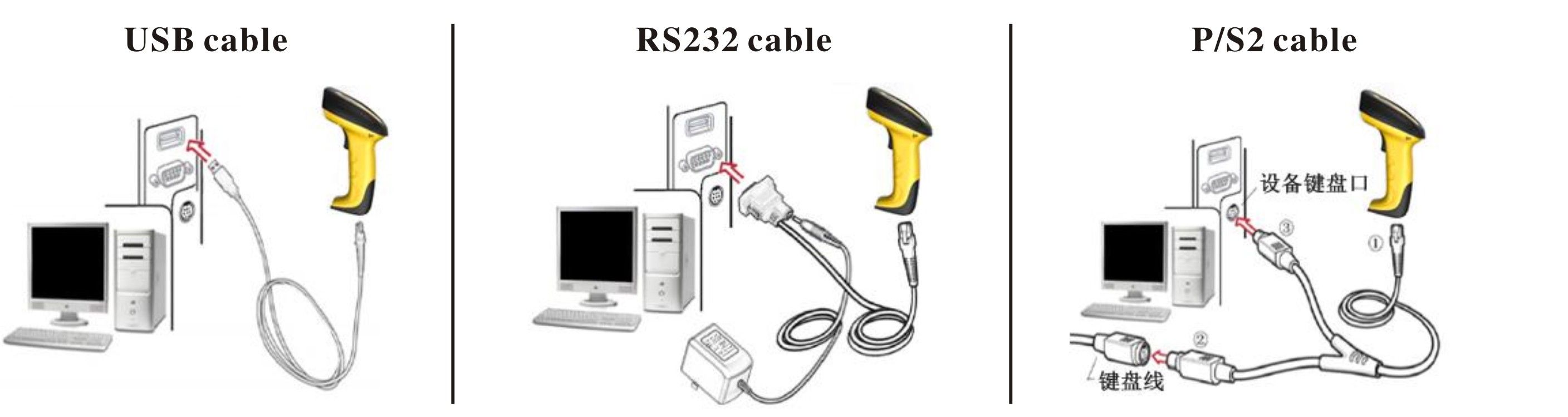

Supported interfaces	USB, RS232, PS2 keyboard, USB-COM
Scanning method	Manual, Continuous Scanning,Auto
Print Contrast	20% minimum reflective difference
Reading angle of elevation	60°
Reading angle of dip	45°
Operating temperature	0°C - 45°C
Storage temperature	-40°C - 60°C
Relative Humidity	5% - 90% (non condensing)
Power voltage	DC 5V±5%
Current	25mA(Operating mode),90mA(Maximum peak)
Materials	ABS+PC/TPU
Shock	1.8m drop on concrete surface
Light intensity	Daylight 4000Lux max
Ambient Light Immunity	Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight

Located in core area of Guangzhou Science City, Guangzhou Ticode Electronics Technology Ltd is a executive enterprise of the government's science projects and it is a high-tech enterprise that specializes in R&D and manufacturing barcode identification equipment.

Born in South China University of Technology, Ticode is well known for its leading technology. It has a highly educated and professional team engaged in hardware design, software development and system integration. And Ticode is the one of the first companies to start and develop in the field of 32-bit decoder and dynamic fuzzy decoding technology in China. The patented designs enable Ticode as a barcode application pioneer with performance vantages in the barcode identification industry.

In pursuit of reliable and stable quality, Ticode has perfect management and strict quality control. Certificated by CE, FCC and RoHS its products are widely used in industry, commerce, taxation, national defense, transportation, finance, health care and postal sectors, while the products are exported to Europe, America, South Africa, Australia, MID-east and South-east Asia etc. Up to now, its annual production capability of barcode scanners has reached up to 300, 000PCS.

In near future, Ticode would establish it as a world-class professional barcode scanning equipment manufacturer and hope to have win-win trade with customers.
