Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Water Well Drill Rig |
| Color: |
Yellow,etc. |
| Hole Depth(M): |
150 |
| Hole Diameter(Mm): |
90~1200 |
| Transport Status: |
6700*2020*2750 |
| Dimensions(Mm) (L-W-H): |
4910*2020*6650 |
| Rig Mass(Kg): |
3400 |
| Feed Thrust(Kn): |
0-15 |
Product Description
Well Drilling Machine Price
Advantage
1. Move easily & good mobility
2. Simple operation & high efficiency
3. Commercial Price.
Application
1. Drilling wells for urban and rural life
2. Drilling wells for agricultural irrigation and industries
3. Drilling for geotechnical survey
4. Drilling construction engineering holes
5. Drilling geothermal pump wells
Technical Parameter
Item |

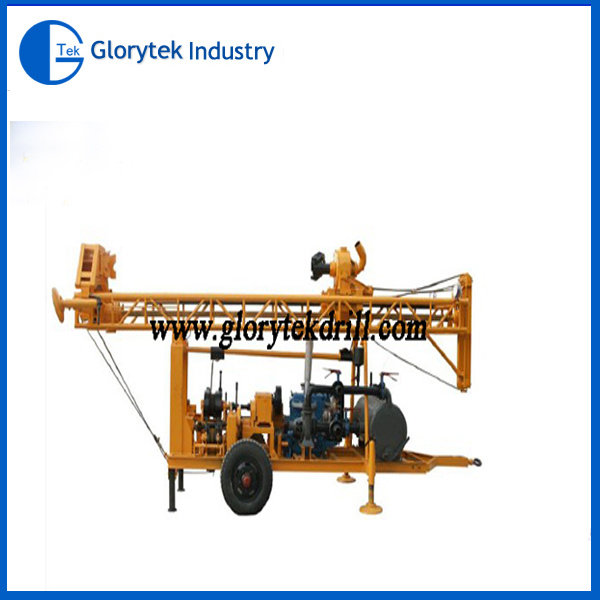

GL-II Trailer Mounted Drill |
Hole Diameter (mm): |
90-1200 |
Hole Depth (m): |
150 |
Run of Rod (m): |
3 |
Drill Rod Diameter (mm): |
φ60,φ73,φ89,φ95,φ133 |
Drill Head Inside Diameter (mm): |
φ35,φ60,φ81,φ120 |
Rig Mass (kg): |
3400 |
Drilling Technology: |
Normaland Reverse Circulation for Both Mud and Air |
Down-The-Hole Hammers: |
Middle-High-Pressure Air |
Drill Head Lifting Speed (m/s): |
0.25 0.15 |
Drill Head Lifting Force(kN): |
55.4 94.55 |
Feed Thrust (kN): |
0-15 |
Drill Head Spin Speed (r/min) : |
A(Forward:13-22-48, Reverse:10-17-36) |
B(Forward: 48-84-184, Reverse: 37-65-142) |
Main Hoist Lifting Force (kN): |
18.54 |
Pump: |
LBN-20Normaland Reverse Circulation Pump Group |
Flow (m3/h): |
80 |
Power Unit: |
Diesel Engine |
Power(Kw): |
40 |
Mast Up and Down: |
Mechanical type |
Chassis: |
Trailer with two wheels |
Dimensions(mm): (L-W-H) |
Working Conditions: 4910*2020*6650 |
Transport status: 6700*2020*2750 |
Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
Our Company
Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers.
Scope of products:
Blasthole Drilling Rigs
1: Compressor Integrated Type
2: Compressor Separated Type
Water Well Drilling Rigs
1: Truck Mounted Type
2: Crawler Type
3: Trailer Type
Piling Machinery
1: Rotary Drilling Rigs
2: Anchor Drilling Rigs
3: Auger Drilling Rigs
Drilling Auxiliaries
1: DTH Hammer and Bits
2: Button bit, Chisel bit, Cross Bits
3: Drill Pipe or drill Rod
4: Tricone Bits
5: PDC Bits
6: Downhole motor or Mud Motor
7: Pumps
