High Efficiency Good Quality Swdust Dryer Machine (HGJ-I, II, III)
Product Specifications
| Prod Model: |
HGJ-I, II, III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Pipe Dryer Machine |
| Materials: |
Sawdust, Rice Hull, Corn Stalk etc |
| Drying Way: |
Hot Air Flow |
| Working Manual: |
Can Be Provided |
| Warranty Time: |
One Year |
| Delivery Time: |
15days After Getting The Advance Payment |
| Delivery Port: |
Shanghai, Qingdao, Tianjin |
| Contact Person: |
Jenny Ding |
| Phone: |
+86 15038222403 |
| Skype: |
Racy.Ding |
| Structure: |
Air Flow Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
Product Description

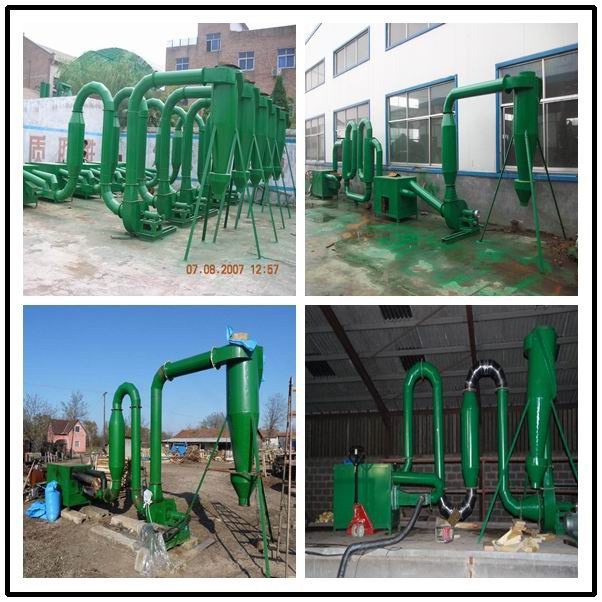

Pipe dryer machine
Introduction:
Working principle: In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and mateirls suspending in air stream, the heat transfter surface between air and raw mateiral is large, so the heat transfer rate is high.
It is special suitable for drying heat sensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on. It also can be used for drying the grain better.
The HGJ SERIES dryer has the feature of low cost and high efficient. It can reduce moisture from 40-45% to 8-12%.
Fuel for the furnace: Wood waste, coal. Waste oil and so on.
| Model | HGJ-I | HGJ-II | HGJ-III |
| Capacity-kg/h | 300-400 | 400-500 | 800-1000 |
| Diameter of raw-mm | < 3mm & < 5mm | < 3mm & < 5mm | < 3mm & < 5mm |
| Air temperature-°C | 180°C~250°C | 180°C~250°C | 180°C~250°C |
| Centrifugal power-Airlock power-kw | 4 | 5.5 | 7.5 |
| Material in feed | 20mm | 20mm | 20mm |
| Consumption-kg/h | 10kg/h | 20kg/h | 25-30kg/h |
| Weight/kg | 2000 | 3000 | 4500 |
| Dimension-meter | 20*0.85*2.2m | 30*0.85*2.5 | 50*0.95*2.7 |
| Moisture-max-°C | 35-45 | 35-45 | 35-45 |
| Dried-max-°C | 8-12 | 8-12 | 3-10 |
