Product Specifications
| Prod Model: |
pf1315 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rotor Diameter X Length: |
1300 X 1500mm |
| Max Feed Size: |
350mm |
| Capacity: |
120-260t/H |
| Dimensions: |
2930mm X 2760mm X3050mm |
| Type: |
Impact Crusher |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Motor Power: |
6-200kw |
| Application: |
Mining,Cement,Concrete Industrial |
| Materials: |
Ore,Rock |
| Inlet Size: |
860X1520mm |

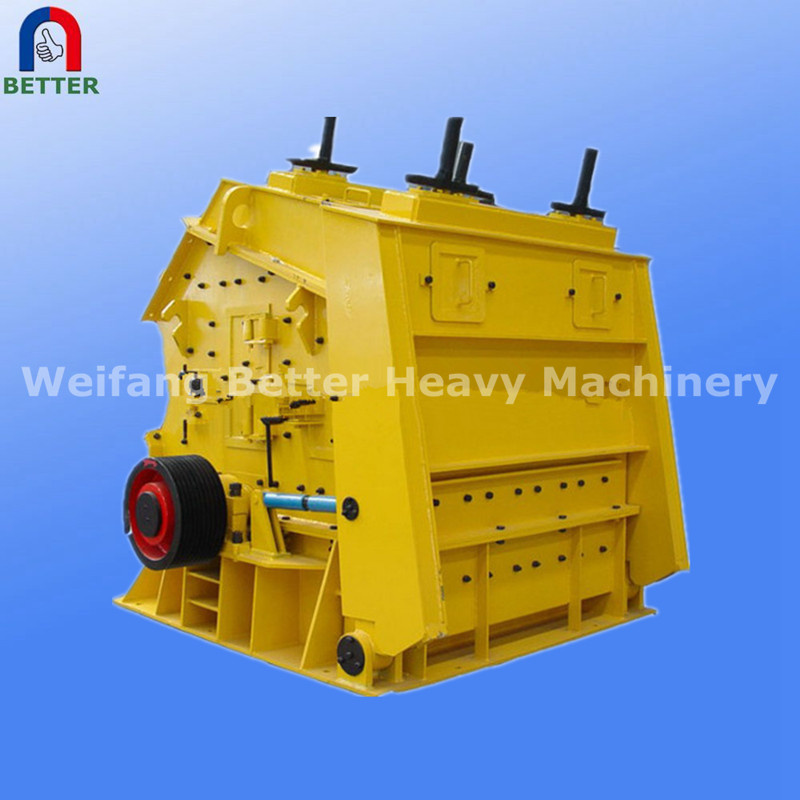

Product Description
This series of crusher can process particle size less than 100-500
mm, breaking strength is not more than 350MPa ore, rock, with a large crushing ratio, high crushing ratio, cubic shape, selectable crushing characteristics.The series is divided into mining, cement,concrete industrial use three categories.
Features:
Our impact crusher hammer is the use of special materials, high-chromium alloy casting, it has a high abrasion resistance, can be used repeatedly positive and negative, so that increased usage of plate hammer several times, relatively lower production costs, easy use.
The main technical parameters:
| Model | Rotor
diameter*length
(mm) | Inlet
size
(mm) | Max feed
size
(mm) | Capacity
(t/h) | Power
(kw) | Motor
model | Dimensions
(mm) |
| PF1010 | Ø100*1050 | 400*1080 | 350 | 50-80 | 4-75 | Y280S-4/75 | 2456*2086*2800 |
| PF1210 | Ø1250*1050 | 400*1080 | 350 | 60-120 | 6-110 | Y315L1-6/110 | 2590*2050*2810 |
| PF1214 | Ø1250*1400 | 400*1430 | 350 | 80-160 | 6-132 | Y315L2-6/132 | 2590*2400*2810 |
| PF1315 | Ø1300*1500 | 860*1520 | 350 | 120-260 | 6-200 | Y355M3-6/200 | 2930*2760*3050 |
Our company specializing in the production of crushing equipment, screening equipment, transportation equipment, feeding equipment, magnetic separation equipment, grinding equipment, sand and gravel production equipment, grinding and processing equipment, more than thirty series over 200 kinds of standard models. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 3, 000 domestic customers with reliable and at the same time, we occupy more than 60% magnetic separation equipment matching share of China ball mill, crusher, iron sand ship and other production industry.
There is no best, only better. Better has firmly implemented IS09001: 2000 international quality management system standard and IS010012 international quality inspection system standard, relying on technological innovation, and continuously improve core competitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Better...
