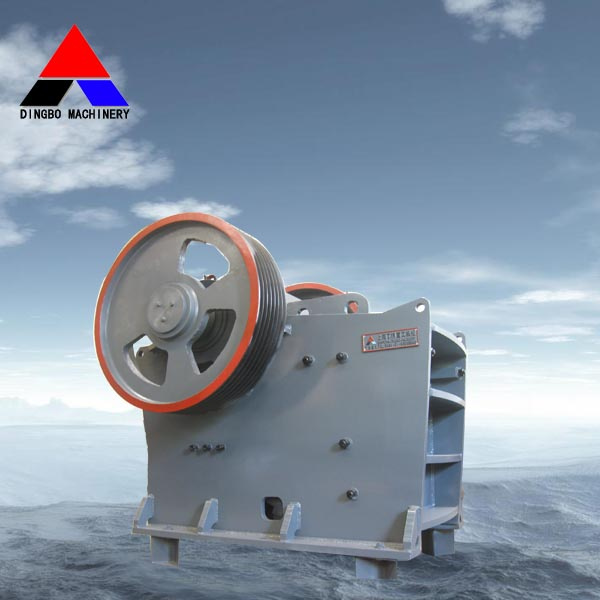

High Efficiency Jaw Crusher Pex Series
| Price: |
US $ 800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Fine Jaw Crusher:
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is a professional manufacturer of Stone Crusher in China. According to years research, we have developed the advanced Stone Crusher in the world. Especially the Jaw Crusher series, the Fine Jaw Crusher is a new model of Jaw Crushing Machine. After the Fine Jaw Crushing equipment crushing, the final goods can reach the very small size with the high capacity and low consumption.
Dingbo Jaw Crusher PE Series
Fine Jaw crusher is one of the most popular stone-crushing equipments in the world. It is ideally suitable for primary and secondary crushing processing machine selection. The highest anti-pressure strength of crushed material is 350MPA.
Based on many years' experience and technology development, Dingbo Fine Jaw Crusher series are of 6 different types, which can meet most of the crushing requirements in primary and secondary crushing. Flexible discharge opening setting of Fine Jaw Crusher allows perfect match with relative equipments. Dingbo Fine Jaw Crushing machine is easy to install, operate and maintain. As each feedback, our experts will make continuous improvements on our products to meet customers' different needs. Primary Jaw Crusher is widely used in fields of mining, metallurgy, construction, smelting, hydropower and chemical industries etc.
| Model |
Feeding Opening Size
(mm) |
Max.Feeding
Size(mm) |
Adjustment Range of Discharging Opening (mm) |
Capacity(t/h) |
Power(kw) |
Overall Drmension (mm) |
PEX-150×250 |
150×250 |
125 |
10-40 |
1-5 |
5.5 |
875×758×850 |
PEX-150×750 |
150×750 |
125 |
18-48 |
5-16 |
15 |
1200×1500×1200 |
PEX-250×400 |
400×250 |
210 |
25-80 |
15-30 |
22-30 |
1667×1545×1020 |
PEX-250×1000 |
1000×250 |
210 |
25-60 |
16-50 |
30-37 |
1530×1992×1380 |
PEX-250×1200 |
1200×250 |
210 |
25-60 |
20-60 |
37 |
1900×2192×1430 |
PEX-300×1300 |
1300×300 |
250 |
25-105 |
20-90 |
75 |
2720×1950×1600 |
| Prod Model: |
PEX SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Object: |
Pavement |
| Tongs' Features: |
Adjustable Tongs |
| Cutter Material: |
Polycrystalline Diamond |
| Principle: |
Planar Motion Culling |
| Type: |
Jaw Crusher |
| Crushing Style: |
Extruding |
| Drive: |
Electric |
| Finished Surface: |
Cut Off Tool |
| Compressive Strength (',For Crushing): |
>300MPA |
| Crushing Degree: |
Coarse Crusher |
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
