Product Specifications
| Prod Model: |
TA-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Lubricated |
| Mute: |
Not Mute |
| Model: |
Ta-120 |
| Displacement: |
1.6m3/Min |
| Rated: |
830r/Min |
| Transmission: |
Belt Drive |
Product Description

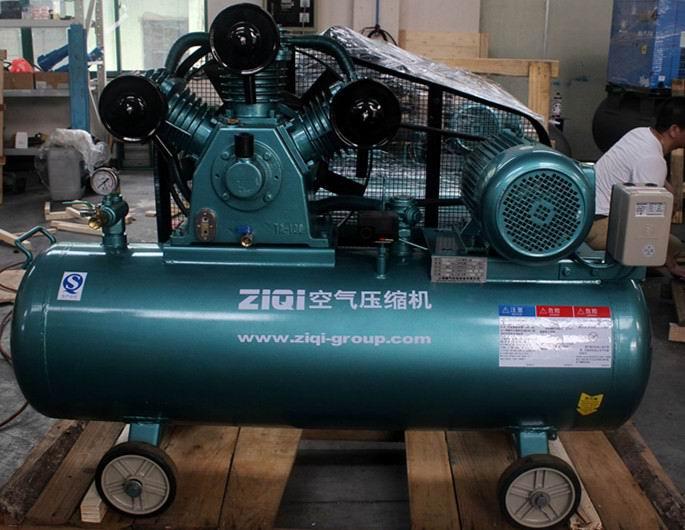

Professional piston air compressor manufacturer
Advantages:
*High Pressure Portable Diesel Piston Air-Cooled Air Compressor
*Superior and compact designing
*Overload protector stops the machine when safety limits are reached and thus reduces
Chances of damage to motor.
*Specially designed pressure switch not only stops the machine when maximum pressure
Allowed is reached but also make the compressor start again when the pressure goes
Below the minimum threshold.
*Faster pressure build up ensures work is uninterrupted.
*Superior non-return valve prevent compressed air coming back to the motor head.
*Compressor is equipped with a solenoid valve which allows excess air in the head and
End
Manifold is discharged and ensures easy start.
*Special designed crank shaft and pully connector to keep compressor working more safe.
*Special designed motor shaft and pully connector to keep compressor working more
Safe.
Applications:
*Suitable for all types of pneumatic tools, washing, spraying and blowing
|
| model | POWER(KW) | Air displacement(m3) | pressure(Mpa) | rated(r/min) | air storage(m3) | weight(kg) | dimension(mm) | cylinder |
| TA-80 | 4-4 | 0.52 | 0.8 | 870 | 0.13 | 203 | 1235*480*970 | - |
| VA-100 | 5.5-4 | 0.67 | 0.8 | 950 | 0.17 | 268 | 1360*550*1050 | - |
| TA-100 | 7.5-4 | 1.0 | 0.8 | 900 | 0.24 | 328 | 1415*625*1175 | - |
| TA-120 | 11-4 | 1.6 | 0.8 | 830 | 0.32 | 480 | 1710*760*1280 | - |
| TA-120H | 15-4 | 2.0 | 0.8 | 800 | 0.36 | 850 | 1850*950*1500 | - |
| H TA-100 | 7.5-4 | 0.84 | 1.25 | 990 | 0.23 | 379
|
Shanghai Zi Qi Group compressors air end has its headquarter in Germany. Its advanced technology, professional computer management system contributes to the excellent GoodAir Double Screw Air Compressor. The technology and energy consumption has achieved a new level, which can meet the European Standard. Our company always applies the advanced European design and consummate assembly technique, develop the manufacture technology and enhance the testing methods. We will provide you the best solution for air compressor system and make sure that every component has the best work condition. Therefore CoodAir Compressor applies the Original German air end and most components are world-famous brand, which makes our products well-designed and highly reliable.
We confidently believe that Shanghai Zi Qi Group is your reliable professional manufacturer for Air Compressor. We shall provide you the best Compressed Air System with our advanced technology, excellent products and services. Our products include Air & Water cooling Screw compressor, Belt & Direct Driven Screw compressor, Frequency screw compressor and Diesel Driven Portable screw compressor, Refrigeration & Adsorption air dyers, precision air filters, air tanks and screw compressor spare parts, etc. We provide high-quality Compressed Air System to make sure that the user can achieve the best productivity. The user can choose a complete Compressed Air System to meet almost every demand from our products.
