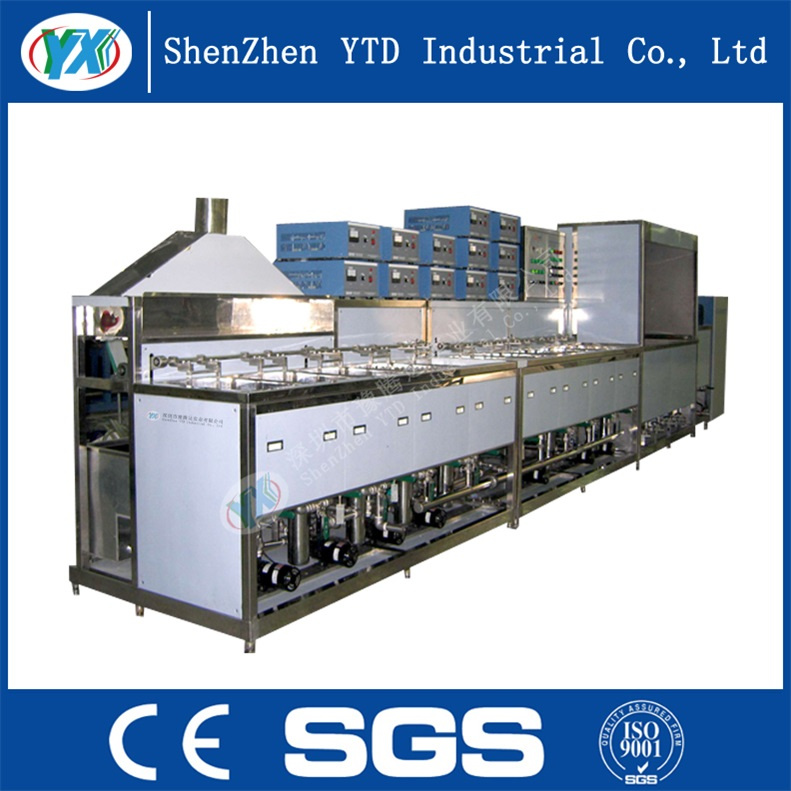

High-Efficiency Semi-Automation Cleaning Machine of Mobile Phone

Product Specifications

Product Description

Shenzhen YTD Industrial Co., Ltd. >> High-Efficiency Semi-Automation Cleaning Machine of Mobile Phone

Name: High-Efficiency Semi-Automation Cleaning Machine of Mobile Phone
Brand: china-manufacturer-directory.com
SKU: 773079685
Availability: InStock
Rating: 4.7 (97 reviews)

Supplier:	Shenzhen YTD Industrial Co., Ltd.
Price:	US $ 1575-24000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Prod Model:	JXD-11-168QQPMN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Size Of Ultrasonic Cleaning Tank:	400400400mm
Material Of Cleaning Tank:	SUS 304 # 2.0mm(Stainless Steel Plate)
Water Draining:	Solvent Water Pipe*1(Each Slot)
Ultrasonic Frequency:	40kHz
Ultrasonic Power:	1.2 Kw/Slot
Ultrasonic Resonators:	24PCS(60W)
Filter Fineness:	20um
Filter System:	Magnetic Drive Pump
Constant Temperature Control:	Omron Digital Thermostat
Heating Tube:	Stainless Steel Heating Tube
Type:	Glass Washing and Drying Machine
Certification:	ISO
Control System:	PLC

The size of slow pulling tank

400*400*400mm

The washing temperature

Material of cleaning tank

SUS 304 # 2.0mm(Stainless steel plate)

Electric motor

Drop speed range

Rising speed range

1. USAGE: optical glass, mobile phone screen, tablet PC screen.

2. FUNCTION: Removing the dust, fingerprint, oil from glass surface.

3. Filter fineness: 20um.

Proprietary Technology Only One in the World

YTD-11-168 ULTRASONIC CLEANING MACHINE

1) No.1~3 Ultrasonic solvent cleaning:

The size of ultrasonic cleaning tank			400400400mm
The washing temperature			30ºC~80ºC(No.1~No.2)
Material of cleaning tank			SUS 304 # 2.0mm(Stainless steel plate)
Water draining			Solvent water pipe*1(Each slot)
Ultrasonic frequency			40KHZ
Ultrasonic Power			1.2 Kw/slot
Ultrasonic resonators			24pcs(60W)
Ultrasonic wave generator			The seventh generation of generator(patent)
Heating rod			Taiwan Baolong
Filter system			Magnetic drive pump
Filter fineness			20um

2) No.4 Pure water spray cleaning:

The size of spray cleaning trough			400400400mm
Material of cleaning tank			SUS 304 # 2.0mm(Stainless steel plate)
Water draining			Solvent water pipe*1(Each slot)
Filter system			Magnetic drive pump
Filter fineness			20um
Constant temperature control			Omron digital thermostat
Heating tube			Stainless steel heating tube

3) No.5~7 Ultrasonic pure water rinsing:

The size of ultrasonic rinsing tank			400400400mm
The washing temperature			30ºC~80ºC(No.3~No.5)
Material of rinsing tank			SUS 304 # 2.0mm(Stainless steel plate)
Water draining			Solvent water pipe*1(Each slot)
Ultrasonic frequency			40KHZ
Ultrasonic Power			1.2 Kw/slot
Ultrasonic resonators			24pcs(60W)
Ultrasonic wave generator			The seventh generation of generator(patent)
Constant temperature control			Omron digital thermostat
Heating tube			Stainless steel heating tube

4) No.8~9 Slow pulling evaporating:

5) No.10~11 Thermal radiation hot air drying:

FAQ:

1. Do you have any quality certification?
A: YES, we have passed the authentication of CE, GS and ISO9001 international quality system.

2. How long is your production time?
A: 30 days in average.

3. How about your payment terms?
A: We accept T/T, L/C, Paypal.

4. How about the delivery?
A: 20 days in average, any port in China.

5. Can i visit your factory?
A: YES, of course. We will pick you up at airport in SHENZHEN.

6. How about the machine installation and worker training?
A: We teach your worker how to install and use machine and make a working video for you.

7. How about the after-sale service?
A: We guarantee ONE-YEAR after-sale service(except for the wearing parts).

Thank you for reading and have a nice day!!!

Shenzhen YTD industry Co., Ltd is a supplier that specializes in developing, designing and manufacturing all kinds of automatic machine serves FPC. Currently we have full-automatic FPC laminating machine, automatic stiffening laminator, manipulator for stamping machine, ict/fct functional jig, complete of testing solution, micro-needle module test jig and bending, bevel, hot-pressing, laminating, vacuum adsorption, no-automatic jig etc.

Our company was established in 2003, after more than 10 years of development, we have many advanced processing and testing equipments, such as precise CNC imported from Japan, precise carving machine, corrosion machine, detector, 2D measuring instrument, CNC milling machine, grinder, laser machine, automatic variable machine, powerful CNC microscope etc.

By virtue of strong development power, high-end equipments and well-knit organization structure, strict details management, complete team support, excellent after-sales service, our reputation and development has ranked top in the industry.

Quality policy: Quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.

Excellent products, credibility first, win-win cooperation----- ytd will always be your most sincere partner.
