Product Specifications
Prod Model: |
QW-M1200UPS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Power: |
1200W |
Peak Power: |
2400W |
Output Voltage: |
110V / 220V |
Input Voltage: |
12V / 24V /48V |
Output Frequency: |
50/60Hz |
Output Waveform: |
Modified Sine Wave |
Format Of Plug: |
EU/German/ USA/UK/Universal/Australia |
Housing Material: |
Aluminum Alloy |
Inverter Type: |
1200W Car Power Inverter |
Keywords: |
Power Inverter |
Phase: |
Single |
Type: |
DC/AC Inverters |
Power Source: |
Solar Power |
Output Power: |
>1000W |
Certification: |
SGS |
Brand: |
Queenswing |
Product Description

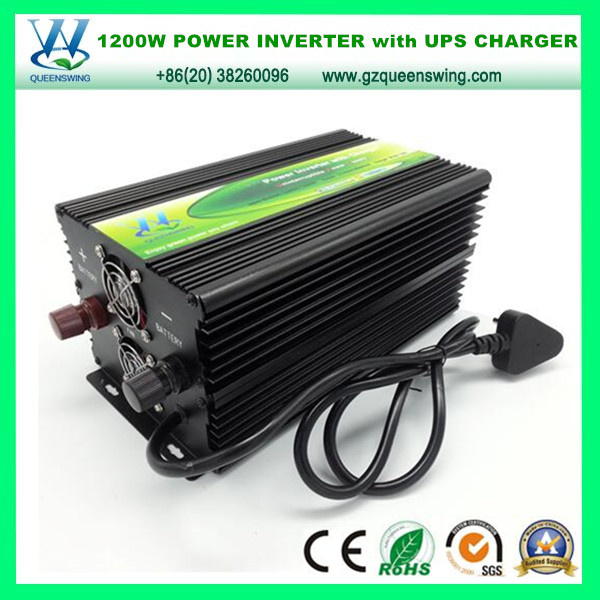

High Efficiency UPS Charger 1200W Car Power Inverter (QW-M1200UPS)
1. Introduction:
QW-M1200UPS is modified sine wave inverter which converts DC power to AC power for household appliances, solar devices and telecommunication equipments when there is no grid power. Its high-speed built-in battery charger helps convert grid power into DC power for charging batteries; It works with batteries together to provide uninterrupted power for load or equipments. Its output is realized both by plug and USB charging port which is suitable for low wattage equipment such as mobile phones. To prevent damages to this inverter, soft start and safe working performance such as short circuit protection are added into its standard design. The cool shell and inner fan also help improve its performance.
2. Feature:
1. Stable working performance: Even in the situation of under voltage or over voltage, the inverter could endure 10% voltage fluctuation until it shutdowns;
2. Full load temperature <50 degree: Cool surface design and load controlled fan help lower the temperature of inverter and prolong its span;
3. High efficiency: World-leading and always>95%;
4. Built-in charger: High speed charging current reaches 12A;
5. Low interference: Using advanced technology to avoid interference from precision instruments;
6. Isolated output: Able to endure impact of inductive equipments and protect the inverter from being easily damaged;
4. Technical Parameter:
Input: | Input voltage: DC12V/DC24V/DC48V Working Voltage: DC10V-15V/DC20V-30V/DC40V-60V Input current: 125A/62.5A/31.25A Standby input power: <15W Start no load current: <1A |
Output: | Rated power: 1200W Peak power: 2400W Efficiency: >85% Output voltage: AC110V/220V+/-5% Output frequency: 50/60Hz+/-1% Output current: 13.6A/6.8A Output waveform: Modified Sine Wave |
UPS Charging function: | Charging current: 10-15A/5-10A/ 2-5A Input AC charging voltage: 180V-240V Charging output no-load voltage: DC14.2V-14.5V/DC27.5V-28.5V/DC55.0V-56.5V Charging output power: 100W-150W Charging plug type: European plug Charging way: 4 stages: pre-charge, man-charge, float-charge and full charge Output mode: Mains preferred Switch time: ≤10ms |
Protection: | Reverse connection protection: fuses burne Low input voltage alarm: 10.1V+/-0.3V; 20.5V+/-0.3V; 42V+/-1V Low input voltage protection: 10.7+/-0.3V; 20.1+/-0.3V; 40+/-2V High Input voltage protecton: 15V+/-1V; 30V+/-1V; 60V+/-2V High temperature protection: ≥70ºC Over load protection: >1500W Short circuit protection Digital display Indicator: Inverter woking: green light on Inverter problem: no 110V/220v display Charging indicator: display 220v output Charging process indicator: digital display charging voltage up to 13.8V-14.2V Turn off the switch when charging which charging battery faster
Protection alarm: Low input voltage alarm: buzzer Low input voltage protection: no display, buzzer and inverter stop working High input voltage protection: no output voltage display, have input display, inverter stop working. Over load protection: voltage drop low auto Abnormal temperature: no AC display, buzzer and stop working. |
Environment: | High temperature protectioin: ≥70ºC Working Temperature: -10ºC~40ºC Cooling mode: Intelligent Temperature control Fan |
Package included: | 1* QW-M1200UPS (280*170*135mm/6kg) 1* battery clamp 1* spare part 1* english user manual 1* standard packing box |
5. All protection:
1: High voltage protection
2: Low voltage protection
3: Over load protection
4: Over temperatuer protection
5: Overcurrent protection
6: Output short-circuit protection
7. Reverse connection protection
8. Internal fuse protection
9. Buzzer alarm function
6. Application:
Wind generation, solar panel, home, office, car, board and some place that lack electricity. Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Load:
1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
3> Kitchen utensils series: Microwave ovens, Freezers, Coffee machines, Blenders, induction cooker, etc.
4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment.
5> In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
6> Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
User Guide |
Application | Wattage | Inverter Wattage |
150W | 300W | 500W | 800W | 1000W | 2000W | 3000W | 4000W |
Mobile phone | 5W | √ | √ | √ | √ | √ | √ | √ | √ |
12 inch color television | 16W | √ | √ | √ | √ | √ | √ | √ | √ |
Video games console | 20W | √ | √ | √ | √ | √ | √ | √ | √ |
Electric light | 25W | √ | √ | √ | √ | √ | √ | √ | √ |
Satellite TV receiver | 30W | √ | √ | √ | √ | √ | √ | √ | √ |
CD or DVD player | 30W | √ | √ | √ | √ | √ | √ | √ | √ |
HiFi stereo 4-Head VCR | 40W | √ | √ | √ | √ | √ | √ | √ | √ |
Guitar amplifier (at average volume) | 40W | √ | √ | √ | √ | √ | √ | √ | √ |
Stereo system (at average volume) | 55W | * | √ | √ | √ | √ | √ | √ | √ |
Electric fan | 55W | √ | √ | √ | √ | √ | √ | √ | √ |
Notebook | 60W | √ | √ | √ | √ | √ | √ | √ | √ |
GE 9 inch color TV/radio/cassette | 65W | √ | √ | √ | √ | √ | √ | √ | √ |
19 inch color TV | 80W | √ | √ | √ | √ | √ | √ | √ | √ |
20 inch VCR combo | 110W | √ | √ | √ | √ | √ | √ | √ | √ |
27 inch color TV | 170W |
| √ | √ | √ | √ | √ | √ | √ |
Stereo amplifier | 250W |
| * | * | √ | √ | √ | √ | √ |
Small-medium printer | 350W |
|
| * | * | * | √ | √ | √ |
Home theater system | 400W |
|
| * | * | * | √ | √ | √ |
Power drill | 400W |
|
| √ | √ | √ | √ | √ | √ |
Rice cooker | 500W |
|
| √ | √ | √ | √ | √ | √ |
Small coffee machine | 600W |
|
|
| * | * | √ | √ | √ |
Refrigerator | 750W |
|
|
| * | * | * | √ | √ |
Small microwave oven | 800W |
|
|
| * | * | * | √ | √ |
Toaster | 1000W |
|
|
|
| * | * | √ | √ |
Hair dryer | 1000W |
|
|
|
|
| √ | √ | √ |
Full size microwave oven | 1500W |
|
|
|
|
| * | * | * |
Electric kettle | 1800W |
|
|
|
|
| √ | √ | √ |
Induction cooker | 2000W |
|
|
|
|
| * | * | * |
washing machine | 2500W |
|
|
|
|
|
| * | * |
Air conditioner 16000BTU | 2500W |
|
|
|
|
|
|
| * |
Air compressor 3HP | 2800W |
|
|
|
|
|
|
| * |
Heavy duty power tools | 2800W |
|
|
|
|
|
|
| * |
Air conditioner 22400BTU | 3500W |
|
|
|
|
|
|
| * |
|
|
|
|
|
|
|
|
|
|
Note: For those starred models, pure sine wave inverters are preferred. |
8. Warranty:
L - The good construction warranty-1 years
L - Your client satisfied on the right schedule and quality
L - Your can get good reputation from your market and obtain more orders
L - Our professional service before and after sale
L - The reasonable price
9. Some about us
Queenswing is a professional manufacture specialized in Power inverter and solar products, We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car Power inverter
Car Inverter with USB Port
Pure sine wave invertrer
UPS Pure sine wave inverter with charger
Modify sine wave inverter
UPS power inverter with charger
Solar energy power source
Solar charge controller
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.
Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.
Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
10. FAQ:
1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.
2. What is the difference between the inverter with UPS + charger and inverter with charger?
A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.
With battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.
3. What can a UPS do for me?
A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
