Product Specifications
| Prod Model: |
HXH51 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Od: |
5.3 |
| Gold Plug: |
24k |
| Insulation: |
Braid |
| Definition: |
2160p |
| Shielding: |
Braid |
| Body: |
with Nylon |
| Logo: |
Customized |
| FOB Port: |
Shenzhen and Honkong |
| Package: |
Blister, Box, Optional |
| Application: |
Multimedia, DVD Player, Computer, Monitor, iPod, Game Player |
| Type: |
Twisted Pair |
| Species: |
HDMI |
| Connector: |
HDMI |
| Material Shape: |
Round Wire |
| Wire Core Material: |
Bare Copper Wire |
| Certification: |
RoHS, CE, ISO9001 |
| Brand: |
Hxh |
Product Description

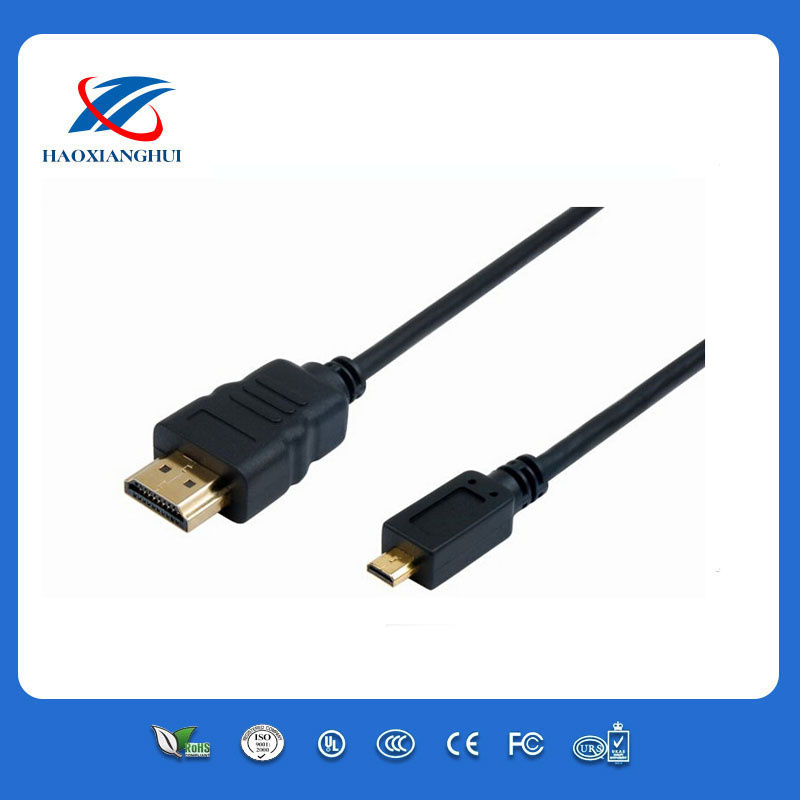

China manufacture AM/AM micro hdmi cable
| Name | Micro hdmi cable |
| Type | A-A(male to male);A-C(male to Mini) A-D(male to Micro) |
| Conductor | Bare copper, Tinned copper or CCS |
| Jacket | PVC, PE, with or without Nylon net ,can be customized |
| Connector | HDMI Plug 19P,Durable 24K gold plated |
| Insulation | ccs |
| Housing | Metal shell type&PVC Shell Type (optional) |
| length | 3ft-167ft( 1m-30m) or as customers' request |
| Wire Guage | 30/28/26/24/22AWG OD:4.2/5.5/6.0/7.3mm |
| Shielding | Aluminum foil and Braiding |
| Color | Black |
| Ferrite core | Optional |
| Structure | (1/30AWG*2C+D+HPE)*5P+30AWG*4C+AL+D+B +PVC(optional) |
| Certification | RoHS,UL,CE,HDMI ATC |
| Application | widely used in HDTV, EVD, HDVD, AMP, Home Theater, DVD player, projector, PS3, Xbox360 ,set-top boxes etc. |
| Function | 1.Support 3D, 4Kx2K, 1440p, 1080p, 1080i, 720p, 480p, and 480i Resolutions |
| 2.Transfer Rates Up to 10.2gbps |
| Package | PE bag,Zip bag,OPP bag, blister bag or Customized |
| Electricals of mini hdmi : |
| Quality Control | 100% Open and Short Test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M Ohm Min |
| Contact Resistance | 2.0 Ohm Max |
| Working Temperature | -25ºC ~ +85ºC |
| Mechanical of mini hdmi : |
| Premold | PE Low Density |
| Insulator Material | High-Temperature thermoplastic (UL94V-0) |
| Contact | Copper Alloy |
| Insertion Force | 44.1 N Max. |
| Withdraw Force | 9.8 N Min |
1. Best for the products with HDMI port,such as BD Blu-ray machine,high-definition player,Digital TV, Plasma TV, LCD TV , amplifier , projector, CATV SetTopBox , AV processor , DVD player.
2.Used to connect to the PC,PS3/XBOX videogames and monitors.
Working Temperature:-15~60°C Storage
Temperature:-15~80°C
Advantage:
* All- gold interface , multi-layer shielding structure, all PVC jacket insulation , abrasion resistance, flexible and strong;
* Twisted pair core wire,impedance matching techniques, lossless transmission.
Feature
24K Gold-plated HDMI 19 pins/ HDMI 19 pins design specs connectors for highest signal transfer rate and resistance in corrosion; (micro hdmi to hdmi/mini hdmi to hdmi).
Molded strain-relief design lessens plug/socket pressure.
Heavy Duty METAL HOUSING that cuts out any unwanted RF interference. The metal housing also provides great protection for the connectors. (2 3 )
Superior Professional Build-Quality & Construction.
99.7% highest grade Oxygen Free Copper and heavy guage conductors improve Signal Transfer.
Available to 20m lengths (15 & 20m at 24AWG).
Large gauge & Super-flexible PVC jacket provides maximum shielding against wear and tear and extreme temperatures.
Notice: We welcome international trial order and we expect a long term cooperation with buyer domestic and abroad. We deeply believe that a good price + good quality + good communication will win a long term cooperation!
OEM are Welcome! Customers' artwork and logo are accepted
Our 100% Guarantee,100% Warranty Service:
Shenzhen city good phase hui electronics Co., Ltd. is a leading professional manufacturer of cable assembly. Our products include hdmi cable ,vga cable , usb cable, iphone charge cable audio cable ,dvi cable ,optical cable ,lan cable , (DP)Displayport Cable, SATA cable, Network cable, AV cable, Coaxial cable, HDMI adapter, HDMI splitter, HDMI switch, HDMI extender, HDMI repeater, which we have more than 10years export and domestic experence in this field , and they have been sold to America, England, Mexico, Germany, Chile, and European countries. all of our product have one year warranty ,We guarantee each product will be Full-checked 100%. If there are bad products we will promptly pay compensation to customers without any charge.
SHEN CITY GOOD PHASE HUI ELECTRONICS Co., Ltd was established in 2000 and located in Shenzhen City. Our company covers 5600 square meters and 500 professional technicians and employees.
With strong technical capabilities, complete set of equipment and facilities, advanced technology and perfect testing and inspecting measures, we specialize in produce HDMI CABLE, VGA CABLE, USB CABLE, CABLE for iPhone, DVI CABLE, SATA CABLE and so on.
We can also undertake OEM orders of processing various special fiber optic cables. Our products sell well in domestic and foreign market and are widely used by many famous corporations.
We have set up a functional modern business management system and carried out ISO9001: 2000 quality management system for many years. We are authorized with independent import and export rights. Our products have obtained many product safety certificates including CCC (China) and UL (USA). We are always insisting on the operation principle of "your satisfaction is our pursuit", and the tenet of "Development, Innovation, Practical and Honest".
We will try our best to satisfy customers' requests. We sincerely welcome all clients to cooperate with us hand in hand for a wonderful future!
