Product Specifications
| Prod Model: |
CD-K10 |
| Markets: |
North America,Eastern Europe,Western Europe |
| Model Number: |
CD-K10 |
| Dimension: |
104*53*31mm( Excluding Antenna) |
| Battery: |
1500mAh High Capacity Lithium Battery |
| OEM: |
Accept |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Battery Type: |
Lithium Battery |
| Usage: |
Home, Commercial, Army |
Product Description

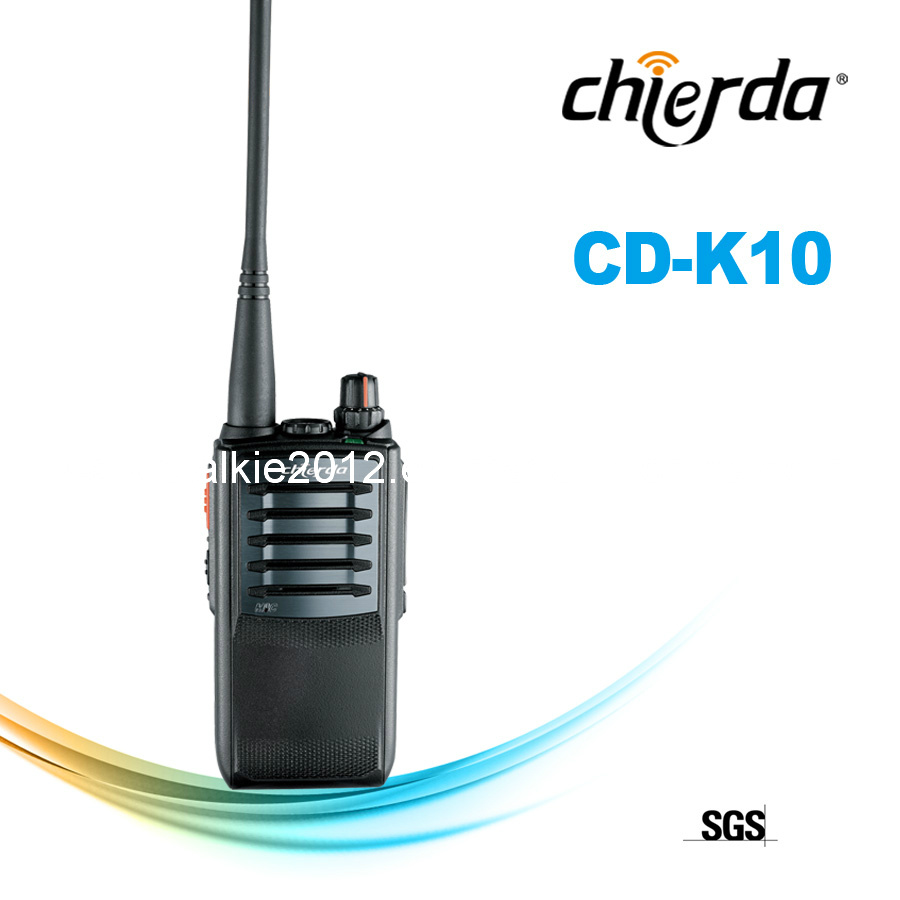

High Flash Light Tot 2-Way Radio CD-K10
Long Distance Transceiver Two-Way Radios Walkie Talkie with High Torch Light
Important functions:
CTCSS/DCS
High/Low Power
Monitor Function
Battery Save Mode
Low Battery Warning
Busy Channel Lock 4. Standard Accessory:
Antenna: 1 Piece
Desktop Charger: 1 Piece
Adapter: 1 Piece, we can supply USA Type/ EU Type/ UK Type/ Australian Type/
Indonesian Type/Taiwan Type etc.
Lithium Battery: 1 Piece, High Capacity, Rechargeable
Belt Clip: 1 Piece
English Manual: 1 Piece
High Flash Light Tot 2-Way Radio CD-K10
Note:
1. Please contact us at first time for bulk order, larger discount waits for you.
2. Sample time: If with our logo, within 5 days, UHF 400-480MHz is enough at preent, Please contact us now.
3. OEM is offered, we can design the pacing box and logo mark according to your request.
4. Payment term: T/T, Western Union, Paypal
5. Warranty Period: 12 months for body radio; 6 months for accessories.
About us:
We do our best to produce excllent quality products and services. We hope we help you and are glad to become your faithful friends.
Shippment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, and large quantities depend on Customer request.
|
Specification: |
|
Frequency Range |
136-174/400.000~470.000MHz |
|
Rated Voltage |
DC7.4V |
|
Memory Channel |
128 |
|
Channel Spacing |
5.6.25.10.12.5.25.50.100KHz |
|
Frequency Sensitivity |
± 2.5PPM |
|
Antenna Impedance |
50 Ω |
|
Dimension |
117*55*38mm(except antenna) |
|
|
|
Transmitter: |
|
Output Power |
UHF4W/ VHF5W |
|
Current |
≤ 1.6A |
|
Modulation Distortion |
≤ 5%(300-3000HZ) |
|
Maximum Frequency Deviation |
< 5K/< 2.5KHz |
|
CTCSS Frequency Deviation |
0.75KHz ± 50Hz |
|
Remanent Radiation |
≤ 7uW |
|
Modulation Mode |
16Kø F3E/11 Kø F3E |
|
Remanent Modulation |
≤ -35DB |
|
|
|
Receiver: |
|
RF Sensitivity |
≤ 0.25uV/≤ 0.3uV |
|
Silent Sensitivity |
≤ 0.2uV/≤ 0.25uV |
|
Audio Frequency Power |
≥ 500mW |
|
Audio Distoftion |
< 5% |
|
Modulation Receiver Bandwidth |
± 7khz |
|
Spurious Rejection |
≥ 55DB |
|
Selectivity |
≥ 65DB |
|
Intermodulation |
≥ 60DB |
Quanzhou Chierda Electronic Telecom Co., Ltd., the reliable source for professional two-way radio communications. Headquartered in Quanzhou, the homeland of two way radios in China. Since 20 years, we have always produced developed & marketed two way radio and related accessories. Have rich experienced R&D engineers, and skilled technicians and workers! As well as advanced production equipment and accurate/smart inspection & test instrument. We manufacture all the products that we design and sell.
We work with each client to ensure we provide an on-time, cost effective solution that helps your business run more efficiently and ultimately become more profitable. Chierda Communications, "Now You' Re Talkin!
