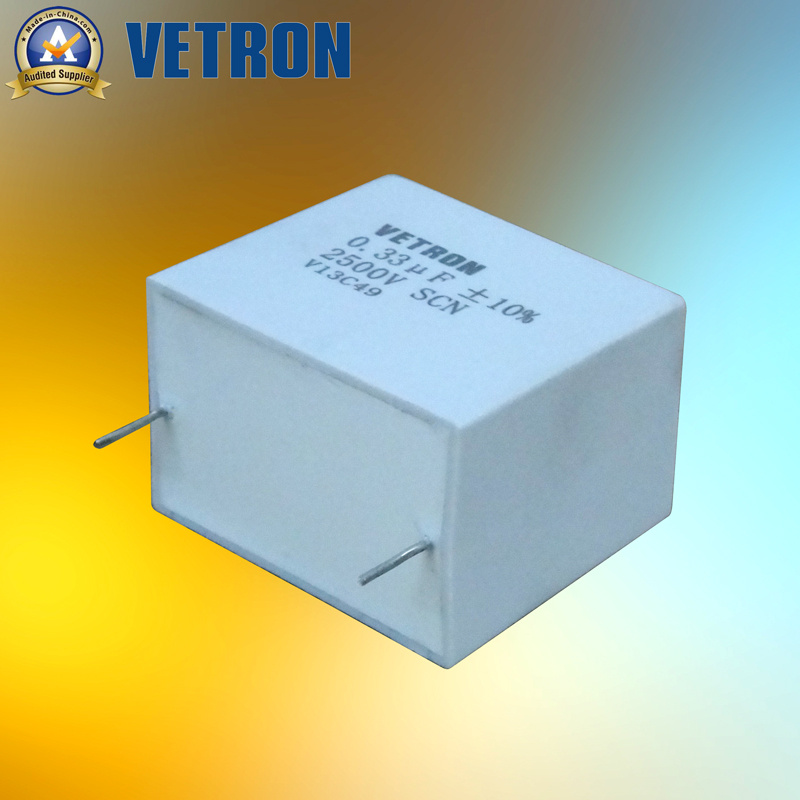

High Frequency Current Capacitor

Name: High Frequency Current Capacitor
Brand: China-Manufacturer-Directory.com
SKU: 742234135
Availability: InStock
Rating: 4.7 (143 reviews)

Supplier:	Foshan Shunde VETRON Electronic Industrial Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SCN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polyester Film Capacitor
Package Type:	Through Hole
Application:	Automobile
Capacitance:	1-50uf

Product Description

High Frequency Current Capacitor Features (1) Adopt double side metallized Polyester film construction; High voltage, Heavy current shock for high frequency circuit. (2) Used metallized film material, with self-healing property, it has long life time (>=100,000h); less inherent temperature rise. (3) Tinned copper wire pin(2/4/6), plastic case fill with UL94-V0 resin. (4) Film capacitor performance is stable and reliable. (5) Non-inductive dry structure, Low ESR and ESL. (6) High dV/dt, compliance with RoHS. Applications 1) Used for IGBT snubber circuit. 2) Used in welders, inverters, UPS, EPS 3) Used in inductance heating machine

Temperature Range	-40°C~+85°C
Capacity Range	0.022~9 μF
Capacitance deviation	±5%(J),±10%(K)
Voltage	700~3000VDC
Voltage between Terminals	1.75Un/10s
Voltage Terminals-case	4000VAC 10s 50Hz
Dissipation factor	tgδ≤0.0006(at 10KHz 25°C)
Insulation resistance	C*Ri≥5000S(at 25°C 100V.DC)
Flame-retardant	UL94-V0
Stray inductance	≤ 30nH
I_rms Current	2-32A
Failure rate	<30 FIT
Reference Standard	Enterprise standards in line with IEC61071,
Case components	Plastic Case
Terminals form	Tinned copper wire
Installation type	Plug-in board

VETRON is a manufacturer of film capacitors for the power electronics market, short delivery time, and competitive prices, innovative product technologies with engineering expertise to provide reliable solutions for renewable energy, power supplies, inverter, welding, induction heating and UPS systems; As well as solar power and wind power and DC link capacitors for electric vehicles.

Capacitor including:

1. DC-link film capacitors: SAL, SBL, SDL, SEL, SFL Series

2. IGBT snubber film capacitors: SCF/R, SCR, SCP, SCN Series

3. Welding machine film capacitors: SWF, SKP, STP, STR, Series

4. Induction heating machine capacitors: SKR, SJR, SIL Series

5. GTO snubber capacitors: SIR, SVR Series

6. AC power supply capacitors: SAF, SBF, SCW Series

7. DC-blocking & coupling capacitors: SCL Series

We are proud of the excellent quality products and the best service. And we also have distributor to serve customers in time.
