High -Frequency Eddy Current Lead-Free Soldering Station Yihua 950
Product Specifications
| Prod Model: |
YIHUA 950 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Yihua950 |
| Case Color: |
Black |
| N. W.: |
4.1kg/PCS |
| G. W.: |
4.6kg/PCS |
| Q'ty: |
6PCS/Outer Carton |
| Outer Carton Box Size: |
56.5*48*29cm |
| Outer CTN G.W.: |
26.68kg/CTN |
Product Description

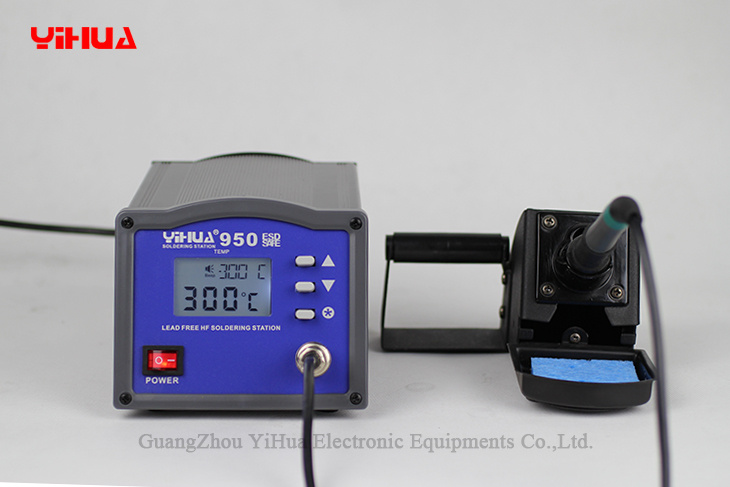

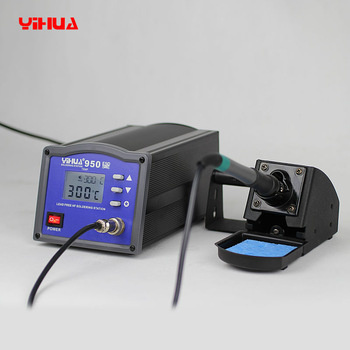

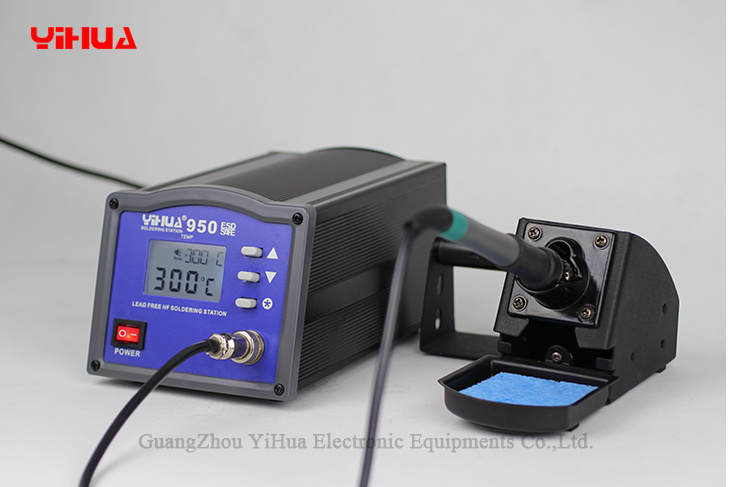

High -frequency eddy current lead-free soldering station YIHUA950
Feature:
1. High-frequency eddy current heating; fast temperature rise and return; more suitable for high temperature soldering situations; high-temperature lead-free soldering.
2. Microcomputer control; temperature adjustable via simple key presses; digital temperature correction; precise temperature control; easy-to-master soldering process.
3. 150 W large power design; LCD screen.
4. Automatic hibernation and automatic shutoff function (optional)
5. Password-protected temperature lockout function, easy for management and effective to safeguard the production process.
6. Electricity prevention design; several types of iron heads can be chosen.
7. Buzzer is installed inside the soldering station as an alarm. Alarms when the temperature reaches the set temperature, or the soldering station is operating abnormally and the soldering station goes into hibernation or automatic shutdown.
8. The station has good stability and high configurability and is able to perform high strength soldering;
9. The outer enclosure of the main machine is made of a superior iron alloy, which is immune to high temperature damage and is durable.
High -frequency eddy current lead-free soldering station YIHUA950
Specifications:
Output Power :150W
Soldering Iron Temperature range:50-500°C
Inner box Dimension(cm) 26.8*24*16.8cm
Outer box Dimension(cm) 51*28.5*51cm
QTY:6PCS/ctn
Goods weight.:4.58kg/PCS
Outer CTN G.W.:28.68KGCTN
Application occasion :
This product using high frequency eddy current heating principles and techniques to achieve high-strength lead-free solder. In addition to adopt to the general welding, but also particularly suitable for multi-tin, crude terminals, large joints and other circumstances, are widely used in universities, research institutes, laboratories, production lines, maintenance department etc. welding applications.
Whats in the box :
* main unit + soldering iron+ power cord
* guide
* soldering iron holder
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units | parameters |
|
| Rated voltage | AC 220V±10% 50Hz |
| Output power | 150W |
| Working environment | 0~40ºC relative humidity<80% |
| Storage environment | -20~80ºC relative humidity<80% |
| Body size | 20*12.6*9.8CM |
| Weight | 4.6KG |
| Work voltage | AC 26V±10% 50Hz |
| Output power |
|
| Temperature range | Three-optional temperature control, respectively:200-480ºC, 100-450ºC, 50-420ºC |
| Temperature Stability | ±1ºC (Static) |
| Display Type | LCD display |
| PID Temperature correction cycle | rapidly 20ms |
| Tip ground impedance | <2Ω |
| Tip of ground voltage | <2mV |
