Product Specifications
Product Description

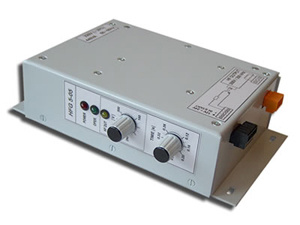

ELNA HFG 5-05 is high-frequency generator designed for "Top Seal" modules.
Technical Parameters:
PARAMETER
VALUE
1. Supply voltage
220 V ± 20%
2. Nominal frequency of the mains
50 / 60 Hz ± 2% ± 2%
3. Consumed power
HFG5-05: 440VA
HFG5-08: 820VA
4. HF output
HFG5-05: 300 V / 200 kHz
HFG5-08: 310 V / 160 kHz
5. Working mode -cycle
Switch period 50% max
6. Dimensions, mm
220*144*57 mm
7. Net weight
1.22kg
