Dongguan Guangyuan Inverter Electronic Equipment Factory >> High Frequency Induction Hardening Machine Tool (GY-CNC1000)

High Frequency Induction Hardening Machine Tool (GY-CNC1000)

High Frequency Induction Hardening Machine Tool (GY-CNC1000)
Supplier: Dongguan Guangyuan Inverter Electronic Equipment Factory
Price: US $ 1-100000/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: GY-CNC1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling: Water
Warranty: 12 Months
Customized: Customized
Use For: Hardening
Export Markets: Global
Process Usage: CNC Non-Conventional Machine Tools
Movement Method: Point to Point Control
Control Method: Semi-Closed Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools

Product Description

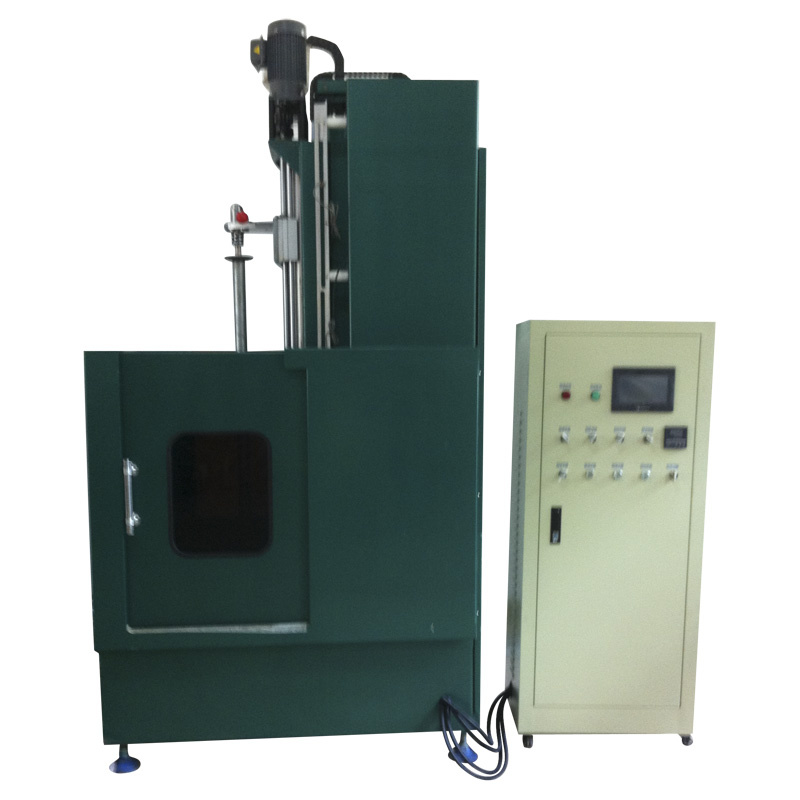

High Frequency Induction Hardening Machine Tool(GY-CNC1000)

CNC Hardening Machine Tool GY-CNC1000 Technical parameter:

Number of work position:1
Max. length for machining workpiece:1000mm
Max. hardening length:1000mm
The range of revolving speed:60-450r/min
Max. workpiece weight:80kg
hardening feed speed:6-3000mm/min
workpiece celerity:6000mm/min
Max. workpiece diameter:450mm
Numerical control system control precision:0.001mm
Operate way:auto or manual
Setting accuracy:0.03mm

Machine arrangment:
1.Ball bearing screw rod of  numerical control cutting tool,the whole customize,quality good, precision high;
2.Lead rail choose linear bearing, precision high,low friction,Long life,hard chrome on surface for prevent rusting;
3.Lifting Part balance weight by sprocket wheel and chain,counterweight is cast weight
4.Sealed water tank,don"t need infrastructure project;
Rotate driving:Korea LG transducer,home-make,Spindle rotate infinitely variable control;
Total motor power:2.0KW
Weight:approximately 0.8 ton
Hardening way:continuous scan hardening;timing hardening;subsection scan hardening
Hardening speed adjust:infinitely variable control
Rotational speed adjust:infinitely variable control
Cooling way:Hydrojet
Application: plate,gear,shaft




Founded in 2000, Dongguan Guangyuan Inverter Electronic Equipment Factory is a private high-tech factory. Our factory is located in Wanjiang District of Dongguan City in Zhujiang Delta, with convenient transportation near No. 107 national highway and Guangshen speedway.

We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.

Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.

Our factory has a wholesome distribution network. Our products are delivered to America, Europe and southwestern Asia areas. We also built up a lot of offices to provide prompt and quick service to our consumers.

At the beginning of our foundation, we advocated "work with honest and credit, service for ever". This slogan has deeply footed in the culture of our factory, becoming the soul of development and management. During the process of development, it is firmly believed that a wonderful after-sale service is the base stone for a company' S existing. Therefore, our factory takes the thought of "creating values for costumers" as the core of our managing strategies.

Chinese companies are facing the competition and challenge from the whole globe. Our factory will use advanced technology to provide better after-sale service and to find a proper position in the international market. We will hold the spirit of more professional, advanced and perseverant to pursue the wide application of our products in the market. We will also pursue the co-development and advancement with our suppliers and consumers relying on professional technology and good cooperation efforts.
