| Price: | US $ 1/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | MD-101APLX |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | CE |
| Certification: | ISO13485 |

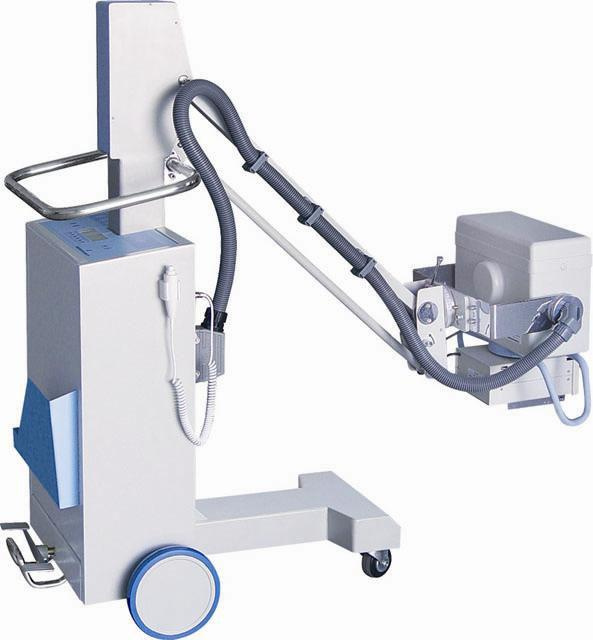

| Type: | X Ray Equipment |
| Classification: | Imaging Diagnostic Equipment |
| Group: | All |
| Specifications |
| Power Output : 3.5KW Frequency : 40KHz X-Ray Tube : Fixed anode focus : 1.5 Tube Voltage : 40~110KV (interval 1KV) Tube Current : 40~49KV 63mA 1~125 mAs 50~59KV 55mA 1~110 mAs 60~69KV 45mA 1~90 mAs 70~79KV 40mA 1~80 mAs 80~89KV 36mA 1~71 mAs 90~99KV 32mA 1~63 mAs 100~110KV 20mA 1~40 mAs mAs : 1.0~125 mAs (43 steps) Power Supply : 220V±10 50Hz inner-resistance≤1.0Ω Operation Method : Wire/Wireless control Packing Details : 1240mm×900mm×1460mm N.W. 150kgs G.W.210kgs |
| Features |
| 1. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures. 2. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose. 3. With kV, mAs two button adjustment, LCD display, multifunction of safety guard. 4. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation. 5. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator. 6. With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph. |
