High Frequency Online UPS for Home Appliances, 20kVA Three Phase with DC Cold Start
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

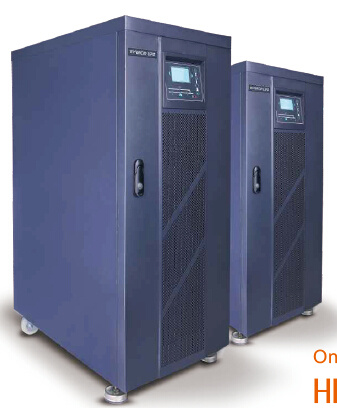

High frequency online ups HF33 series 3 in 3 out 20-100kva Main features:>>Fully DSP controlled>> The 6th generation IGBT inverting technology>> Input power factor>0.99>> System efficiency>94%>> Wide input voltage tolerance(208-478Vac)>>Wide input frequency range(40-70Hz)>> Digital circulation current control, reliably parallel up to 8 UPS directly>> Common or separate battery>> highly load adaptive, superior overload and short circuit capacity>> Intelligent self diagnose, large capacity information storage memory>> Intelligent battery management to prolong battery life>> Programmable battery voltage>> DC cold start>> LEC+large LCD with abundant information provision>> Multiple monitoring methods, standard RS232/RS485,optional SNMP/MODBUS/dry contact Options>> Dry contact card>>SNMP card>>MODBUS card>> Parallel card>> Battery temperature sensor>> Output isolation transformer Product descriptionHF33 series 20-100kva are fully DSP controlled high frequency online double conversion UPS, which adopt reliable large power IGBT and SCR devices. HF33 series integrate digital control, information technology, network connectivity and offer pure sine wave output which features high stability, high reliability and high efficiency. Application:Small to mid size data centerNetwork management centerEnterprise server roomTechnical Specifications| Model | HF3320 | JF3330 | HF3340 | HF3360 | HF3380 | HF33100 |
| Capacity(KVA/KW) | 20/16 | 30/24 | 40/32 | 60/48 | 80/64 | 100/80 |
| Input |
| Mains Input | Nominal volt
.(Vac) | 380 |
Volt. Range
(Vac) | 208-478 |
| Phase | Three phase five wire(3L+N+PE) |
| Freq.range(Hz) | 40-70 |
| Input PF | >0.99 |
| Bypass Input | Nominal volt.(Vac) | 380 |
| Volt.range(Vac) | +10%,+15%;-10%,-15%(setting) |
| Phase | Three phase five wire(3L+N+PE) |
| Bypass tracking(Hz) | ±4 |
| Output |
| Voltage(Vac) | 346/360/380/400/415(setting) |
| Power factor | 0.8 |
| Frequency(Hz) | Normal mode: synchronizing with AC input,battery mode: 50/60Hz |
| Wave form | THDV<2%(linear load);THDV<4%(nonlinear load); |
| Transfer time(ms) | 0 |
| System efficiency | >=93% | >=94% |
| Overload | 105%-110%: 60min,110%-125%: 10min,125%-150%:1min, ,>150%:0.5s |
| Battery |
| Battery voltage(Vdc) | 336/360/384(28-32pcs setting) |
| Environment |
| OperatingTemp.(ºC) | -10 to 40 |
| Storage Temp.(ºC) | -25 to 55(battery excluded) |
| Humidity range | 0-95%( no condensing) |
| Operating altitude(m) | <1500 |
| Noise (dB) | <50 | <60 | <65 |
| Other characteristic |
| Alarm function | Overload, main fault, UPS fault,battery voltage low,etc |
| Protection function | Short circuit, overload, overheat, battery voltage low,output voltage low & high,fan fault |
| Communication interface | Standard: RS232/RS485/EPO
Optional:SNMP/MODBUS/Dry contact |
| Physical |
| Dimension(W*D*H mm) | 420*640*956 | 470*713*1160 | 600*745*1250 |
| Net Weight(kg) | 80 | 120 | 120 | 230 | 250 | 270 |
| Standards | YD/T1095-2008 |
| Prod Model: |
HF3320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Everon |

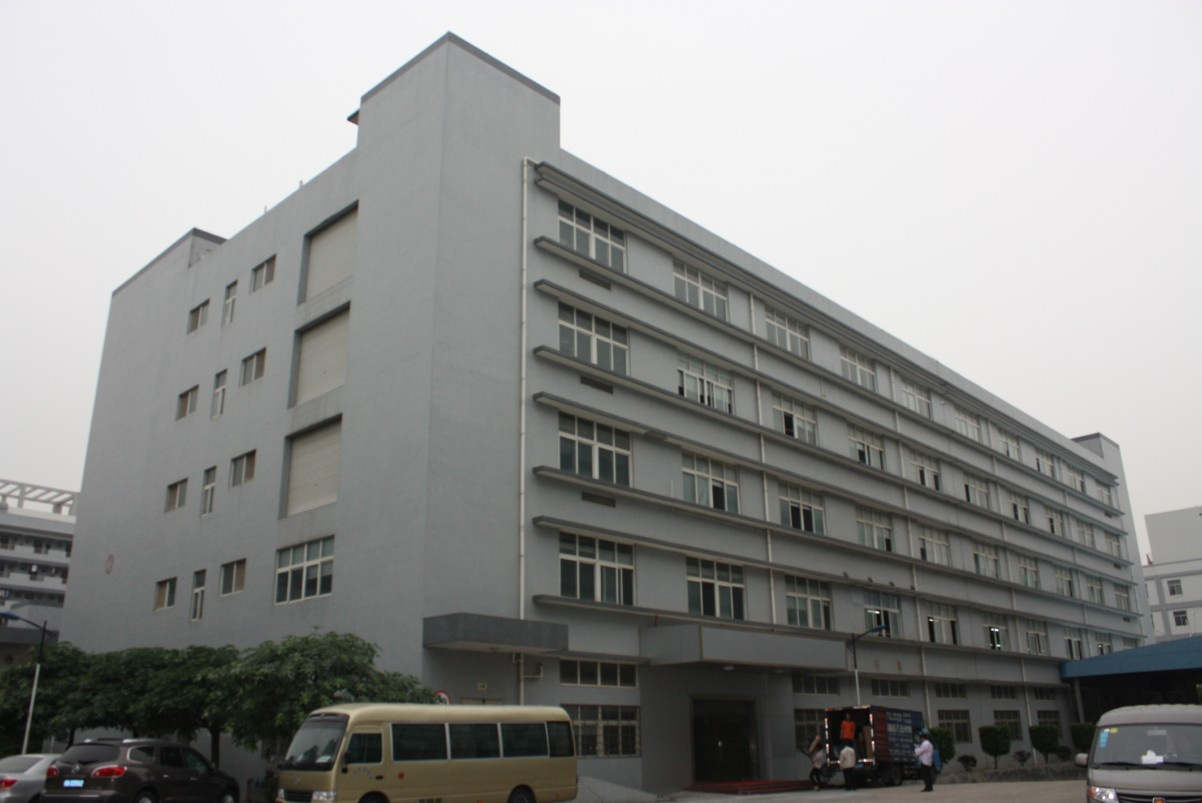

Founded in 2003, Shenzhen JingFuYuan Tech. Co., Ltd. (Abbr. JFY) is a professional UPS, Solar Inverter, Hybrid Power System and Telecom Power Supply manufacturer. Awarded as National High-tech Enterprise and certified to ISO9001: 2008 international quality system, JFY has 16000 m2 of production plants and R&D laboratories with more than 100 professional engineers in Shenzhen headquarter, more than 20 service centers in domestic and overseas areas. As a leading supplier with best products and services, JFY always offers customers the high cost-effective products and integrated energy solutions with plentiful design and production experiences. The products cover a wide range of Solar Inverters, UPS, Telecom Power Supply, Hybrid Power System, etc. Our products have been sold to more than 50 countries and areas. Their stable operation and excellent performance have been universally recognized by users across the world.
