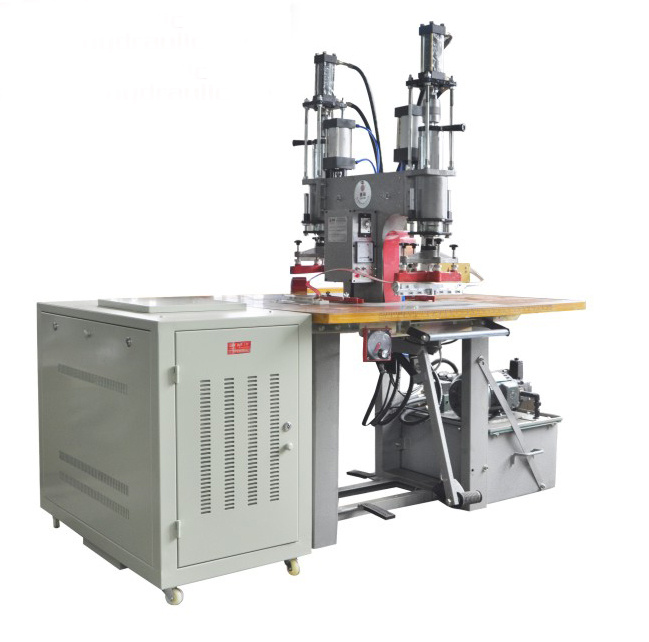

High frequency welding machine for photo album, business card inside page welding
Specification:
| Item no. | ZT-8GT-11 | ZT-8GT-12 | ZT-8GT-13 |
| H . F output | 5kw | 8kw | 10kw |
| Power Input | 8.5KVA | 15KVA |
| 15KVA |
| Rectifier | Silicon Rectifier |
| Press Strokes(mm) | 40/60/80mm Adjustable 3 gears |
| Max Gap of Electrodes(mm) | 70mm |
| Oscillation Frequency | 27.12MHZ |
| Operation mode | Pedal/ Oil pressure Air pressure |
| Lower electrode size | 350x490mm/350x680mm |
| Max Pressure(kg) | (Oil pressure) 1200kgs ( Air pressure)500kgs |
| Net Weight(kg) | 470kgs | 550kgs | 530kgs |
| Gross Weight(kg) | 520kgs | 600kgs | 580kgs |
| Packing size(mm) | 1970L x 1140W x 1970H |
| After-Sales Service Provided | Engineers Available to Service Machinery Overseas |
| Delivery time | 15-20 days |
| MOQ | 3 pcs |
| Payment term | 30%T/T after the PI confirmed, balance before shipment |
The manufacturer reserves the right to modify the design,specificationgs mehanismes etc,without notice.
Application range:
Custume embossing, Sand beach chair, Sunshande board, Sand beach bag, Vehicle cushion, Rain canvas, Trademark, Nameplate, Stationery, Portfolio, Handbag, Shoes.
Feature:
ZT Brand
High frequency output
High frequency
Air pressure+ hydralic
Heating
Cutting
Arc Supperssor:
When sparks occur, the special electronic circuit on this machine works automatically and cuts high frequency immediately to suppress arcs and minimize.
Jamming Prevention Device:
Equipped with frequency stabillizer and high frequency magnetic leakage suppressor. This device prevents leakage of electromagnetic radiation to avoid jamming other electrical instruments such as televisions and radios, etc.
Safety Device:
When the current exceeds its limits, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.
High Power Welder:
Using a special designed mechanism, the maximum pressure of foot pedal can reach up 400kgs so as to meet most operating conditons. The high quality components make these machines work very smoothly and precisely.
Easily Adjustable Tuner
Output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrial circuits have cut down required welding tie consderably to raise the machine productivity.
Oil Pressure Pressure Installation:
The machine dispose pressure adding installation of oil pressure too. It can regulate the pressure reducing valve of oil pressure according to use condition(0k-45kgs), and it is good for the operating worker to redue working load and improve the quality of H voltage product. The control parts of oil pressure electrical equipment don't provide H circle oil pressure in succession turning and artificial controling. To change the operating mode, it can change the voltage processing handicraft greatly.
Quanzhou Zhongtai Machinery Co., Ltd is loaded in Jinjiang, the 'Shoes and Clothing' capital" in China. Our company is a professional automatic and semiautomatic shoe making machine enterprise that integrates the development, production and sale.
Our company has strong technology and senior R&D persons, and we have advanced fine machining equipment, exquisite processing technology and perfect testing methods.
Our company is in strict accordance with our quality system, guarantees the quality of our products, and perfect after-sales service to make our company develop quickly.
We can supply our clients including the machinery, operation technique and row materials. Our main products: KPU shoes making machine, high frequency welding machine, laminating machine, press machine, laser engraving machine, ultrasonic spot welding machine, automatic insoles for transfer printing.
With complete technical service system, we will be responsible for equipment installation, commissioning and technical training, to provide warm, considerate and timely service.
