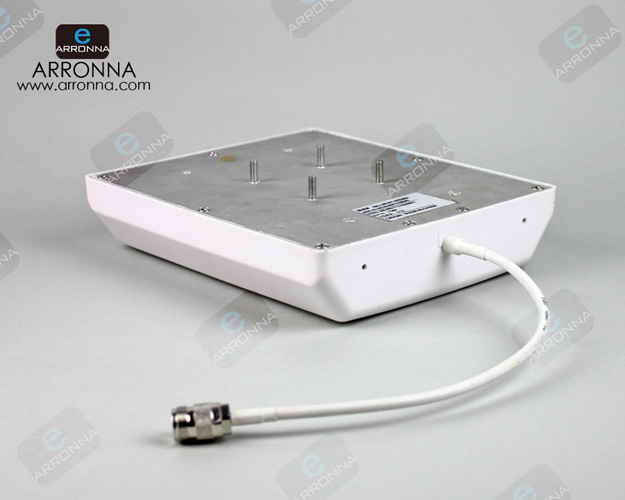

High Gain Tablet PC WiFi Antenna, WiFi 2.4G Antenna (ARW-2400-2700-10)
Product Specifications
| Prod Model: |
ARW-2400-2700-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Panel Antenna |
| Frequency: |
2400-2700MHz Antenna |
| Gain: |
10dBi Antenna |
| Usage: |
Communication Antenna |
| Directionality: |
Omnidirectional Antenna |
| Operating Wavelength: |
Microwave |
| VSWR: |
<1.5 |
| Material: |
Steel Plate |
Product Description
Frequency Range 2400-2700MHz
VSWR ≤ 1.5
Input Impedance 50Ω
Gain 10dBi
Dimension 140mm× 120mm× 40mm
Weight 0.6kg
|
Electrical Specifications |
|
Model No |
ARW-2400-2700-10 |
|
Frequency Range |
2400-2700MHz |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Gain |
10dBi |
|
PolARization |
Vertical |
|
Horizontal Plane ΘHP |
110°±8° |
|
Vertical Plane ΘHP |
45°±2° |
|
BeAR Electrical Downtilt |
0° |
|
Front to Back Ratio |
≥15dB |
|
Maximum Input Power |
50W |
|
Connector Type |
N –Female |
|
Intermodulation IM3 |
≤-107dBm |
|
Lightning Protection |
DC ground |
|
Mechanical Specifications |
|
Dimension |
140mm×120mm×40mm |
|
Weight |
0.6kg |
|
Rated Wind Velocity |
210km/h |
|
Radome material |
UV protected ABS |
|
DiAReter of installation pole |
φ30-φ54mm |
|
Working Temperature |
-40~+60ºC |
Shenzhen Arronna Telecom Co., Ltd. was founded in 2007, mainly offer antenna OEM & ODM service for clients, mainly sector antenna, panel antenna, yagi antenna, fiberglass omni antenna at MIMO / LTE / WIMAX / WiFi / 3G / DECT / WLAN/ CDMA antennas. Shenzhen Arronna Antennas Co., Limited is an integrated high-tech company owning strong ability on R&D, production and selling. Welcome you to learn more about us.
Now ARRONNA owns more than 3, 000 square meters production area, about 80 staff (tech dept 6people, QC 6, the 40% staff has college background), 6 production line, more than 100 types of products covering frequency from 88MHz to 5.8GHz and these products has covered the following field such as WiFi / WIMAX wireless communication system, wireless data transmitting system, global position system, digital TV system and civil use. Now our products already work with 3G Telecom System, WiFi/WiMAX Telecom System, HUAWEI CPE and successfully worked with China MOBILE, GLOBE TELECOM and defeated many competitors to enter EU market, South-east Asia market and Asian Market.
Since founded, ARRONNA has developed fast by the clients' support! We strictly follow ISO9001: 2008 quality system to improve the architect and management style, and also use ISO14001: 2004 system to regulate and arrange production process. If we promise, you have my word! That is ARRONNA's motto! Hereby, ARRONNA sincerely welcome you visit our factory and give us your precious opinion, ARRONNA look forward to working with you soon!
