Yueqing Haixin Electronic Science Technology Co., Ltd. >> High Grade Mounted Analog Power Factor Meter

High Grade Mounted Analog Power Factor Meter

Name: High Grade Mounted Analog Power Factor Meter
Brand: china-manufacturer-directory.com
SKU: 757145055
Availability: InStock
Rating: 4.7 (68 reviews)

Supplier:	Yueqing Haixin Electronic Science Technology Co., Ltd.
Price:	US $ 35.8/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HXDZ-59
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Size:	7272,8080,9696,120120
Display:	Digital
Installation:	Direct Connected
Usage:	Multi-rate Watt-hour Meters
Electric Equipment:	Single-phase
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Power Meter

Product Description

I. Product Introduction

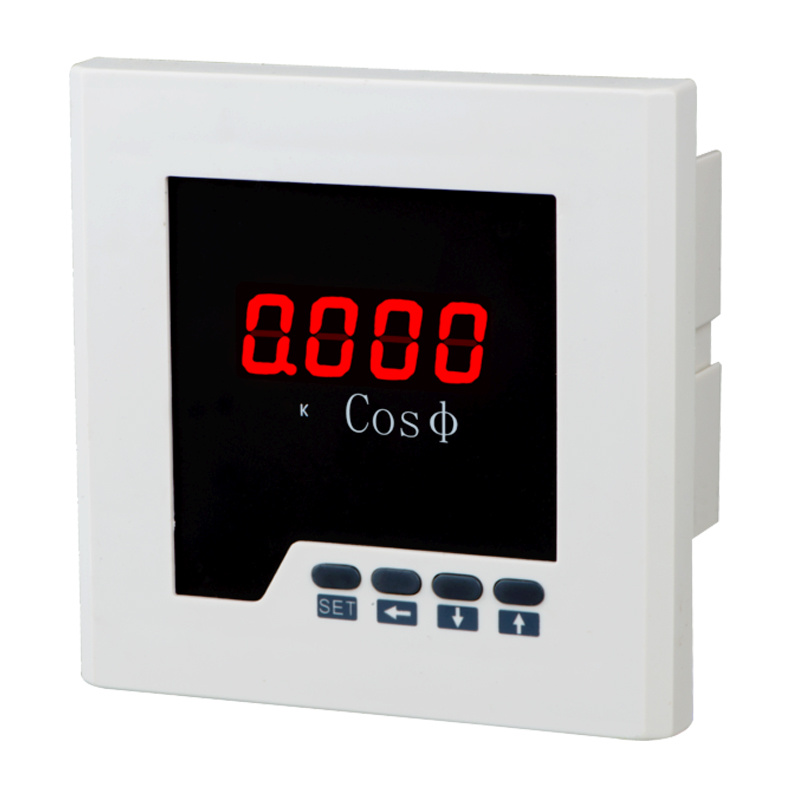

A digital power factor meter can be used to measure a single-phase or three-phase power factor, and is a smart meter with the functions of programmable measurement, display, alarm, digital communication and analog transmitting output and so on, and is widely used in substation automation, distribution automation, intelligent buildings, automatic production lines, test benches, etc.
4-digit high red LED display; one-way or two-way relay alarm output allows the upper or lower limit alarm; RS-485 digital communication interface adopting the international standard MODBUS-RTU communication protocol allows networking with a variety of PLC, HMI and configuration software; analog (DC 4mA to 20mA) transmitting output is also optional.

II. Technical Parameters

Parameters			Performance
Signal Input	Voltage	Range	AC57.7V/AC100V/AC220V/450V, etc.
		Overload	Continuous: 1.2 times; Instantaneous: 2 times/1S
		Power Consumption	<1VA
		Impedance	>380KΩ
	Current	Range	AC10A/5A/1A
		Overload	Continuous: 1.2 times; Instantaneous: 10 times/5S
		Power Consumption	<1VA
		Impedance	<20mΩ
	Frequency		45-65HZ
Auxiliary Power Supply			Linear Power Supply: AC 220V±5%; Power Consumption<3VA Switching Power Supply: AC/DC 85V to 265V; Power Consumption<3VA
Relay Output			One-Way or Two-way Output, Contact Capacity: 1A/220VAC; 1A/24VDC
Analog Output			DC 0mA to 20mA, DC 4mA to 20mA, DC 0V to 5V, DC 1V to 5V, DC 0V to 10V, etc.
RS485 Communication			RS485 Communication Interface, Physical Layer Isolation, complying with the international standard MODBUS-RTU protocol. Communication Baud Rate: 4800 and 9600, Data Format: N81
Accuracy Grade			Grade 0.5
Display Mode			Digital Display: 4-digit high red LED nixie tube
Environment			Operating temperature: -10-55ºC; Storage Temperature: -20-75ºC
Safety			Insulation: signal, power supply, output terminal resistance to cabinet>5MΩ Withstand Voltage: signal input, power supply, output-output>AC2KV

III. Meter Outline Dimensions and Hole Size
3.1 Meter Outline Dimensions and Hole Size

Outline Code	Outline Dimensions (mm)	Hole Size (mm)	Depth (mm)
5	96×48	91×44	85
A	72×72	67×67	85
3	80×80	76×76	85
9	96×96	91×91	85
2	120×120	111×111	85
