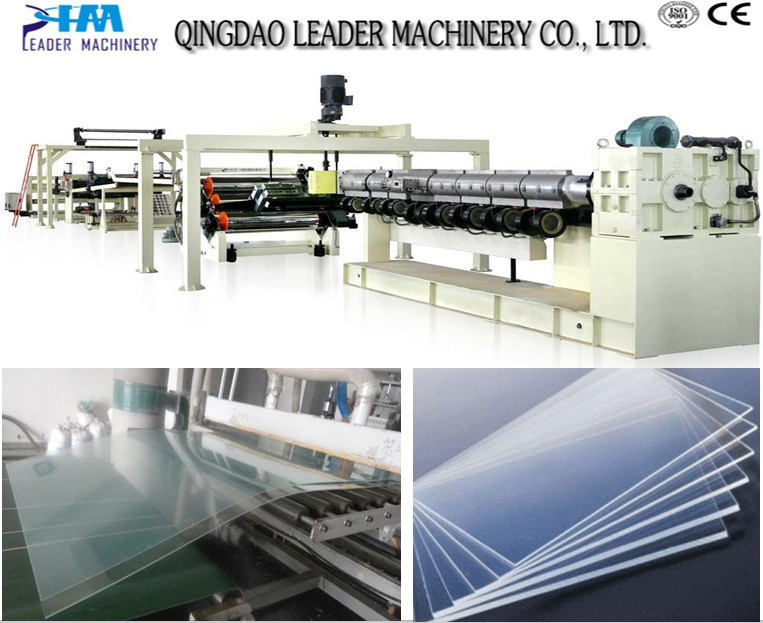

High Impact Resistance 2100mm Width PMMA Plastic Acrylic Sheet Making Machinery

Pmma sheet extrusion lines machine for bathtub/sanitary ware sheet


PART 1 INTRODUCTION
This line is used to produce pmma bathtub/sanitary ware sheet. This kind of sheet has such characteristics as high intensity, good temperature resistance, good rot proof, ect. It can be produced with additives to different requirements such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting etc.

PART 2 APPLICATIONS

Compound by pmma-abs co-extrusion, it is very glossy with the property of pmma sheet and it has the advantages of resistance to impact as abs, which is widely used on bathtub, shower room, steam room etc,

PART 3 SPECIFICATIONS
Thickness: 1-8mm, width: 1220-2100mm

PART 4: THIS LINE CONSISTS OF:
1.1 LSJ120/33 Single Screw Extruder 1 set
1.2 SJ-65/33 Co-extruder 1 set
1.3 Hydraulic filter exchanging unit 1 set
1.4 melting pump 1 set
1.5T-type Co-extrusion Die Head 1 set
1.6Three-roller Calender 1 set
1.7 Cooling Frame & Edge Cutting Device 1 set
1.8 Slitting unit 1 set
1.9 Haul-off Machine 1 set
1.10 Guillotine 1 set
1.11 Winding machine 1 set
1.12 Stacker 1 set

PART 5 DELIVERY, PAYMENT AND AFTER SALE SERVICE:

1. Delivery time: 90 days after receiving the deposit
2. Payment terms: 40% for the prepayment by T/T and 60% for the downpayment by T/T or irrevocable L/C at sight can be available,
3. After sale service:
Guaranteed time: 18 months for the machenical parts, 12 months for the eletrical parts
We'll send our 1-2 engineers to go to your factory to install and test the machines and also train their workers.

Extruder Model	LMSB-90/33	LMSB-100/33	LMSB-120/33	LMS-100/65	LMSB-120/65
Sheet Width	300-610mm	500-950mm	1000-1500mm	500-950mm	1000-1500mm
Sheet Thickness	0.15-1.4mm	0.15-1.4mm	0.15-2mm	0.25-1.4mm	0.25-1.4mm
Driving Motor	75KW	90KW	132KW	90KW,75KW	132KW, 65KW
Line Speed	25m/min	25m/min	28m/min	28m/min	28m/min
Capacity	180kg/h	300kg/h	550kg/h	450kg/h	650kg/h
