Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
220V 50/60Hz |
Certification: |
CE |
Warranty: |
One Year |
After-Sales Service Provided: |
Overseas Service Center Available |
Cutting Speed: |
0-10000mm/Min |
Torch Lifting Distance (Z): |
≤120mm |
Working Precision: |
± 0.2 Mm / Meter |
Flame (Gas) Cutting Thickness: |
Piercing Capacity: 5 - 60 Mm Edge Start: 5 - 12 |
Oxygen Pressure: |
Oxygen Gas Max 0.8mpa |
Gas Pressure: |
Acetylene Gas or Propane Gas Max 0.1mpa |
Control Mode: |
CNC |
Cutting Mode: |
Flame |
Type: |
Plasma |
Product Description

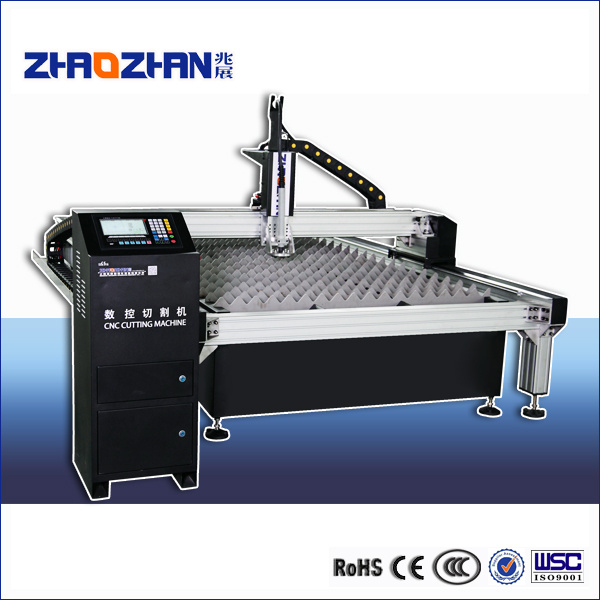

ALUMINUM STRUCTURE TABLE STYLE CNC FLAME PLASMA CUTTING MACHINE
CNCUT-N-SE(ST) is a new style of aluminum structure table style CNC flame plasma cutting machine. CNC flame and plasma cutting machine for cutting thin and medium thick plate. It is designed and produced by Shanghai ZHAOZHAN Automation Equipment Co., Ltd. And the design patent is owned by our company. It is integrated with high speed, high precision, and miniaturization, and the structure of the machine is made from special industrial aluminum profile, which is separated from the cutting table. With the feature of easy installation, human-computer interface, easy operation, stable work, elegant appearance, they can be used to cut almost all kinds of metal plate automatically.
1) Using highly-precise linear guides, dual drive. The machine works noiselessly with high speed and high precision.
2) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.
3) Have 7 inch color LCD display and operate panel, and read program and software upgrade by USB flash driver.
4) Have Chinese, English, French, Portuguese, Russian and other languages.
5) Have the function of automatically memorizing and restoring when power off.
6) Have the function of wireless remote control which can control cutting at any place around the control desk.
7) Have many devices designed for fixing plate. It makes thin plate cutting more precision.
8) Can choose automatic arc voltage torch height control or automatic mechanical floating torch height device.
9) Can effectively avoid high frequency interference and make cutting stable and safe.
Name |
ALUMINUM STRUCTURE TABLE STYLE CNC FLAME PLASMA CUTTING MACHINE |
Model |
CNCUT-1325N-ST |
CNCUT-1530N-ST |
CNCUT-2030N-ST |
CNCUT-1325N-SE |
CNCUT-1530N-SE |
CNCUT-2030N-SE |
Input Power |
Single Phase AC 220V |
Approximately 1200W |
Approximately 1500W |
Cutting Modes |
Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting |
Transmission Style |
Rack And Gear |
Motor Style |
Step Motors Dual Drive |
Servo Motors Dual Drive |
Tracks space between |
1450mm |
1650mm |
2150mm |
1450mm |
1650mm |
2150mm |
Track length |
3200mm |
3700mm |
3700mm |
3200mm |
3700mm |
3700mm |
Track length (effective cutting length Y axis) can be customized for extending cutting length |
Effective Cutting Range for each torch X*Y |
1300*2500mm |
1500*3000mm |
2000*3000mm |
1300*2500mm |
1500*3000mm |
2000*3000mm |
Tool Quantity |
One Tool |
One Tool |
One Tool |
One Tool |
One Tool |
One Tool |
Torch Height Control Style |
Flame THC: Optional / Plasma THC: Optional |
One Tool just can support one Flame THC or one Plasma THC |
Max. Cutting Torch Quantity |
2 pieces |
2 pieces |
2 pieces |
2 pieces |
2 pieces |
2 pieces |
Optional Torch Style (Plasma: P Flame: F) |
P / F / P+F |
P / F / P+F |
P / F / P+F |
P / F / P+F |
P / F / P+F |
P / F / P+F |
Cutting Speed |
0-4000mm/min |
0-10000mm/min |
Torch Lifting Distance (Z) |
≤ 120mm |
Working Precision |
± 0.2 mm / meter |
Flame (Gas) Cutting Thickness |
Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm |
Plasma Cutting Thickness |
Depends on the cutting capacity of the Plasma Generator |
Flame auto igniter |
Including Flame device |
Gas Pressure |
Acetylene Gas or Propane Gas Max 0.1Mpa |
Oxygen Pressure |
Oxygen Gas Max 0.8Mpa |
Cutting Table |
Seperated with main machine. Drawer designed for collection work piece cutting table will be optional supplied. We can supply customize special cutting table for user. |
Environmental protection equipment |
can supplied as custom demand |
