Product Specifications
| Prod Model: |
LIM-308 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Manual Routine Laboratory Microscope |
| Model No.: |
Lim-308 |
| Objective: |
Bright & Dark Field |
| Objective Lens: |
5X, 10X, 20X, 50X |
| Osram Halogen Bulb: |
12V/50W |
| Filter: |
Green, Blue and Yellow |
| Polarizer And Analyzer: |
Yes |
| Anti-Dust Cover: |
Yes |
| Eyepiece: |
Wf10X/20 |
| Movable Stage Size: |
242*200mm |
| Type: |
Metallographic |
| Number Of Cylinder: |
≥Three |
| Mobility: |
Desktop |
| Shape: |
Triangular Prism |
| Principle: |
Optics |
| Magnification: |
50X-2000X |
| Kind Of Light Source: |
Halogen Lamp or LED |
| Principle Of Optics: |
Kohler Illumination |
Product Description

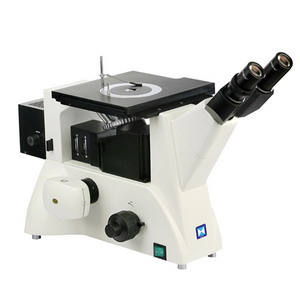

High Level Manual Routine Laboratory Inverted Metallurgical Microscope (LIM-308)Usage:Inverted bright & dark field Metallurgical Microscope LIM-308 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature:1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
3) For bright and dark field observation
4) For Differential Interference contrast observation, DIC observation
Standard delivery:Main unit: 1pcs
5x, 10x, 20x, 50x bright & dark field objective lens: 1pc each
12V/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories:40x, 60x, 80x, 100x bright & dark field objective
DIC observation unit
0.5x, 1x, C-mount camera adapter
5M Pixel digital CCD camera
Analysis software
Examine software
Specification| Eyepiece | WF10X/20 |
| Objective lens | 5x, 10x, 20x, 50x |
| Mechanical movable stage | Size: 242*200mm
Travel: 30mm*30mm |
| Interpupillary distance | 53mm-75mm |
| Binocular tube | Inclined 45º. |
| Diopter adjustment | ±5 diopter |
| Illumination | 12V/50W halogen bulb |
| Power supply | 110V/220V |
