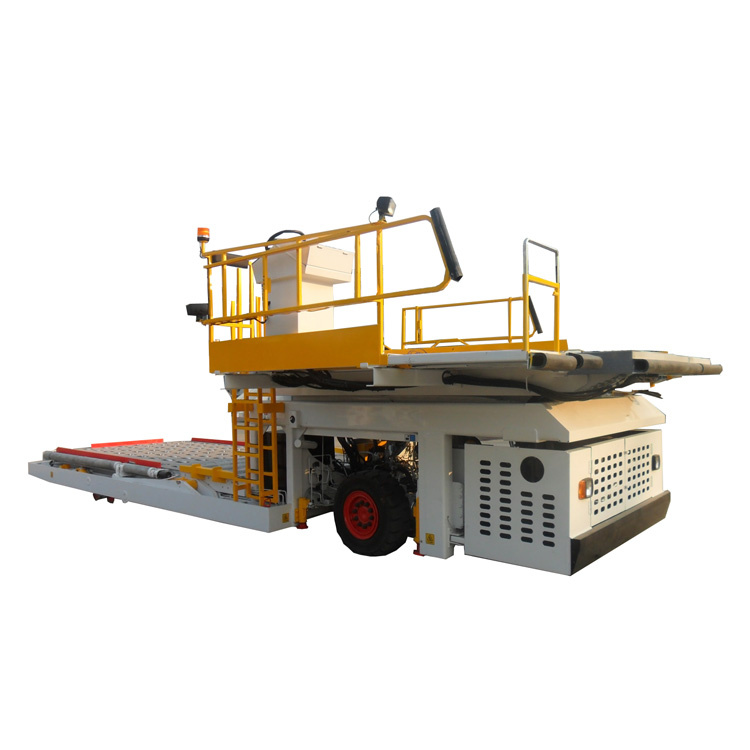

High Loader/ Cargo Loader
Product Specifications
| Prod Model: |
L700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Dimension: |
9660X3850X2800mm |
| Gross Vehicle Weight: |
18000kg |
| Minimum Ground Clearance: |
90mm |
| Minimum Turning Radius: |
15500mm |
| Wheelbase: |
4445/405mm |
| Wheeltrack: |
2100/2720mm |
| Maximum Speed: |
15km/H |
| Main Platform Dimension: |
5080X2490mm |
| Main Platform Conveying Width: |
2500mm |
| Main Platform Maximum Load: |
7000kg |
| Condition: |
New |
| Type: |
Cargo Handling Equipment |
| Part: |
Cargo Handling Equipment |
Product Description
11. The minimum height of the main platform for lifting: 480mm
12. The maximum height of main platform for lifting: 3600mm
13. Main platform un-load lifting speed: 7.5m/min
14. Main platform vertical transmission speed: 17-18 m/min
15. Bridge platform dimension: 4080X2450mm
16. Bridge platform transfer-length: 4275mm
17. Bridge platform transfer-width: 2500mm
18. Bridge platform minimum height: 1875mm
19. Bridge platform lifting maximum height 3600mm
20. Bridge platform longitudinal transmission speed: 17-18 m/min
21.4kg fire extinguisher
22. IFM module\display\controller
23. Chassis: Special-design
24. Opening cab
Daqin International Machinery & Equipment Trade Co., Ltd. (DIMET) is a new style international trading company. We DIMET cooperated with Chinese famous manufactures such as DAIYANG, TONLY, AEROTECH, HF, TECHKING, SHACMAN, ZOOMLION and XCMG, and offers a wide range of Equipment including Semi-trailer, Heavy duty truck, G. S. E (airport ground support equipment), Mining dump, Wheelloader, Moto Grader and so on. The company's headquarter is in the global financial and trading center--Hong Kong, while it has four representative offices in Xi'an, Tai'an, Tianjin, Shenzhen in mainland of China. Relying on stable and powerful large Chinese enterprise resource background, Dimet facing to the global market, engages in Chinese machinery and equipment industry promoting, and services the customers around the world.
What special?
1. Providing equipment with factory price and service. You just need pay the factory price without any added fee, while the after-sale service you enjoyed would provided by Manufacture directly.
2. Easy Buy. After cooperated with us, you no need cost a long time and capital to flight to China and buy equipment, what you need to do is sending us an email with your budget and requirement, then we could adapt goods from our partner by our experiences and provide you a nice purchase solution.
3. Supervision. We could assist you supervising each step during goods producing, and reporting you with site photos.
4. Claim. Once your equipment break down by a problem for quality reason, you no need invovled in providing a lot evidence documents and chasing with manufacture day and day. Instead, we could be your agent to deal claimant with Manufactures. Save your time!
What we have?
DIMET main products: Semi-trailers (including: Container flat bed trailer, Low bed trailer, lorry trailer, etc. ), airport ground support equipment (including: Aircraft tow tractor, high loader, passenger steps, cateringtrucks, water trucks, lavatory trucks, ground power unit, luggage conveyor, luggage trailer), heavy duty trucks (including: Dump truck, tractor, truck, cement mixer truck, oil tank truck, mining dump trucks and a variety of special vehicles), spare parts (including: Parts of truck, construction equipment and so on, such as engine assembly, etc. ), construction machinery (including: Asphalt mixing plant, concrete mixing plant, concrete pump truck, car pump, stationary pump, placing boom, excavator, bulldozers, etc. ), electrical equipment (including: Generator, mobile substation, emergency power vehicles, etc. ).
