Product Specifications
| Prod Model: |
DFWD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apply: |
Wood Chips, Leaves, Coal Briquettes, Charcoal Briq |
| Warranty: |
12 Months |
| Certificate: |
3c, CE, ISO |
| Structure: |
Air Flow Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Combined |
Product Description

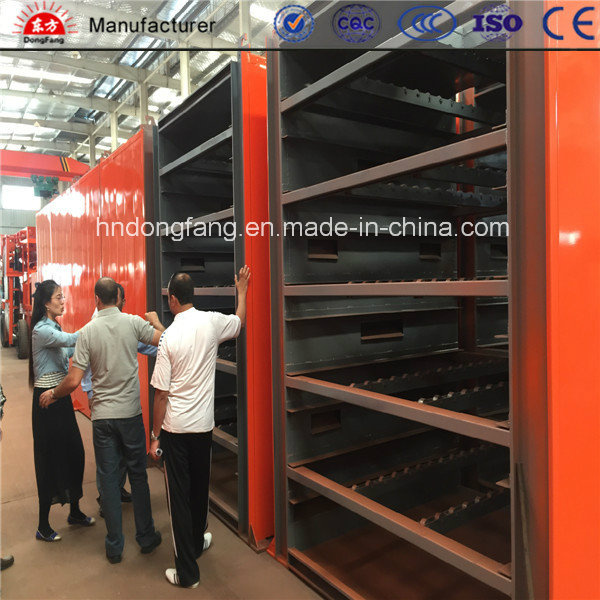

high moisture raw material mesh belt dryer/conveyor dryer/mesh belt drying machine
FAQ about charcoal ball mesh belt dryer/charcoal/briquette drying machine
1.What kind of material can be dried by mesh belt dryer?
Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2.What kind of fuel can be used with the mesh belt dryer?
Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3.What's the drying temperature of the mesh belt dryer?
Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.
4.How long will the briquettes stay in the mesh belt dryer?
Answer:Normally the drying time will be about 50-120 minutes.
5.Is the belt speed adjustable?
Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
Features of belt dryer/mesh belt dryer/ charcoal briquette mesh belt dryer :
1. Shape: It mainly through the mesh conveyor to make the charcoal briquette forward, so it can keep the raw material shape that wont damage.
2. No fire risk: accurate control of temperature guarantee the safe of your goods.Also the temperature inside the charcoal briquette drying machine is adjusted.
3. Various heat sources: coal, wood, electric can be used for energy
4. Alarm device: each machine is equipped with an alarm in case of accident
5. The coal briquette drying machine have excellent drying effect: this machine can dry your goods totally
6. Customized: we can design different types according to your requirement, because different country the voltage, so we can customize the motor for you.
Mesh belt dryer technical parameter:
Model |
DFWD6 |
DFWD8 |
DFWD10 |
DFWD12 |
DFWD16 |
DFWD20 |
DFD24 |
DFWD30 |
Width of mesh belt(mm) |
600 |
800 |
1000 |
1200 |
1600 |
2000 |
2400 |
3000 |
Length of drying section(m) |
6-12 |
6-12 |
6-16 |
8-16 |
8-22 |
10-26 |
12-30 |
12-40 |
Length of feeding section(m) |
1 |
1 |
1 |
1 |
1 |
1.5 |
1.5 |
2 |
Length of transmitting section(m) |
1 |
1 |
1 |
1 |
1 |
1.5 |
1.5 |
2 |
Drying area(m2) |
3.6-36 |
4.8-48 |
6-80 |
7.2-96 |
12.8-105.6 |
20-260 |
28.8-360 |
36-600 |
Layers NO. |
1-5 |
Interlamellar spacing (mm) |
400-600 |
Carrying capacity |
90-200 Kg/m2 |
Operation temperature (C°) |
carbon steel≤400 C°,stainless steel≤600 C° |
Drying strength((kgH2O/h) |
5-20kg H2O/m2.h |
Heat source |
hot wind,electricity,steam |
Running speed |
0.06-1m/min |
Transmission powder(kw) |
1.1-2.2 |
1.1-2.2 |
1.1-2.2 |
1.1-3 |
1.5-3 |
1.5-4 |
3-7.5 |
5-11 |
Matching equipment |
conveying equipment,air heating furnace,dust removing equipment,draught fan |
Applications of the belt dryer/mesh belt dryer/conveyor mesh belt dryer
briquettes production line
pellet production line
other solid / powder material drying production line
Working principle of mesh belt dryer for drying briquettes :
1.The raw material was transported into the feeder and put on the mesh-belt uniformly. Then the transmission device will carry the mesh-belt to keep moving forward.
2.In the mesh-belt, there are some heater strips. When the fruit mesh belt dryer the power, the heater strips will produce great heat to dry the raw material.
3.The multi-layers coal briquettes mesh belt is composed of several unit. Each unit is interlinked, so that the hot air can be successively used. And it can improve the drying effect.
4.The hot air alway around the surface of the raw material and turn water into water vapor, then the raw material complete the drying process.
5.At the top of the mesh belt dryer for drying briquettes , there some small blowers. The small blowers will take the water vapor out and left the dried raw material.
Service for Dongfang belt dryer/mesh belt dryer/conveyor mesh belt dryer
Delivery time: within 20 days after received your 40% down payment.
Warranty: One Year (Calculated from the goods arrived the destination port.)
If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.
We can send our engineer to provide the installation and trial run in your place.
But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
We insist on "Quality is the soul of company" and take customers as our god,
owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.
We sincerely welcome you to visit our factory and discuss the feasibility of cooperation.
If you are interested in our high moisture raw material mesh belt dryer/conveyor dryer/mesh belt drying machine ,please feel free to contact with us at any time
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
