Product Specifications
| Prod Model: |
DZL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Capacity: |
3-30 Tons/H |
| Power(W): |
8.25kw |
| Dimension(L*W*H): |
1780*1058*1550 |
| Fan Rotational Speed: |
4100r/Min |
| Air Pressure: |
1500 Water Column/Mm |
| Air Mass Flow: |
1000m3/H |
| Feed Pipe Diameter: |
150mm |
| Horizontal Maximum Transmission: |
50m |
| Max.Lift Head: |
8m |
| Material: |
Alloy/Carbon Steel |
| Voltage: |
280V |
Product Description

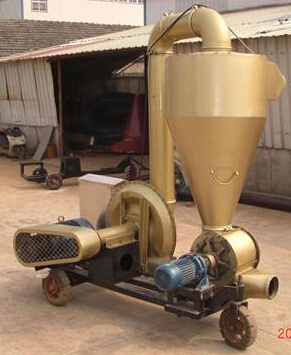

High output air conveyor used for convey grain
Introduction for discharging device particle and granule suction air conveyor:
QH series air conveyor, is a kind of advanced material handling machinery. Machine features flexible, fast and convenient assembly, after simple combination can be used to separate delivery, separate to send, or give mixing pumping and pressure. Horizontal, inclined and vertical transportation, such as rice, wheat, rice, corn, high of grain, barley malt, granular materials such as plastics and resin, suitable for grain, farm, station, wharf, grain and oil processing and brewing industry in storage or in the process of production of bulk, bulk transport, discharge, turn over the storehouse, crib, warehouse, the warehouse etc mechanical work.
Typical for 3-5TPH discharging device particle and granule suction air conveyor:
1, The operation mode is diversiform, have a single suction operation mode, single delivery operation mode mixing, suction pressure, can undertake choosing according to different customers and different requirements.
2, The machine features flexible, fast and convenient assembly, compact structure, complete function, the whole machine to give full consideration to the user requirements from the design.
3, equipment has convenient, quick, convenient, save people, save Labour, etc.
4, less dust pollution, convenient operation.
5, just put the pipeline on-demand distribution, can be horizontal, vertical, inclined, etc.
6, High pressure, long transmission distance, high head, small volume, low noise, low energy consumption.
7, C is rough for grain belt filter cleaning and dewatering.
|
Machine Model |
QH-3 |
QH-5 |
QH-10 |
QH-15 |
QH-20C |
|
Convey measure ( t/h) |
3 |
5 |
10 |
15 |
20 |
|
Power of Air Blower ( KW) |
5.5 |
7.5 |
11 |
15 |
22 |
|
Power of Close the wind machine ( KW) |
0.75 |
0.75 |
0.75 |
1.1 |
1.1 |
|
airflow velocity (m/s) |
26 |
24 |
24 |
25 |
25 |
|
Feed pipe diameter (mm) |
124 |
124 |
150 |
150 |
160 |
|
Pipe diameter (mm) |
70 |
100 |
124 |
150 |
160 |
|
Horizontal maximum transmission distance (m) |
20 |
30 |
50 |
70 |
120 |
|
Maximum distance (m) |
6.8 |
8.5 |
10 |
20 |
30 |
|
Max.lift head (m) |
5 |
5 |
8 |
12 |
18 |
|
T otal weight (KG) |
400 |
415 |
460 |
530 |
600 |
|
Dimension (length * width * height) mm |
1780*1050*1550 |
1780*1058*1550 |
1780*1058*1550 |
2080*1148*1800 |
2320*1320*2720 |
